Description

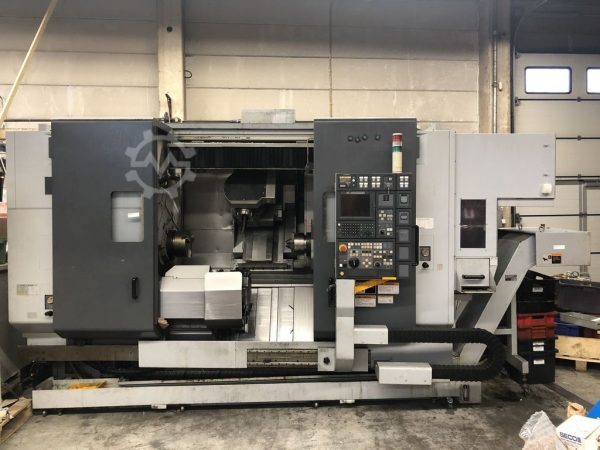

MORI SEIKI MT 2000SZ MULTI AXIS TURNING AND MILLING CENTER YM 2002
CNC CONTROL MSG-501 (FANUC 18 IT)
Power on 30000h, Cutting time1 7455h Cutting time2 1947h
SPECIFICATIONS:
Swing Over Bed 850mm
Distance Between Spindle Noses 1120mm
Max.Turning ∅ x1-axes Tool Spindle 540mm
∅ x2-axes Turret 280mm
Max. Turning Length z-axis 1020mm
X1-axis Travel Tool Spindle 565mm
x2 -axis Travel Turret 155mm
Z1-axis Travel Tool Spindle 1077mm
z2 -axis Travel Turret 930mm
Y-axis Travel Tool Spindle +/- 80mm
B-Axis Min. Index Angle/Index Range +- 120 degrees
C-Axis Spindle 1 .001 Deg.
Spindle 2 .001 Deg.
Spindle nose Spindle 1 A2-6″
Spindle nose Spindle 2 A2-5″
Spindle speeds Spindle 1 4500 RPM
Spindle speeds Spindle 2 6000 RPM
Tool Spindle 10000 RPM
Life Tool Turret 6000 RPM
Life Tool Turret 6000 RPM
Rotary Tool Magazine 40 ATC
Machine Weight 12500kg
EQUIPPED WITH:
MSG-501 CNC CONTROL (FANUC 18 IT)
10″ 3-Jaw Hyd.Chuck,
10” 2-Jaw Hyd.Chuck
8″ 3-Jaw Hyd.Chuck
Bar Feed Interface
Automatic Parts Catcher, Chip Conveyor
Capps Programming Software
Chip Blaster Thru the Milling Head Coolant System
For Both Milling Spindles Automatic Tool Presetter
All Available Manuals
Prior sale and change without notice
