Description
MORI SEIKI NH4000 DCG – Year 2004
CNC Horizontal Machining Center
| Axis X | 560 mm |
| Axis Y | 560 mm |
| Axis Z | 620 mm |
| Rotary table (4th axis) | no |
| CNC | MSX-501 |
| Table length | 400 mm |
| Table width | 400 mm |
| Max. part weight | 400 kg |
| Number of tool pockets | 60 |
| Spindle taper | CAT-40 |
| Max. spindle speed | 14000 rpm |
| Spindle motor power | 18 kW |
| MORI SEIKI NH4000 DCG | |
| Length x width x height | 4004.0 × 2397.0 × 2711.0 |
| Weight | 9600 kg |
CNC controller: MSX-501
Axes
X-axis travel mm: 560
Y-axis travel mm: 560
Z-axis travel mm: 620
B-axis degrees: 360º (0,001º index)
Feed rates m/min: 50
Rapid traverse m/min: 50

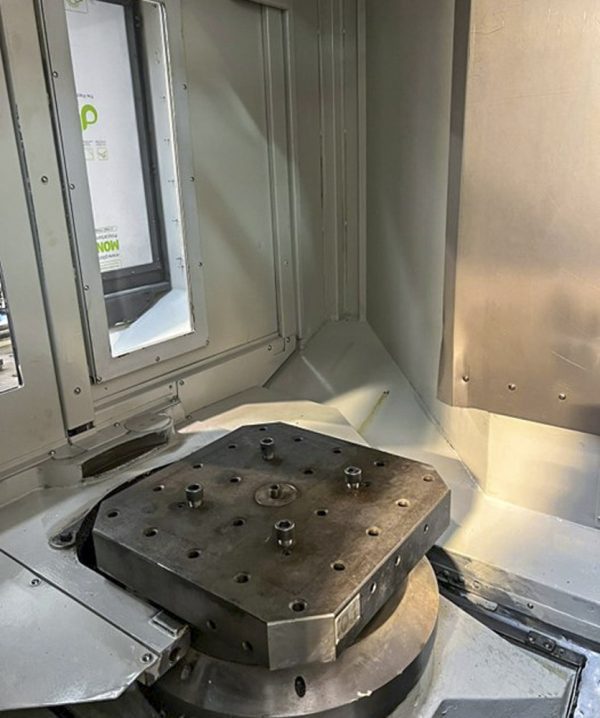

Worktable
Number of pallets: 2
Table dimensions mm: 400×400
Maximum workpiece size (D x H) mm: ø630×900
Max. workpiece weight kg: 400
Spindle
Spindle speed rpm: 14.000
Spindle drive power kW: 18/11
Cooling
Cooling through the Spindle Center bar: 50
Tool system
Tool holder: CAT-40
Tool magazine slots: 60
Max. Tool Diameter
With free neighboring places mm: ø140
With occupied neighboring places mm: ø70
Max. Tool Length mm: 400
Max tool weight kg: 8
Tool-to-tool time s: 0,9
Chip-to-chip time s: 2,8
Equipment
Chip conveyor
Basic machine dimensions / weight
Length mm: 4.004
Width mm: 2.397
Height mm: 2.711
Weight kg: 9.600
