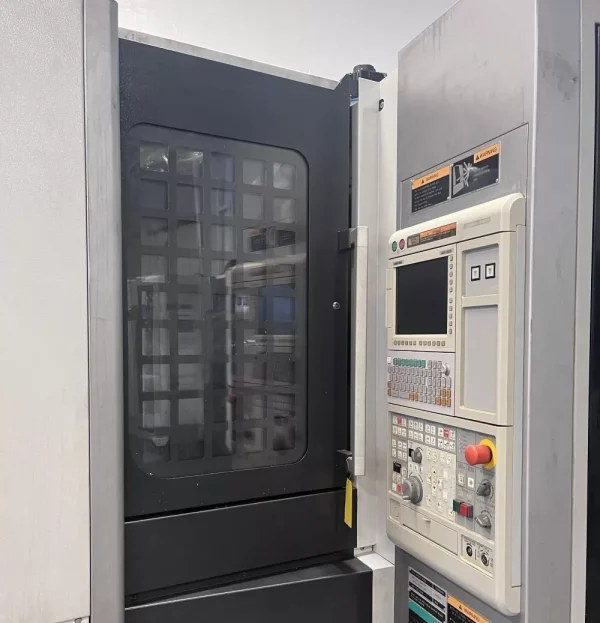

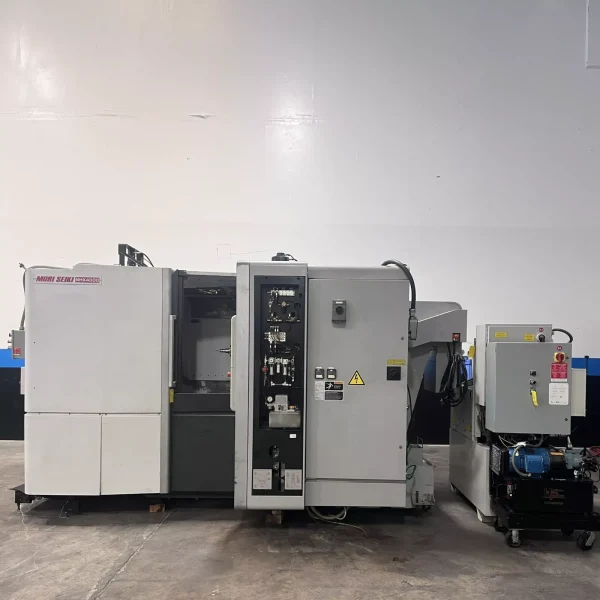

MORI SEIKI NHX-4000 CNC Horizontal Machining Center – Year 2011
Make: DMG MORI SEIKI
Model No.: NHX-4000
Year of Manufacture: 2011
Country Origin: Japan
Condition: Used – Good
Features:

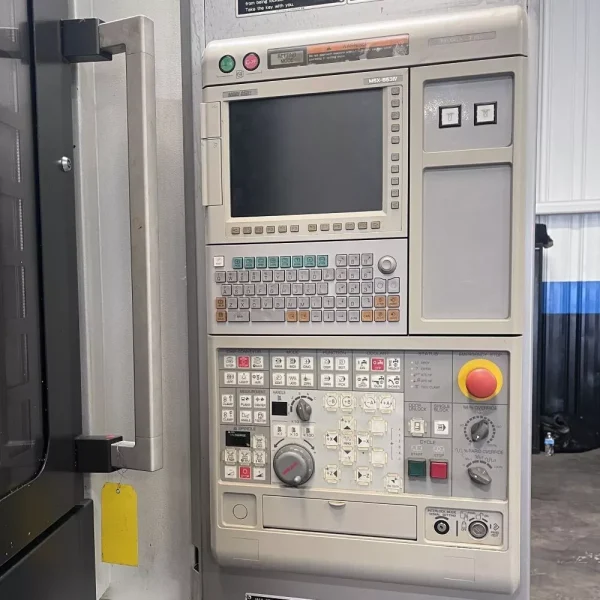

Mori Seiki MSX-853IV CNC Control
Full 4th Axis
12,000 RPM High Precision Spindle
Through Spindle Coolant
Twin Pallet Changer
40 Station High Speed Tool Changer
USB Ports
50 MB Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Custom Macros
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light
Specifications:
Travels:
X Axis: 22.0″
Y Axis: 22.0″
Z Axis: 26.0″
B Axis: 0.001° ( Full 4th )
Table:
Length: 15.7″
Width: 15.7″
Max Weight on Table: 882 lbs
Max Workpiece Height: 35.4″
Index Time: 8 seconds
Spindle:
Taper Size: 40
Max. Speed: 12,000 RPM
Power: 40 HP
Torque: 76.7 ft/lbs
Feed rates:
Rapid X & Y : 2352 Inch Per Minute
Rapid Z : 2352 Inch Per Minute
Cutting Feedrate : 984 Inch Per Minute
Automatic Tool changer:
Capacity: 40 Tools
Taper: 40
Max Tool Size: 6.6″
Max Tool Length: 17.7″
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second
General:
Air Required: 90 psi, 4 scfm

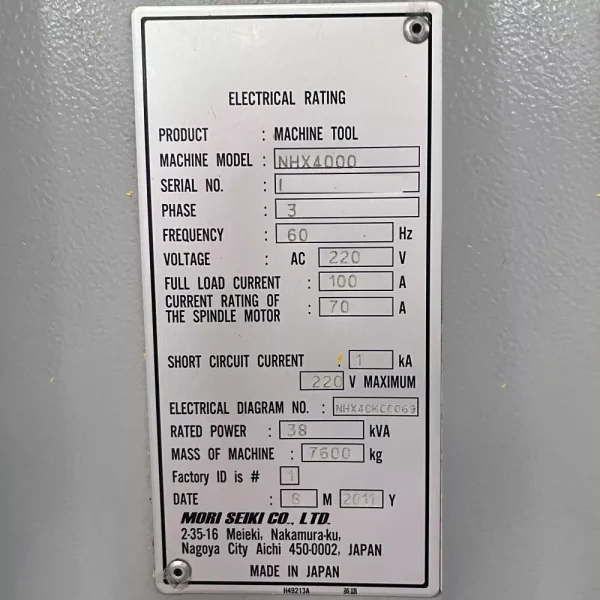

Power: 38 kva / 205-220v / 3-Phase
Overall Dimensions: 165″ X 105″ x 100″ High
Weight: 16,755 lbs
