Description

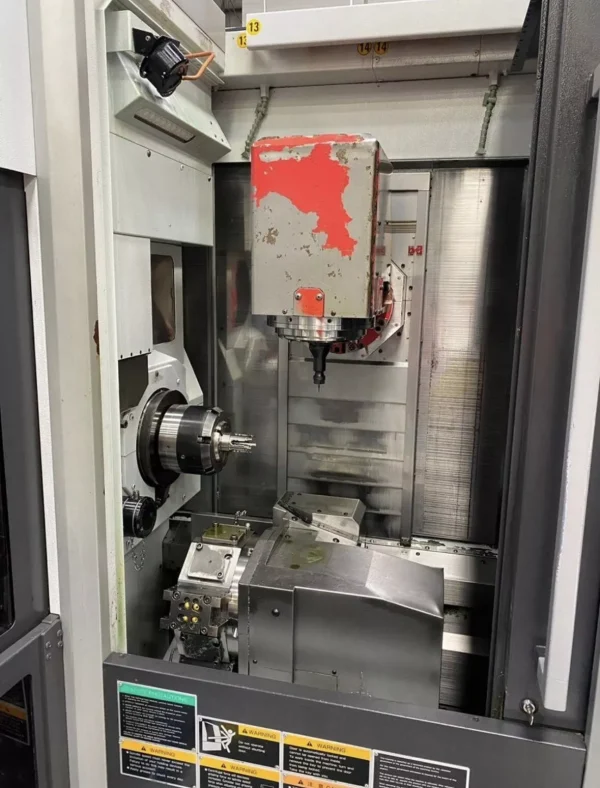

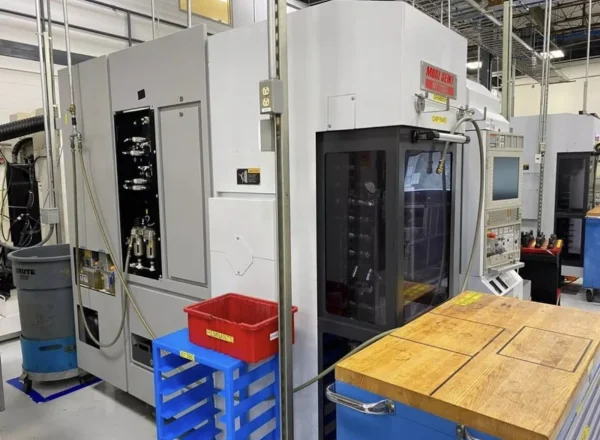

Mori Seiki NT 1000/SZ CNC MultiTasking Turn-Mill Center – Year 2010
MAXIMUM SWING OF WORK PIECE: 14.5″
SWING OVER CROSS SLIDE: 14.5”, TURRET 2 11.8”
MAXIMUM TURNING LENGTH: 16.6”
X – AXIS TRAVEL: 15″
Y – AXIS TRAVEL: + / – 4.1”
Z – AXIS TRAVEL: 18.1″ + 6.1″
X – AXIS TRAVEL: TRT 2 6.1″
Z – AXIS TRAVEL: TRT 2 24″
C – AXIS TRAVEL: MAIN / SUB .0001 DEG.
B – AXIS MIN. INDEX ANGLE / INDEX RANGE: -120 – +120 DEGREE
B – AXIS SPINDLE SPEED: HSC 20,000 RPM
TOOL SPINDLE: 12 HP
NUMBER OF TOOL FOR TOOL SPINDLE: 38 ATC
SPINDLE NOSE: NO 1, NO 2 A2-5 / G6 FLAT NOSE
HOLE THROUGH SPINDLE: NO 1, NO 2 2.4” / 2.2”
BAR WORK CAPACITY: NO. 1, NO 2 2.0″/1.5”
MAIN SPINDLE MOTOR: 15 HP
SUB SPINDLE MOTOR :10 HP
SPINDLE SPEEDS: NO 1, NO 2 6000 / 1000 RPM
RAPID TRAVERSE RATE: X, Y, Z, A 945, 945, 629, 300 IPM
TURRET CONFIGURATION: 10
TURRET INDEXING TIME: .26 SEC.
MACHINE WEIGHT: 19,690 LBS.
EQUIPPED WITH:
MSX-711 IV CNC CONTROL
CHIP CONVEYOR

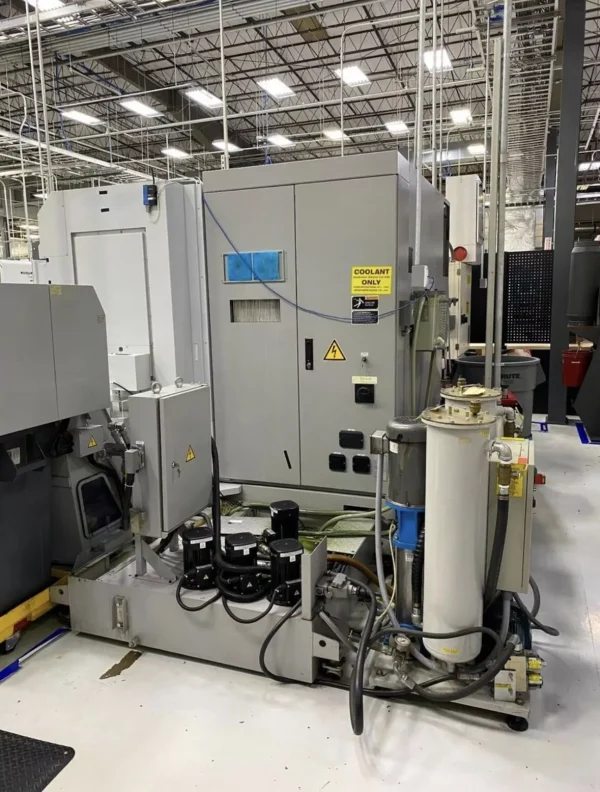

CHIPBLASTER F-75MSF
OMP 400 PROBE SYSTEM
.0001 DEG FULL B-AXIS
AIR BLAST
