Description

MORI SEIKI NT4250 / 1500SZ CNC MultiTasking Turn-Mill Machine – Year 2007
Turning length 1.542 mm
Turning Ø 660 mm
Ø above the bed 1500 mm
Type of CNC FS-31IA5(MAPPS 3)
X-axis 750 mm
Z-axis 210 mm
Spindle taper
Number of tools on turret 12
Turning speed 12 rpm
Spindle motor power 26 kW
Length x width x height 6.478 × 2.98 × 3.264
Weight 25.6 kg
Worked hours 16309 hours
Hours under power 114416 hours

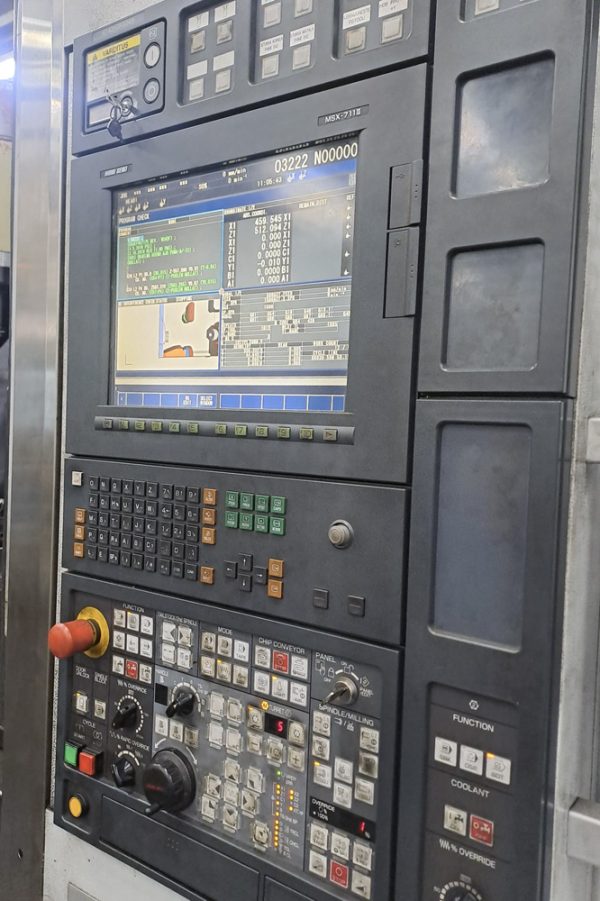

Numerical control: FS-31IA5(MAPPS 3)
Capacities
X axis travel mm: 750
Y axis travel mm: 210
Z axis travel mm: 1.550
B axis travel mm: 120
Turning length mm: 1,542
Swing diameter mm: ø: 660
Turning diameter above bed mm: ø: 1500 Turning diameter f. lower turret mm: 350
Max. spindle rotation rpm: 12,000
Spindle drive power kW: 18.5 / 11

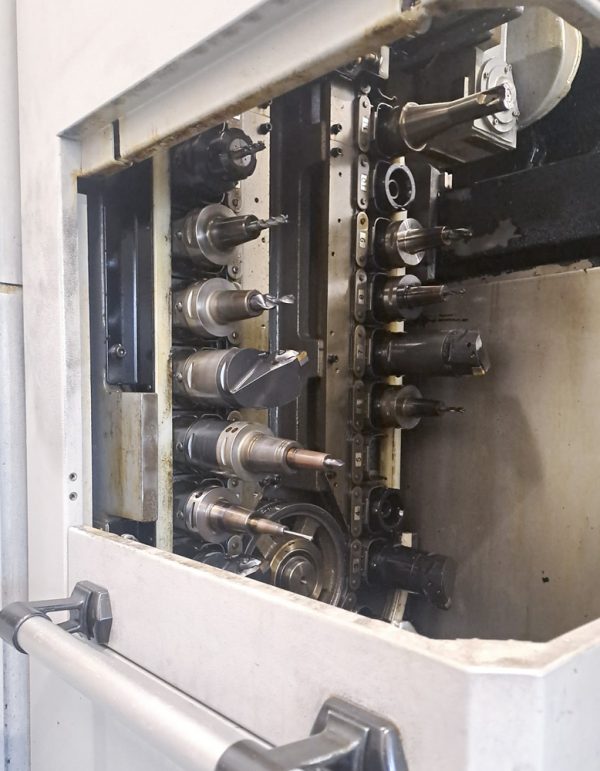

Tool magazine
Number of tool positions: 40 Tool attachment: CAPTO C6 LOWER TURRET
X axis travel mm: 195
Z axis travel mm: 1.525
Number of tool positions: 12
Max. rotation of driven tools rpm: 12,000 Milling function: Provided
MAIN SPINDLE
Max. tool rotation rpm: 4,000 Tool drive power kW: 26/22 Spindle bore mm: 91
Chuck type: HOLLOW CHUCK (12″) Manufacturer: KITAGAWA
COUNTER SPINDLE
Max. tool rotation rpm: 4.000 Tool drive power kW: 26/22
Powered by TCPDF (www.tcpdf.org)
Spindle bore mm: 91
Chuck type: HOLLOW CHUCK (12″)
Manufacturer: KITAGAWA
EQUIPMENT
Chip conveyor

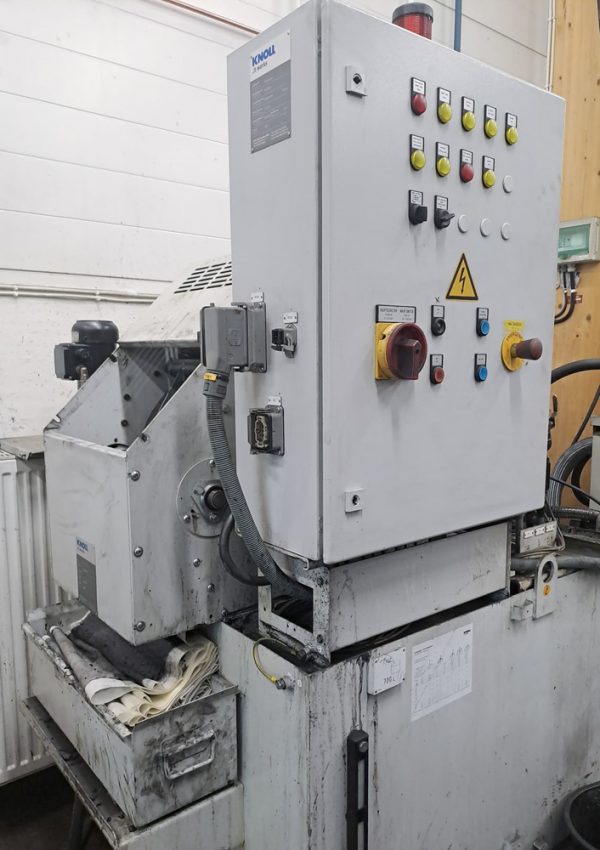

High pressure pump
Workshop chandelier
Spindle air blower
Chuck pedal (double) for main and counter spindle Coolant gun
Internal coolant

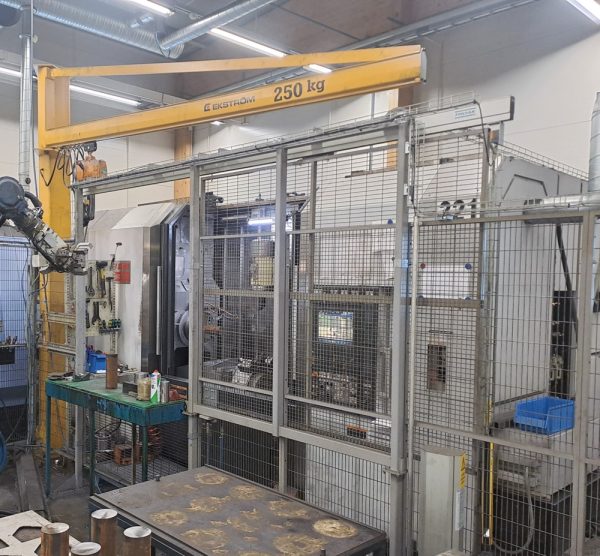

Preparación para trabajar con robot
Working hours
Hours on: 114.416
Spindle N°1: 16.309
Spindle N°2: 16.353
Basque machine: Dimensions/Weights
Length mm: 6,478
Width mm: 2,980
Height mm: 3,264
Weight kg: 25,600
