Description

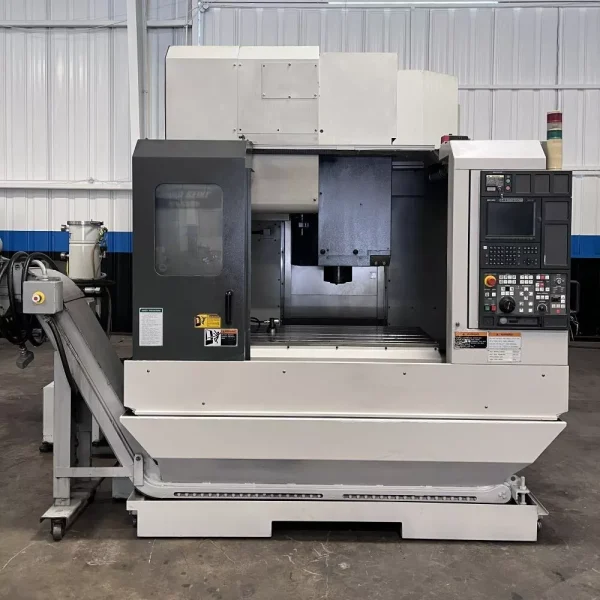

MORI SEIKI NV5000A/40 CNC Vertical Machining Center – Year 2002
Make: MORI SEIKI
Model NV5000A/40
Year: 2002
Condition: Used – Good
Features:
MSC-501 (Fanuc 18i) series CNC Control

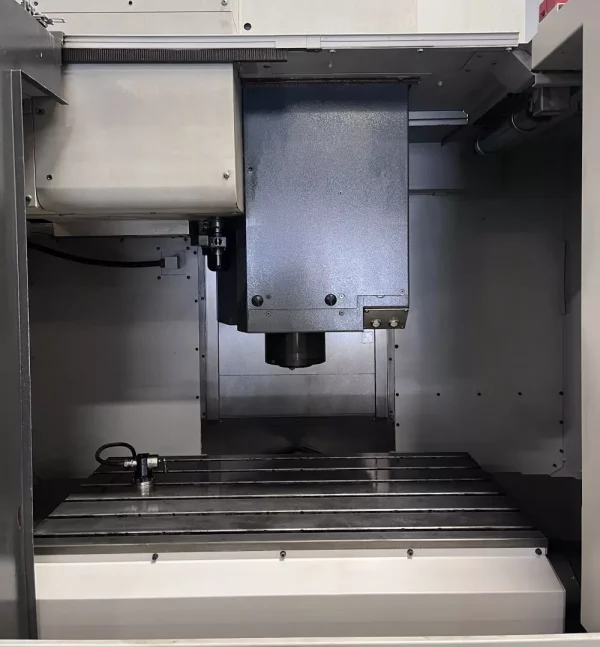

12,000 RPM High Precision Spindle
40 Taper Spindle
30 Station Automatic Tool Changer
30 HP high torque spindle motor

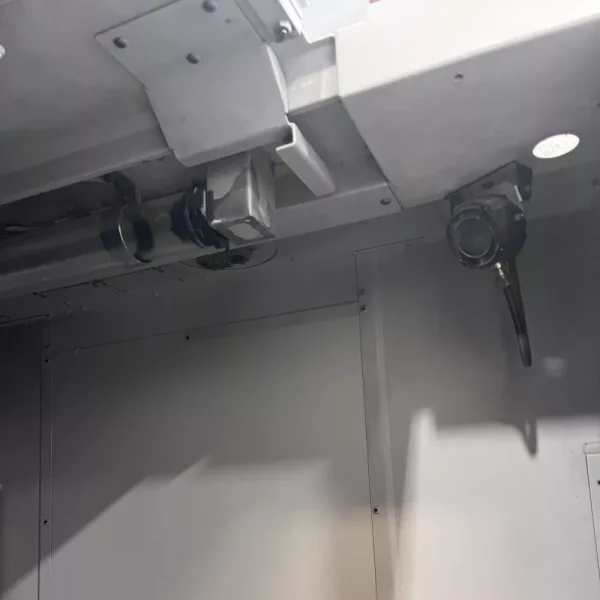

Renishaw Probing System

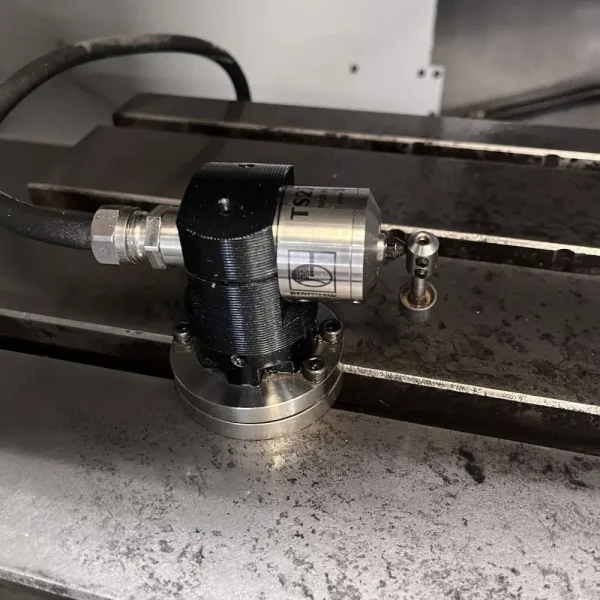

Tool Pre-setter
Rigid Tapping
Spindle Orientation
Telescopic way covers

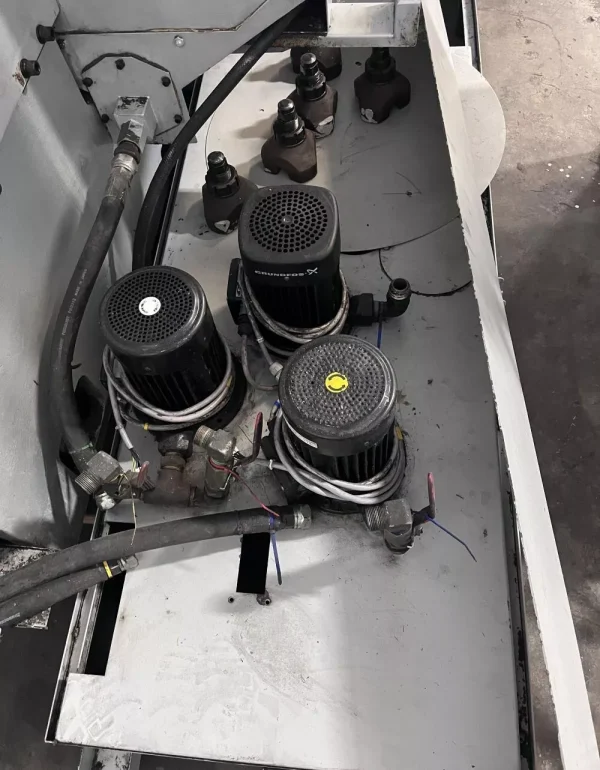

High Flow coolant with large separate coolant tank
Chip Conveyor
Specifications:
Travels:
X-Axis: 31.50″
Y-Axis: 20.10″
Z-Axis: 20.10″
Rapid Traverse Rates: 1654 Inch Per Minute
Cutting Feed Rates: 630 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

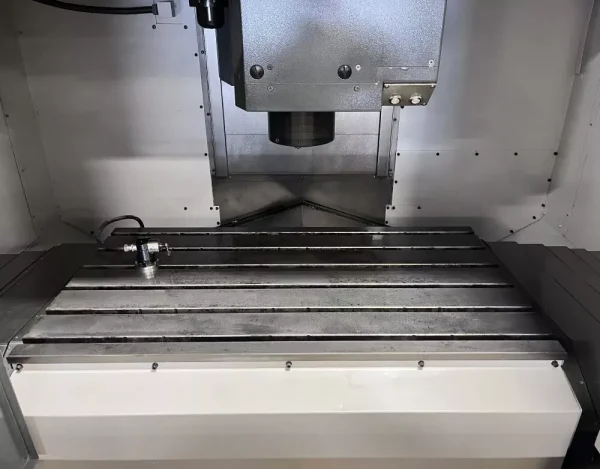

Table
Length: 43.30″
Width: 23.60″
Number of Std T-Slots: 6
T-Slot Width: 5/8″
Max Weight on Table: 2640 lbs

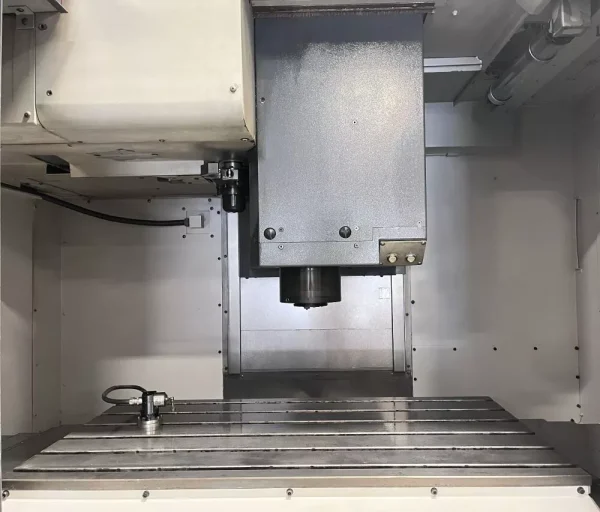

Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 30
Max Tool Weight: 17.6 lbs
Max Tool Dia: 5.90″
Max Tool Length: 11.8″
Tool Changing Time: 0.9 Seconds
General:
Air Required: 90 psi, 4 scfm

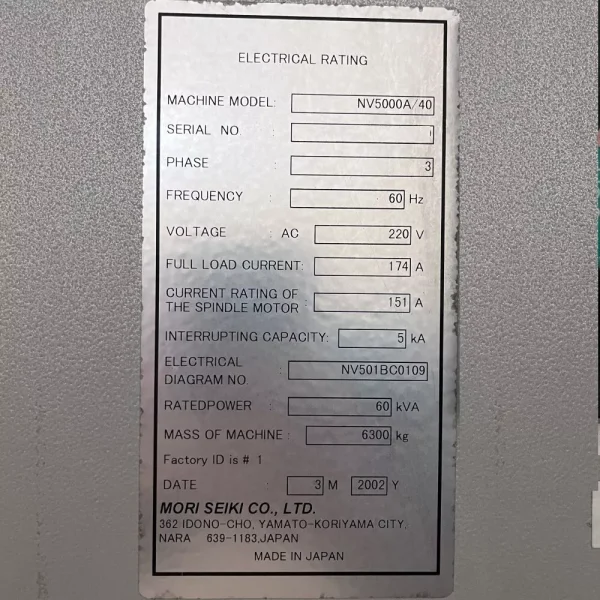

Power: 220v / 60 KVA / 3-Phase
Overall Dimensions: 142″ x 101″ x 110″ High
Weight: 13,889 lbs
