Description
MORI SEIKI SV-500/40 CNC 4th Axis Vertical Machining Center – Year 1998

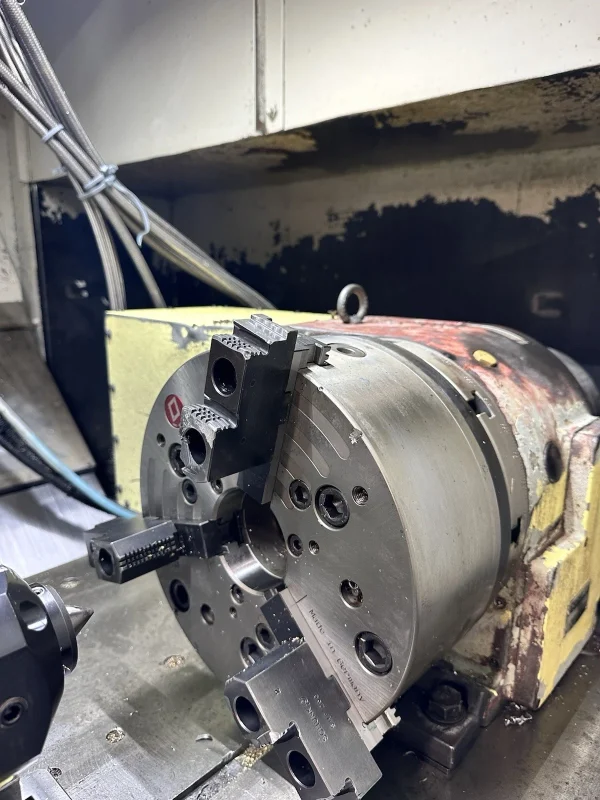

10” Schunk rotary table
1000 PSI high pressure coolant

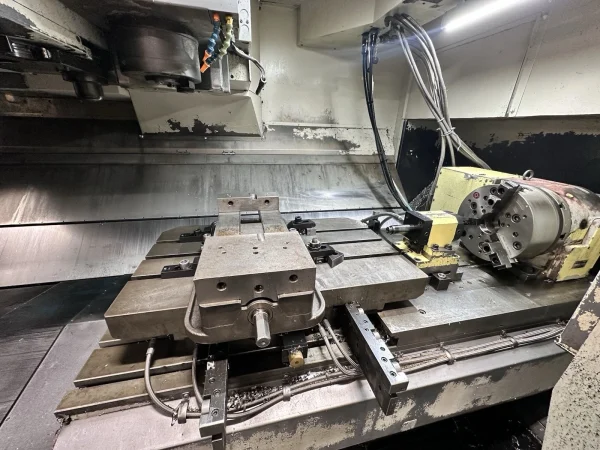

Pallet shuttles
X 40″
Y 20″
Z 20″
Power 30 hp
RPM 10,000 RPM
# ATC 20
Table-W 40″
Table-L 20″
Taper 50
Specifications:
Table Size 43.3″ x 23.6″
Table Load Capacity 2,200 lbs.
X-Axis Travel 31.5″
Y-Axis Travel 20.1″
Z-Axis Travel 20.1″
Tool Magazine Capacity 30 Position ATC
Tool Change Time-chip to chip 3.1 seconds
Max. Tool Diameter / Length 4.9″ / 11.8″
Spindle Taper BT #40 Taper
Spindle Motor 30 Min. / Cont. 30 / 25 HP
Spindle Speed 10,000 RPM
Table Top to Spindle Nose 5.9″ – 26″
Rapid Traverse Rates 1259 IPM
Machine Dimensions 102″ x 93″ x 113″
Machine Weight 17,120 lbs.
