• NAKAMURA TOME WT-250 – Year 2005

    Contact us for price

    Category:

    Description

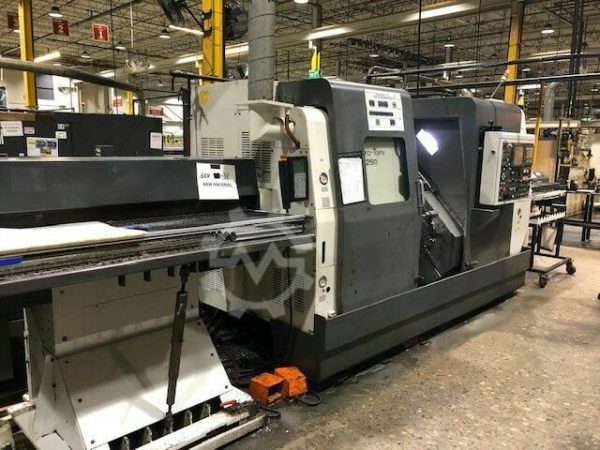

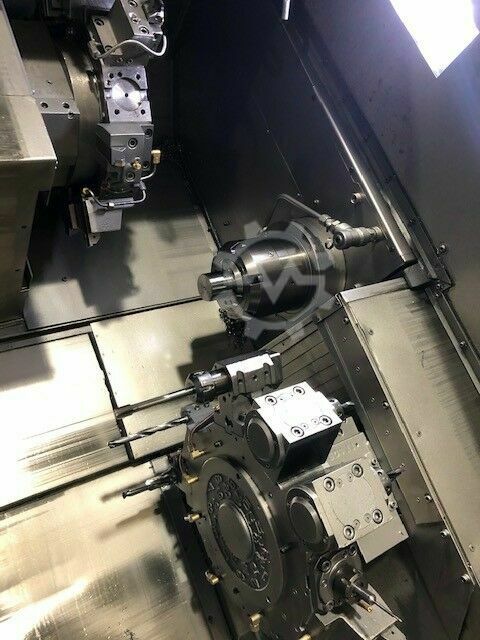

    NAKAMURA TOME WT-250 – 2005 Model
    2 spindle
    2 turret
    2 sets of bar feeder

    Model WT250
    Swing over bed 406 mm
    Turning diameter 389 mm
    Shaft diameter 249 mm
    Machining length 434 mm
    Chuck size 1,2 CB65MM, CB54MM Collet Chuck
    Spindle nose 1,2 A2-6, A2-6
    Spindle bore diameter 1,2 80 mm
    Spindle bar capacity 1,2 65 mm, 64 mm
    Spindle speed 4500 r.p.m. both
    Spindle horse power 35 HP both
    X axis travel 1,2 194 mm
    Z axis travel 1,2 480 mm
    C axis travel 1,2 .001 , .001
    Rapid travel rates X1,X2 11.000 mm/min
    Rapid travel rates Z1,Z2 24.000 mm/min
    Rapid travel C axis 25 r.p.m.

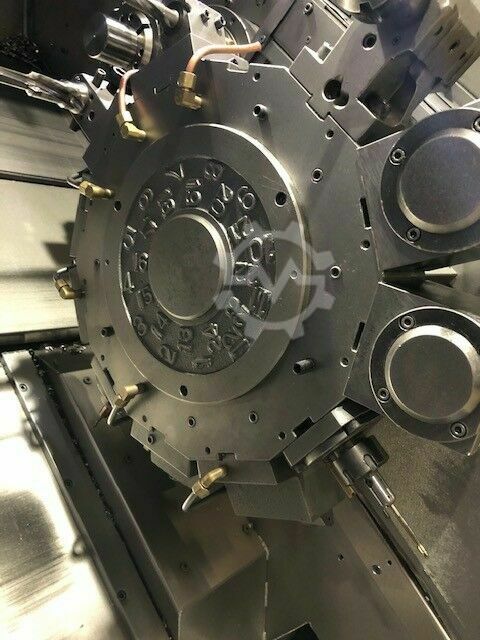

    Turret configuration 1,2 24,24 (Special design and working philosophy)
    Turret rotary tool spindle speed 1,2 3600 r.p.m.
    Turret rotary tool horse power 1,2 7.5 HP
    Machine Weight 8.7 TON
    Fanuc 18-iTB control system
    2 sets of 24 position available turret system
    Abnormal load detection air bag function
    Microcentic CB65MM front and sub spindle
    Bar feed interference
    LNS bar feeder
    Manual guide eye conversational programming
    High volume coolant and high pressure coolant tanks
    N-T Nurse tool monitoring function
    N-T torque navigator for part an datum point recognition
    Chip conveyor
    .001 C-axis indexing on both spindles
    High pressure coolant system
