Description
Turning length | 250 mm |
---|---|
Turning Ø | 195 mm |
Spindle motor power | 15 kW |
Tailstock | no |
Bar feeder | no |
Nakamura TW-20MMYY, CNC lathe with GR-
210 portal loader, counter spindle u. C-axis
Used, built in 1998

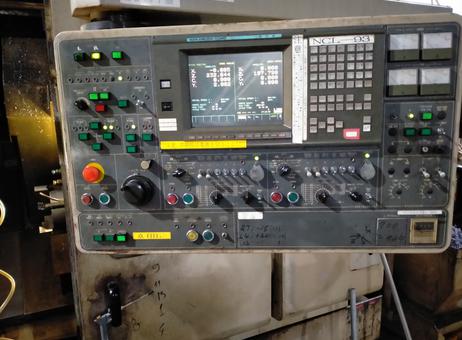

Fanuc 18 TC control
20 workpiece pallets, 450mm stack height
2 automatic tool setting arms
64 Tool Compensation
160 m program memory
12-fold revolver
Bar passage 51mm
Turning length: 250mm
Turning diameter: 195mm
Drive power 15/11 kW
Automatic central lubrication of all axes
Mobile coolant tank with
Coolant level monitoring
2 Brinkmann HD pumps, type TH 45/390 / 15 bar,
pole-changing via M function, pump output =
45L / min per pump
Connection for an oil mist extraction, D = 150mm
Speed correction switch for both turning spindles
Position switch for tool set-up mode
Work area light
Tool storage below the control switch
Foot switch for feed control
Door lock
Clamping stroke monitoring
