Description

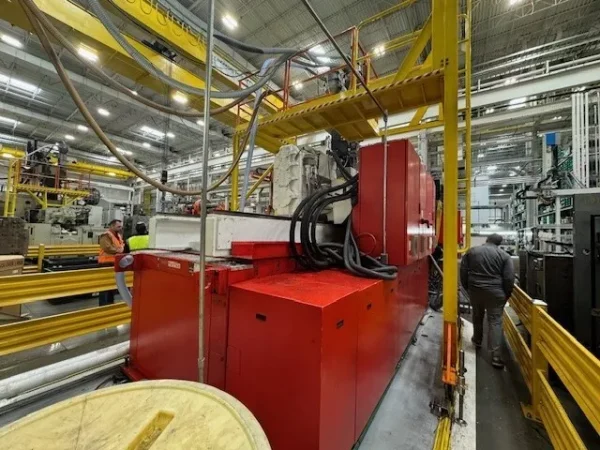

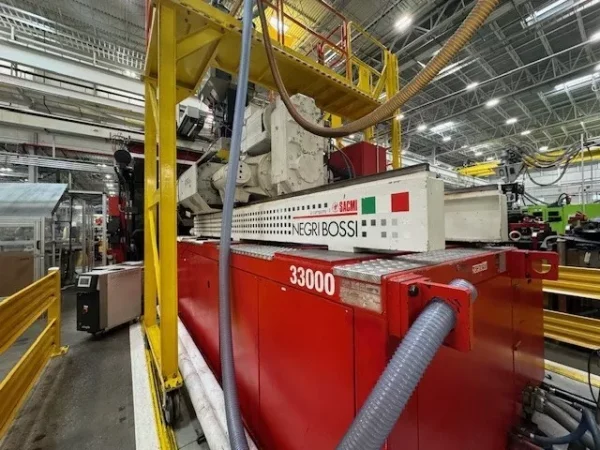

NEGRI BOSSI VH2850 – Year 2007
Injection Molding Machine
MANUFACTURE: NEGRI BOSSI
MODEL: VH2850
CONDITION: USED/GOOD CONDITION
SPECIFICATIONS:
SERIAL NO.: 407-102
EUROMAP CLASSIFICATION: 28500H-33000
MANUFACTURING YEAR: 2007
MAX HYDR. PRESSURE (CLAMP): BAR 227
MAX HYDR. PRESSURE (INJ.): BAR 180
MAX POWER: 527KW
HERTZ: 60
VOLTS: 460
KG: 140000
TECHNICAL DATA
SCREW DIAMETER: 6,7
SCREW L/D RATIO: 23
CALCULATED INJECTION VOLUME: 1177
SHOT WEIGHT PS: 619
SHOT WEIGHT HDPE: 490
INJECTION PRESSURE MAX: 24656
SCREW SPEED: 80
SREW TORQUE: 16816
PLASTICISING CAPACITY PS: 11,6
PLASTICISING CAPACITY HDPE: 9,5
HEATING INPUT POWER: 174
INJECTION RATE: 83,1
NOZZLE MOULD HOLD ON FORCE: 21,3
MOULD CLAMPING FORCE: 2850
OPENING FORCE: 124
MOULD MIN. OPENING STROKE: 118
MOULD MAX. OPENING STROKE: 82,5
MOULD THICKNESS MAX/MIN: 71/35,5
MAX DAYLIGHT: 153,5
PLATEN DIMENSIONS HxV: 119×103
SPACE BETWEEN HxV TIE BARS: 78,7 x 63
HYDRAULIC INJECTION FORCE: 16
HYDRAULIC INJECTION STROKE: 15,7
TIE BARS DIAMETER: 13,4
PUMP DRIVING POWER: 148
TOTAL INSTALLED POWER: 527
SCREW ELECTRICAL MOTOR POWER: 200
DRY CICLES: 12
INSTALLATION DIMENSIONS: 630 x 170 x 146
OIL TANK CAPACITY: 621
NET WEIGHT OF MACHINE: 308642
MAX MOULD WEIGHT: 132275
ADDITIONAL INFO
THIS MACHINE HAS A 170MM SCREW.
BOTH MOVING AND STATIONARY HAVE (QTY-4) CORES ON EACH SIDE.
THE MACHINE DOES SHOW AIR BLAST CONTROL, BUT THIS FUNCTION WAS NOT IN USE, UNKNOWN CONDITION.

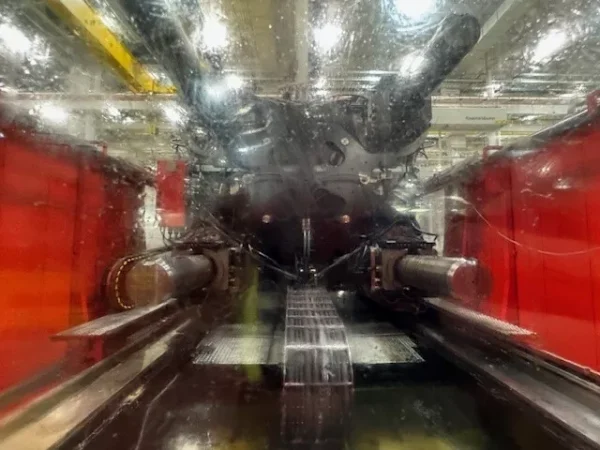

MACHINE DOES HAVE TIE BAR PULL

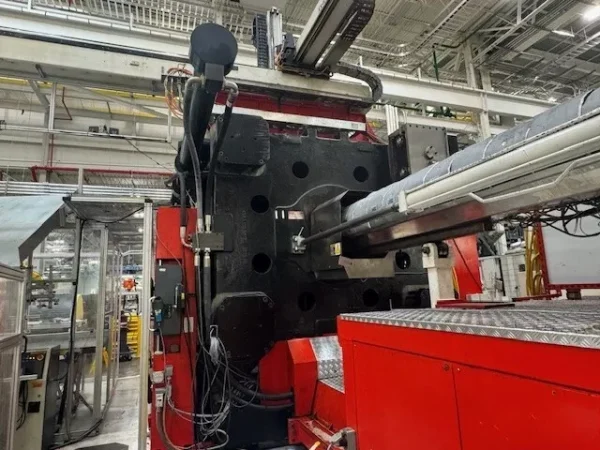

UNIT CONTAINS STAUBLI QMC122 MAGNETIC CLAMPING SYSTEM
