Description
NICOLAS CORREA NEPTUNO – Year 2005
X Axis 9600 mm
Y Axis 1605 mm
Z Axis 705 mm

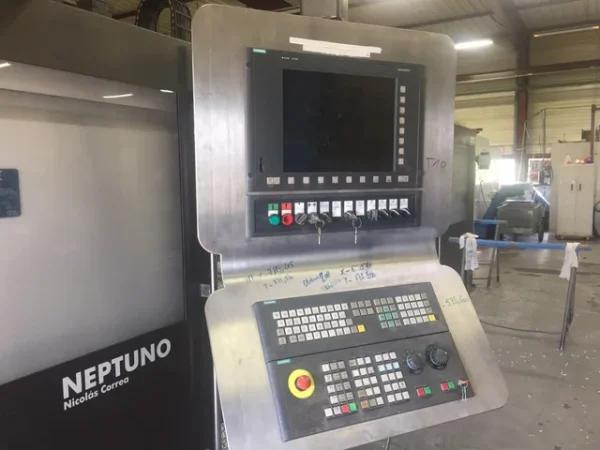

CNC type SIEMENS
Table length 10000 mm
Table width 3000 mm
Spindle taper HSK63
Overhauled no
Length x width x height 6100.0 × 2700.0 × 3500.0
Weight 15000 kg

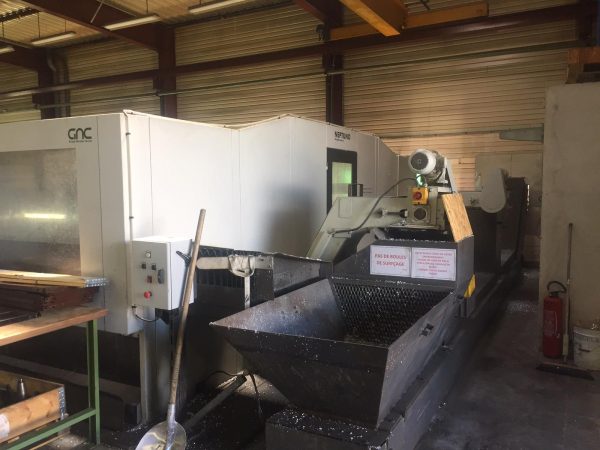

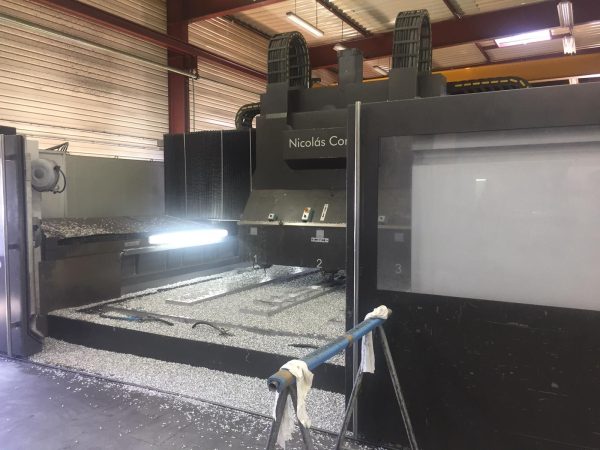

NICOLAS CORREA NEPTUNO milling machine
Year of manufacture 2005

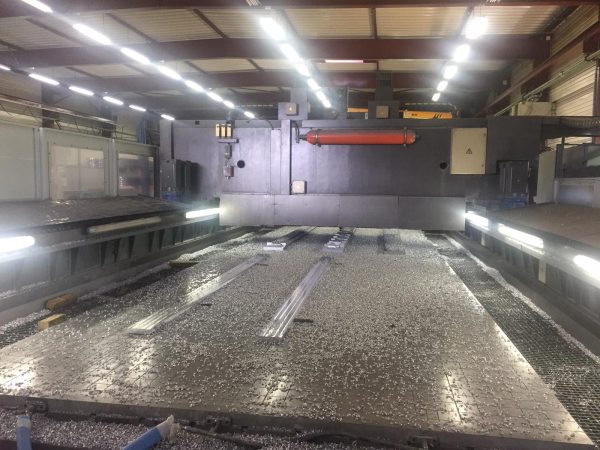

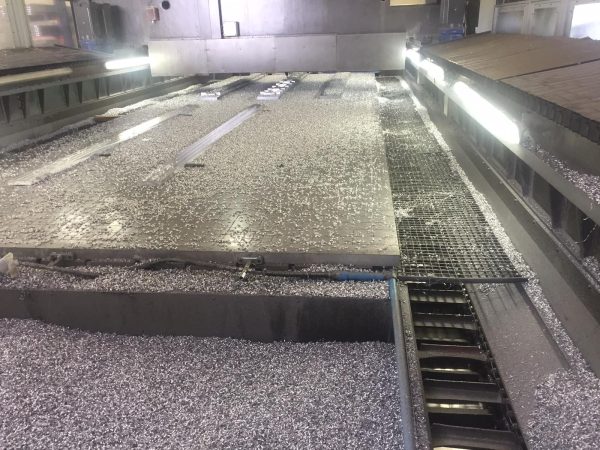

Table size: 10.000 x 3.000mm
Strokes: X 9600mm
Y 1605mm
Z 710mm
Feed rates: X/ Y 30 m/min.
Z 20 m/min.
Acceleration: 3 m/sec2

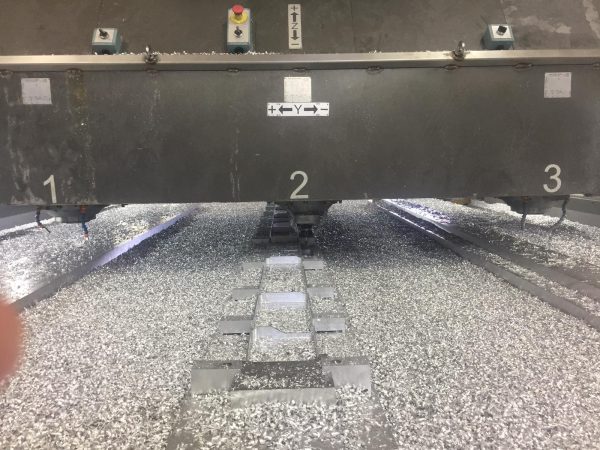

Spindle: 3 x 18,000 rpm, 35 kW, 85 Nm
Tool magazine: 3 x 15
Two uprights – welded frames
2 carriages on which the crossbar is placed
2 + 2 skid-mounted guidance
Cross-roller skates with roller recirculation
4 x 2 x 2 = 16
Size: 65
