NUKON NK-T160 PIPE and PROFILE Cutting Machine – Year 2020
| Metal length | 6000 mm |
| Power | 3000 W |
| Type | Fiber |
Nukon TKS 160 Profile and Pipe Laser Cutting Machine
Machine is like new

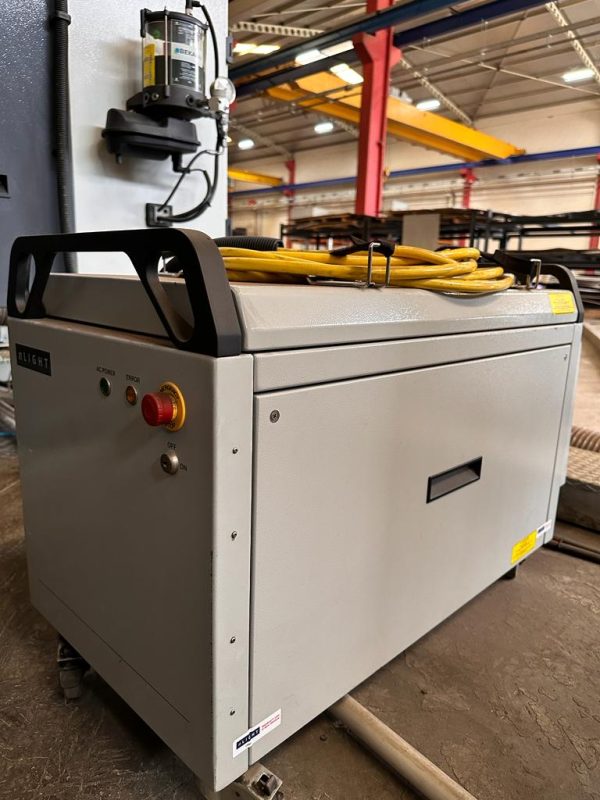

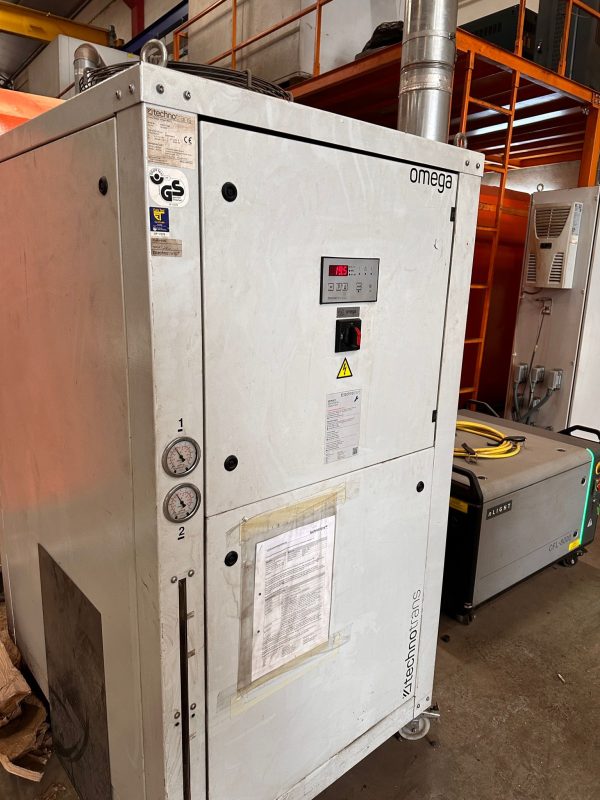

Resenator (Laser Source): 3kw nLIGHT
Software: Lantek Program
UPS
Dust collector
Capable of U, Flat, Angle, Pipe, Profile
LC screen
Automatic feeding
Machine is like new
Resenator (Laser Source): 3kw nLIGHT
Software: Lantek Program
UPS
Dust collector
Capable of U, Flat, Angle, Pipe, Profile
LC screen
Automatic feeding
Manufacturer Catalogue Information about NUKON NK-T160 PIPE and PROFILE Cutting Machine :
| Machine Model | NK-T160 | |||||
| Type | Pipe and Profile Cutting Machine | |||||
| Resonator | 2 kW | 3 kW | 4 kW | |||
| Maximum Cutting Capacity | Mild Steel | 8mm/.32″ | 10mm/.39″ | 12mm/.47″ | ||
| Stainless Steel | 6mm/.23″ | 8mm/.32″ | 10mm/.39″ | |||
| Aluminum | 5mm/.19″ | 8mm/.32″ | 10mm/.39″ | |||
| Brass | 3mm/.11″ | 5mm/.19″ | 6mm/.23″ | |||
| Cooper | 3mm/.11″ | 5mm/.19″ | 6mm/.23″ | |||
| Max. Outer Circle Diameter | Ø 226mm/8.90″ | |||||
| Max. Pipe Diameter | Ø 226mm/8.90″ | |||||
| Max. Square Dimension | 160mm/6.30″ | |||||
| Max. Rectangular Dimension | 200mm X 100mm | |||||
| Profile Cutting |
U, L
I*, H* (with Bevel option)
|
|||||
| Feed Length |
6500mm/21.32ft,
8000mm*/26.24ft*
|
|||||
| Max. Loading Weight | 35 kg/m | |||||
| Remnant | 80mm/3.15″ | |||||
| Options |
– Automatic Centering
– Weld Seam Detection – Bevel Cutting
– Waste Parts Conveyor
|
|||||

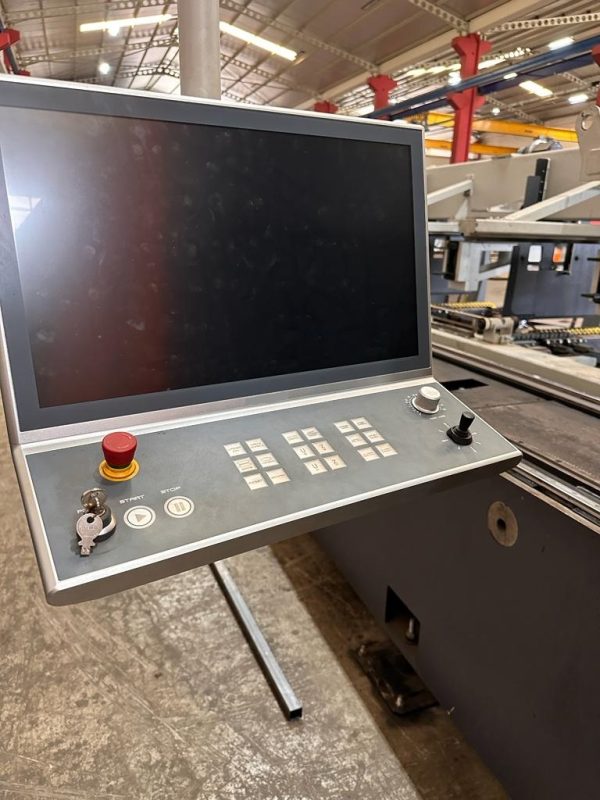

| Control Panel | 21″ Multi-Touch Screen | |||||
| Machine Weight | 23000 kg / 50706 lbs | |||||
– The right to make changes to dimensions, construction and equipment is reserved by NUKON.
* Option
PIPE and PROFILE CUTTING MACHINE
|
Bevel CUTTING
⊲ Ability to cut with +/- 45°.
⊲ High speed in the production of beveling jobs.
⊲ Improved quality and dimensional tolerance in the final
product.
⊲ High profitability on bevelling jobs.
⊲ Possibility of bevel production in external and internal
contours.
|
AUTOMATIC CENTERING
The automatic centering system determines
the misalignment by checking in real-time
whether the material fed to the machine and
ready for cutting is in the center of the chuck.
In addition, this option measures the outer
dimensions ofthe material and the corner
radius and checks the accuracyof the
information entered into the system, ensures
the continuity of the cut.
|
WELD SEAM DETECTION
Detection of weld seams in pipes and tubes
prior to laser cutting is gaining importance due to
the ever-increasing use of welded pipes and tubes.
In the industry more and more structural and
safety related components are made of welded tubes.
The repeatability and efficiency required for these
operations can only be achieved by precisely
positioning the weld seam before laser cutting.
|
FEEDING CHUCK
The feeding chuck can hold materials between Ø15-Ø226mm in the center axis precisely. Jaw clampin
works with a pneumatic drive with adjustable pressure. The profile rotation axis and profile drivin
axis are servo-motor driven.

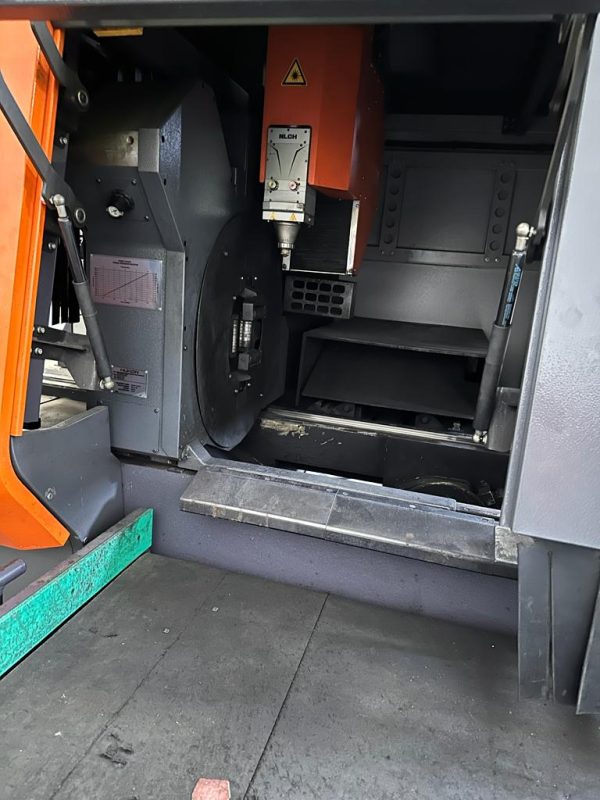

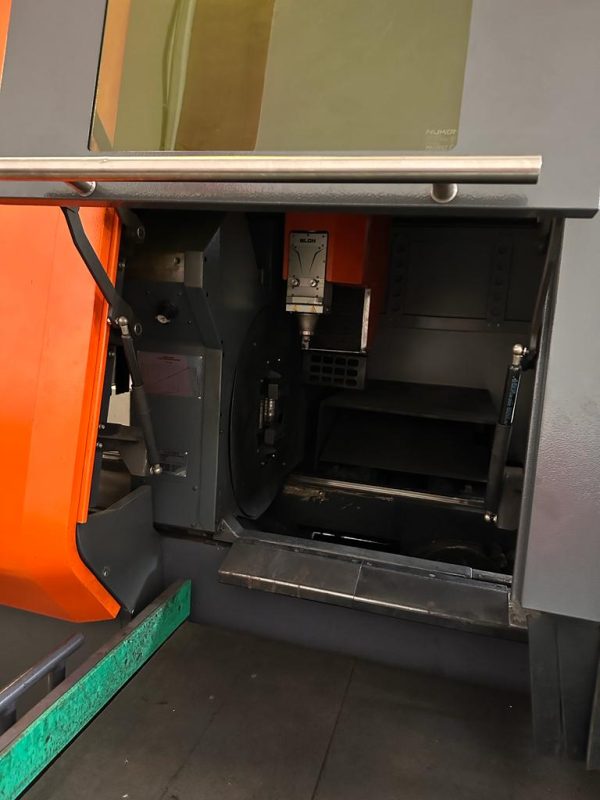

FRONT CHUCK
The front chuck can hold materials between Ø15 andØ226mm precisely in the center axis with
4 supported roller jaws. Jaw clamping works with a pneumatic drive system with adjustable pressure.
The front chuck has the ability to move forward and backward to cut the minimum residual material
and long contours without using the micro-joint option.

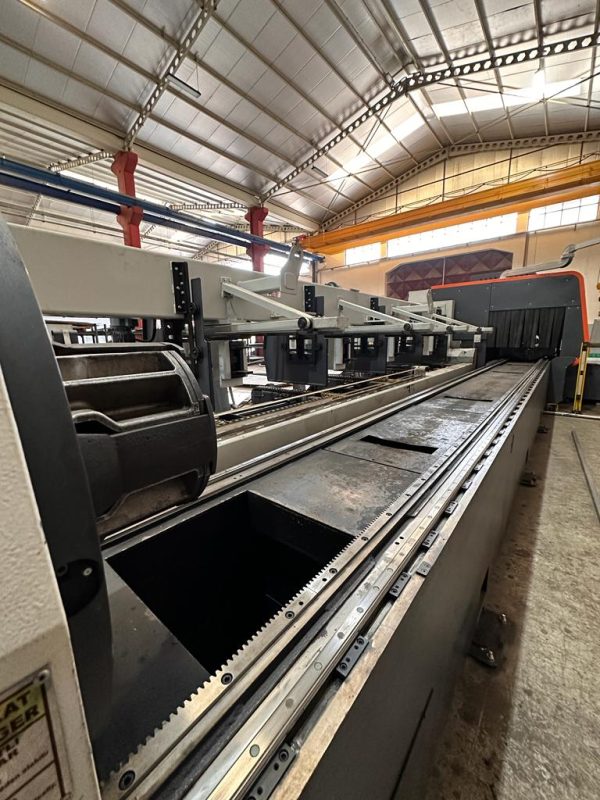

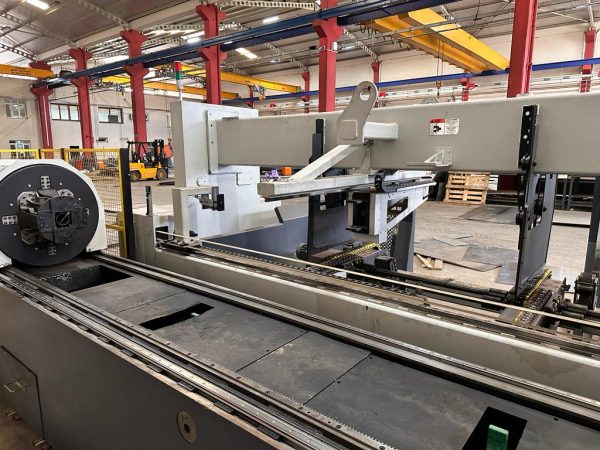

AUTOMATIC LOADING SYSTEM
All settings in the system according to cross-sectional dimensions of pipes and profiles are made
automatically by CNC when material information is entered. Compatible with loading parts between
3000mm – 6300mm.

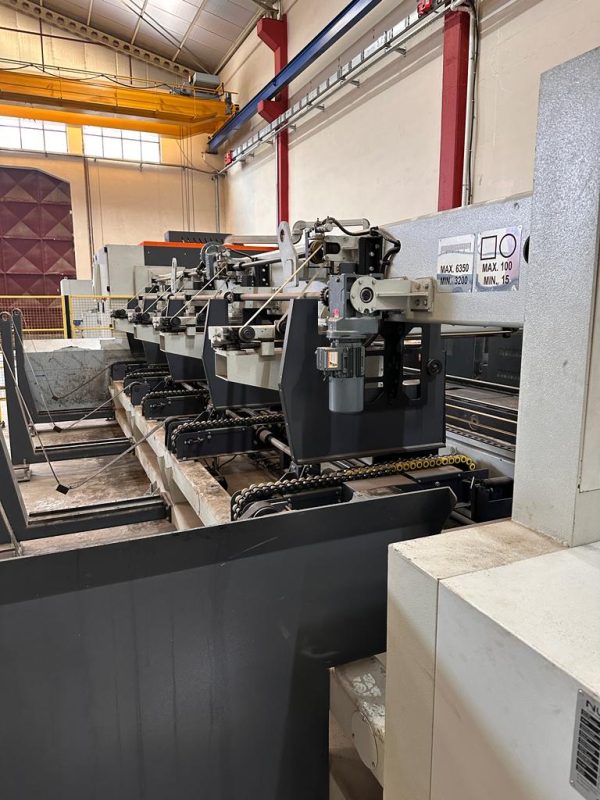

SUPPORTS
The supports are the supporting elements that are placed in order to prevent collapse and
oscillation of the materials during the cutting according to the cross-section and length dimensions
of the pipes and profiles entered into the CNC. All settings are made automatically according to
the section dimensions.
AUTOMATIC UNLOADING SYSTEM
All settings in the system according to cross-sectional dimensions of pipes and profiles are made
automatically by CNC when material information is entered. As standard, finished parts can be
unloaded with a maximum length of 4000mm. Optionally it can be extended to 6000mm.
MOVING FRONT CHUCK
NK-T160 front chuck can move forward and backward. It makes the forward movement to reduce
the waste portion. The chuck moves forward and passes to the other side of the cutting head, thus
bringing the head closer to the end of the material and reducing waste. The back movement of the
chuck, on the other hand, moves backward to prevent the material from getting caught in the jaw in
long and wide discharges.
