NUKON Vento Flex 420 – Year 2021
Fiber Laser Cutting Machine 8000W
| Metal length | 4000 mm |
| Power | 8000 W |
| Metal width | 2000 mm |
| Type | Fiber |
Nukon Vento 420 8 KW Fiber Laser Cutting Machine
Machine is like new
Power: 8kw
Metal size: 4mt x 2mt
Resenator (Laser Source): 8kw nLIGHT
Linear Slide
Software: Lantek Programı
UPS
Dungle
Dust collector
Manufacturer Catalogue Information about NUKON Vento Flex 420 :
| MACHINE MODEL | VENTO 315 | VENTO 420 | VENTO 620 | ||
|---|---|---|---|---|---|
| Sheet Dimensions | 1530mm x 3050mm / 5x10ft | 2030mm x 4050mm / 6.6×13.2ft | 2030mm x 6050mm / 6.6×19.8 | ||
| Resonator Power (kW) | 2, 3, 4 and 6 | 2, 3, 4 and 6 | 2, 3, 4 and 6 | ||
| Axis | X | 3050mm/10ft | 4050mm/13.2ft | 6050mm/19.85ft | |
| Y | 1530mm/5ft | 2030mm/6.6ft | 2030mm/6.6ft | ||
| Z | 145mm/5.7″ | 145mm/5.7″ | 145mm/5.7″ | ||
| Working Table Height | 900mm/35.55″ | 900mm/35.55″ | 900mm/35.55″ | ||
| Maximum Loading Capacity | 2000 kg/4409 lbs | 3500 kg/7716lbs | 6000 kg/11023lbs | ||
| Positioning System | Servo Motor / Rack and Pinion | Servo Motor / Rack and Pinion | Servo motor / Rack and Pinion | ||
| Acceleration | 20 m/s² | 15 m/s² | 15 m/s² | ||
| Axis Speed (X, Y Simultaneous Speed) |
140 m/min | 140 m/min | 140 m/min | ||
| Positioning Accuracy / (Pa)* | 0.1mm/0.039″ | 0.1mm/0.039″ | 0.1mm/0.039″ | ||
| Shuttle Table Change Time | 27 sec | 35 sec | 45 sec | ||

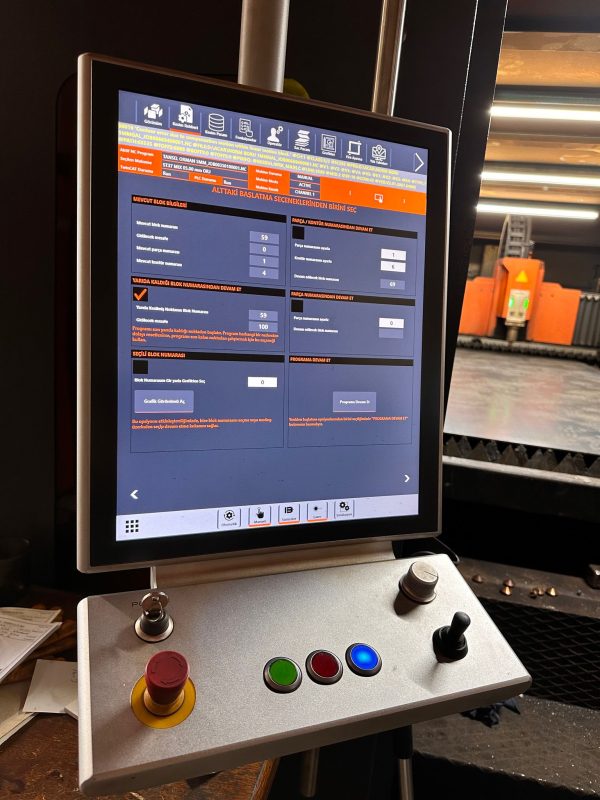

| Controller | 19″ Multi-Touch Screen | 19″ Multi-Touch Screen | 19″ Multi-Touch Screen | ||
| Assist Gas | Oxygen (O2) : 15 Bar Nitrogen (N2) : 25 Bar |
Oxygen (O2) : 15 Bar Nitrogen (N2) : 25 Bar |
Oxygen (O2) : 15 Bar Nitrogen (N2) : 25 Bar |
||
| Optional Equipments | -Auto Nozzle Changing -Loading/Unloading System -Air Cutting -Cut Line**
-Piercing Sensor & Cut Detection ***
|
-Auto Nozzle Changing -Loading/Unloading System -Air Cutting -Cut Line**
-Piercing Sensor & Cut Detection ***
|
-Auto Nozzle Changing -Air Cutting -Cut Line**
-Piercing Sensor & Cut Detection ***
|
||
|
Machine Weight
|
22500 kg/49604 lbs | 27000 kg/59525 lbs | 33500 kg/73855 lbs | ||
* The accuracy that can be achieved depends on variable factors such as workpiece design, heat treatment, dimensions and position in the work area. Values given are based on VDI / DGQ 3441.
*** Available for 6 kW and above power options.
NUKON VENTO FLEX 315/420/620
Vento Flex Fiber Laser Cutting Machine
Our new design Vento Flex model has high productivity and upper segment standards. With its unique design, it is possible to cut both sheets and tubes.
Vento Flex has 1530mm x 3050mm, 2030mm x 4050mm or 2030mm x 6050mm size with auto dual shuttle table. You can cut pipes and profiles with Ø15-150mm diameters up to 6500mm length.
2 kW, 3 kW, 4 kW and 6kW laser power options.
Speed, sensibility, reliability and low operating cost with sheet loading system, sheet loading-unloading system and more features.
With a single button, you can switch from sheet cutting to tube cutting without needing any other equipment.
CUTTING TABLE
Vento Flex Model has a special cutting table that is used for loading and unloading flat sheet materials and unloading pipe profile materials. The pipe-profile material discharging process is done with the help of a U-shaped groove placed on the table.
The U-shaped groove occupies half a meter of the cutting table. Loading and unloading of flat sheet material can be performed on the remaining part of the table without the need to dismantle the groove.
In cases where a U-shaped groove is required, it can be easily disassembled and replaced with grids and the entire table can be used for loading and unloading flat sheet material.
FEEDING CHUCK
The feeding chuck can hold materials between Ø15-Ø150mm in the center axis precisely. Jaw clamping works with pneumatic drive with adjustable pressure. The profile rotation axis and profile driving axis are servo-motor driven.
FRONT CHUCK
The front chuck can hold materials between Ø15 and Ø150mm precisely in the center axis with 4 supported roller jaws. Jaw clamping works with pneumatic drive system with adjustable pressure.
SUPPORTS
The supports are the supporting elements that are placed in order to prevent collapse and oscillation of the materials during the cutting according to the cross-section and length dimensions of the pipes and profiles entered into the CNC. All settings are made automatically according to the section dimensions.
