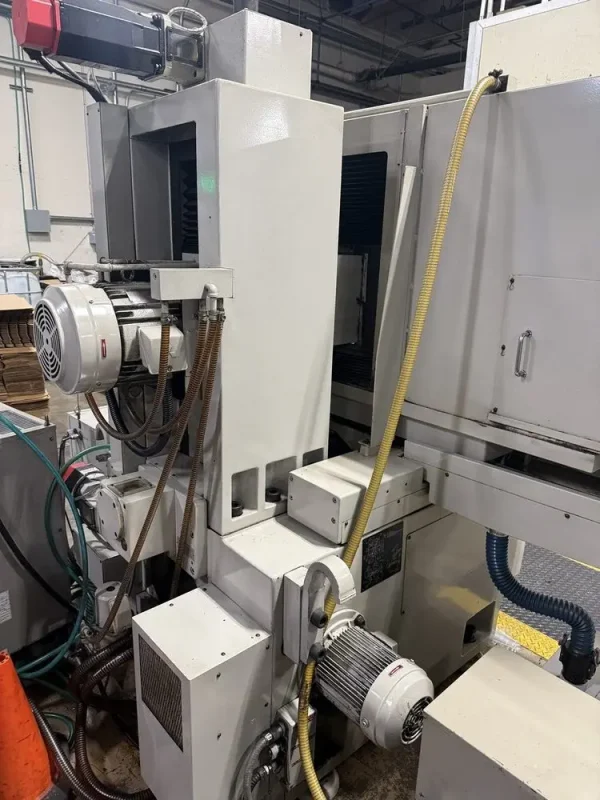

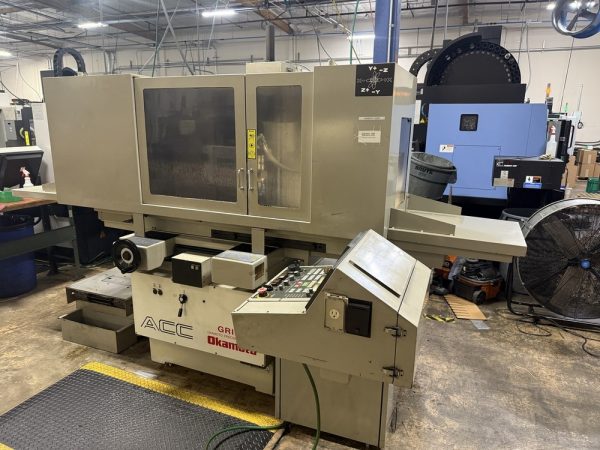

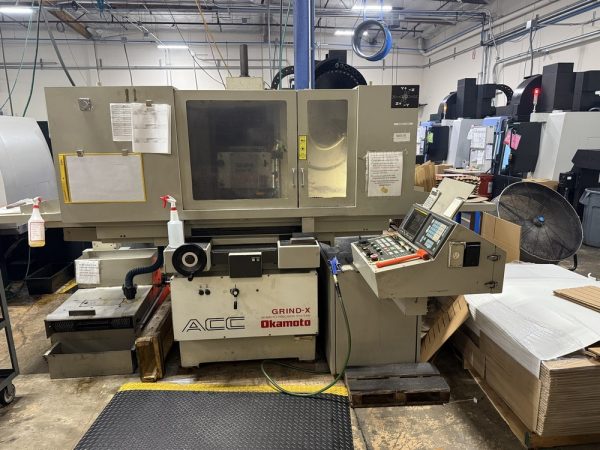

Okamoto 12.24 DXNCP CNC Surface Grinder – Year 1998

Contact us for price

Description

Okamoto 12.24 DXNCP CNC Surface Grinder – Year 1998

Year 1998
Make Okamoto
Model 12.24 DXNCP
Okamoto 12.24 DXNCP CNC Surface Grinder



Table Working Capacity 12 x 24″
Max Distance Under 12”
Wheel to Table Surface 13.6″
Table Load Capacity 925 Lbs (Includes Chuck Weight)
T-Slots 0.7″ x 3″
Max Table Travel 30″
Control Fanuc OM
Table Feed Rate 3 – 82 ft/min
Feed per Handwheel Revolution 1.85″
Crossfeed (Z-Axis) Maximum Saddle Travel 13.3″
Intermittent Traverse Feed (Z-Axis) 0.02 – 0.80 inch/min.
Grinding feed (Z-Axis) 0.001 – 40.0 inch/min.
Rapid Feed (Z-Axis) 40.0 inch/min.
Jog Feed (Z-Axis) 0 – 40 inch/min.
Manual Pulse Generator (Z-Axis) 0.00001, 0.0001, 0.001 inch
Vertical Feed (Y-Axis) Grinding Feed 0.001 – 40.0 inch/min.
Rapid Feed (Y-Axis) 40.0 inch/min.
Jog Feed (Y-Axis) 0 – 40.0 inch/min.
Manual Pulse Generator 0.00001, 0.0001, 0.001 inch

Features

(2) Point Diamond Dressing Tool with Holder 9” Color Graphic CRT Chuck Size
Built-In Okamoto Conversational Programming System Full Table Enclosure
Instruction Manual & Inspection Sheets Oil Cooled Wheelhead
Splash Cover with Coolant Nozzle Table Back Guard
Built-In Chuck Controller Leveling Bolts with Plates
Necessary Tools & Tool Box Hydraulic Oil Temperature Regulator
Automatic Lubrication System
