Description
Okuma LT2000EX-3T3M – Year 2012
| Turning length | 130 mm |
|---|---|
| Turning Ø | 210 mm |
| Ø above the bed | 400 mm |
| Length between centers | 990 mm |
| Type of CNC | CNC Lathe |
| X-axis | 205 mm |
| Z-axis | 400 mm |
| Turning speed | 6000 rpm |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3745.0 × 2467.0 × 2260.0 |
| Weight | 8500 kg |
Okuma LT2000EX-3T3M
turning center from 2012
Basic parameters:
Passage over the support Ø400 mm
Maximum turning diameter Ø210 mm
Maximum turning length 130 mm
Distance between spindle faces 990 mm
Axes:
in the XA axis 205 mm
in the XB axis 205 mm
in the XC axis 205 mm
in the ZA axis 400 mm
in the ZB axis 730 mm
in the ZC axis 400 mm
in the W axis (right spindle) 760 mm
in the C1 axis 360 °, stroke: 0.001 °
in the C2 axis 360 °, stroke: 0.001 °
Spindles:
Type of electro-spindle drive
Left spindle revolutions 50 – 6000 rpm
Right spindle revolutions 50 – 6000 rpm
Left spindle tip Ø140 mm (flat)
Right spindle tip Ø140 mm (flat)
Left spindle passage Ø62 mm
Right spindle passage Ø62 mm
Max torque of the left spindle 183 Nm
Max torque of the right spindle 183 Nm

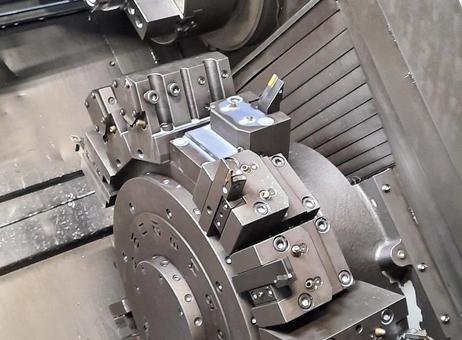

Tool heads:
Number of heads 3
Head type M V16 BMT
Number of tools 16
Tool shaft height 20 mm
Shank diameter Ø32 mm
Spindle speed 45 – 6000 rpm
Max torque 22.5 Nm
Feeds:
Rapid traverse:
in the X axis 30 m / min
in the Z axis 40 m / min
in the W axis 32 m / min
in the C axis 200 rpm
Drives:
Left spindle drive power 11.5 / 7.5 kW (5 min./constant)
Right spindle drive power 11.5 / 7.5 kW (5 min./constant)
Drive power for 5.5 / 3.7 kW tool head spindles (2 min./constant)
Passage drives:
in the XA axis BL 3.5 kW
in the XC BL 3.5 kW axis
in the XB axis BL 2.8 kW
in axis ZA BL 3.5 kW
in the ZB axis BL 3.5 kW
in the ZC axis BL 3.5 kW
Cooling system pump 0.8 kW (x4)
Overall dimensions, weight:
Height 2260 mm
Occupied area of 3745 x 2467 mm
Weight 8500 kg
Components:
coolant supply system (4 x 0.8 kW pump)
processing space lighting, waterproof fluorescent lamp
full covers of the machining space
double foot pedal for opening and closing the handle (x2)
door lock
chip tray, side discharge
machine status lamp (two-color) in place of the status indicator
foundation shims and leveling screws
B-1 lubrication monitor
chuck jaws blow (x2) –
function to change units inch / metric
Pitch error compensation for X and Z axes
detection of the detail falling out of the holder
opening / closing the handle at the spindle speed
hooks for carrying the machine
compliance with the CE and EMC declaration
IEC standard
adaptation of the power source to local conditions (CE compliant transformer)
Load Monitor overload monitor for axis and spindle
OSP-P200L CNC control with 3D-ME function package
SPECIFICATION OF ADDITIONAL EQUIPMENT of the exposed machine:
LEFT spindle with increased passage Ø80 mm, A2-6, 50-5000 rpm, max 183 Nm
through Ø70 mm hydraulic cylinder for the left spindle
Ø43 mm through hydraulic cylinder for the right spindle
6 “three-jaw chuck for the right spindle
increased power for the left spindle: 22/15 kW
increased power for the right spindle: 22/15 kW
bar feeder interface
graphic interface for external applications – API
