Description

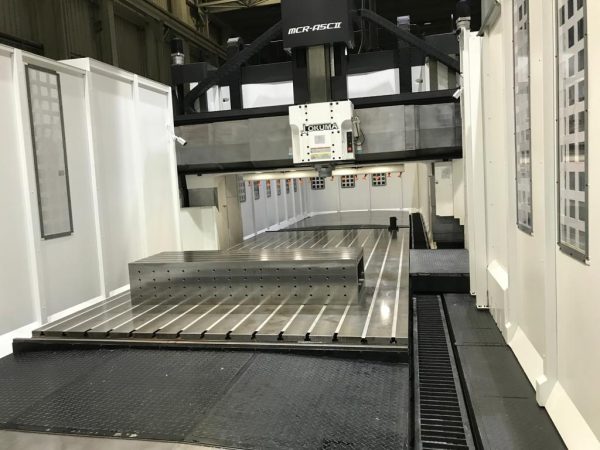

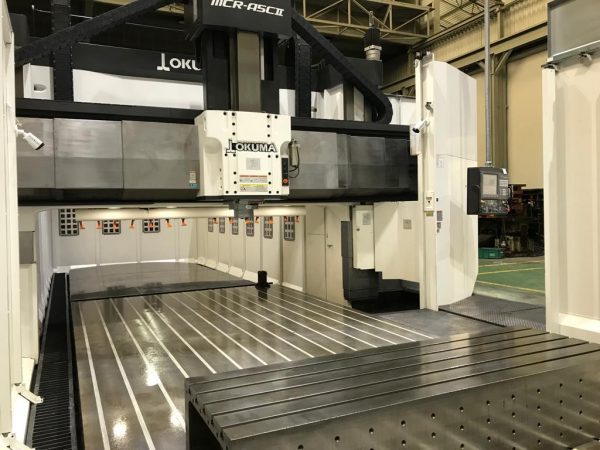

Okuma MCR-A5CII – Year 2015
CNC Double Column Machining Center
| Type | CNC Double Column Machining Center |
| X Axis | 6700 mm |
| Y Axis | 4100 mm |
| Z Axis | 800 mm |
| CNC type | OSP-P300M |

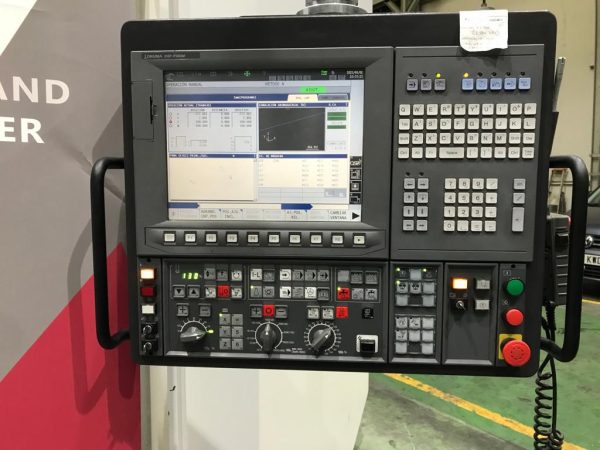

CNC controller: OSP-P300M
Axes
X-axis travel mm: 6.700
Y-axis travel mm: 4.100
Z-axis travel mm: 800
W-axis travel mm: 1.200
Distance spindle nose – table surface mm: 1.800
Rapid traverse m/min: X: 30; Y: 30; Z: 20
Feed rate mm/min: 1 to 10.000
Crossrail traverse m/min: 3

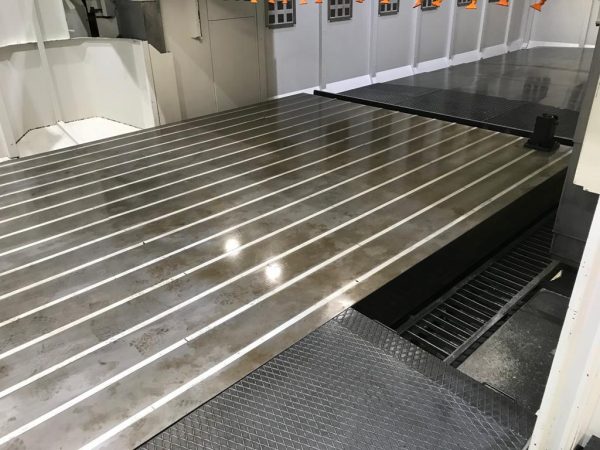

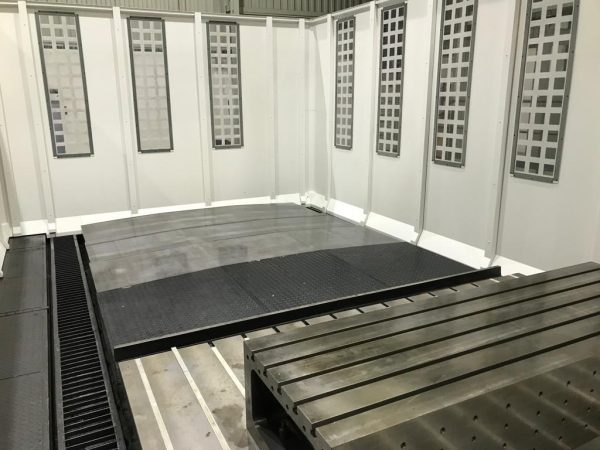

Worktable
Table dimensions mm: 3.000×6.500
Max. workpiece weight kg: 37.000
Distance between columns mm: 3.650
T-slots: 24 H 7 x 15
Height from machine bottom mm: 950

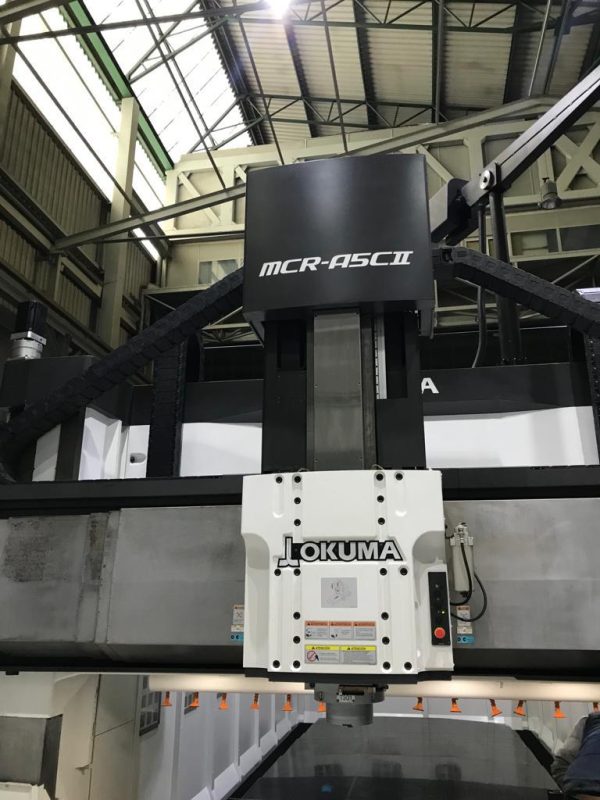

Vertical spindle, 1o
Extension attachment head, L150
Spindle speed rpm: 6.000
Spindle drive power kW: 26
90o Angular Head (*Y-axis limitation exists)
Minimum C-axis indexing angle: 1o
Gear lubrication: Oil bath
Spindle speed rpm: 3.000
Spindle drive power kW: 11
Universal index head (B-/C-axis)
Minimum C-axis indexing angle: 1o
Minimum B-axis indexing angle: 1o
Gear lubrication: Mist
Spindle speed rpm: 6.000
Spindle drive power kW: 7,5
Cooling
Cooling through the Spindle Center bar: 20
Tool system
Tool holder: MAS BT-50
Tool magazine slots: 50
