Description

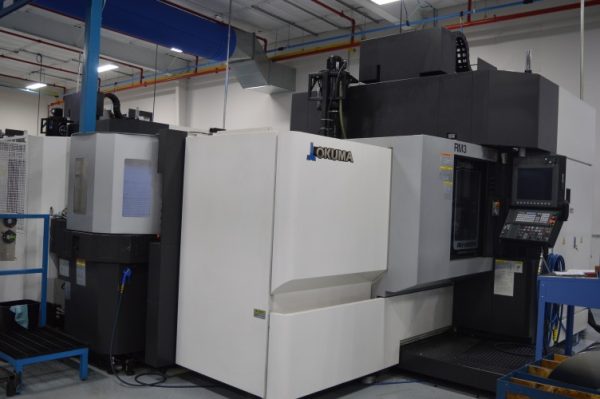

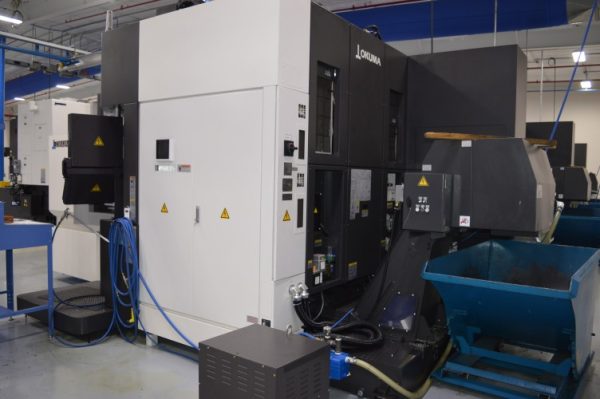

Okuma MU-8000V CNC MultiTasking Machine – Year 2016
Brand: Okuma
Model: MU-8000V
Year: 2016
Approx. Shipping Weight: 36,900 Lbs.
Approx. Shipping Dimensions: 208″ L x 118″ W x 143″ H
Loading Fee: Rigging Required
Specifications:
Max Machining Volume: 39.37″ x 21.65″
Table Size: 24.80″
X Axis Travel: 36.42″
Y Axis Travel: 41.34″
Z Axis Travel: 23.62″
A Axis Travel: +90 to -90 (degrees)
C Axis Travel: 360 (degrees)
Table Surface to Spindle Nose: 7.87″ to 31.50″
Table Size: 31.50″ x 24.80″
Max Work Size: 39.37″ x H21.65″
Floor to Table Top: 47.64″
Max Load Capacity: 1,540 lbs
Spindle Speed: 12,000 RPM
Tapered Bore: 7/24 taper No. 50
No. of Spindle Ranges: Stepless
Bearing Diameter: 3.54″
Rapid Traverse X-Y-Z: 1,968 IPM
Rapid Traverse A-C (deg): A (30 min) C (90 min)
Cutting Feedrate X-Y-Z: 1,968 IPM
Spindle (10 min/cont): (15/10) (35/25)
Feed Axes: X: 6.9 HP, Y-Z: 4.7 HP, A: 6.1 HP × 2 , C: 9.6 HP
Tool Shank: MAS BT.50
Pull Stud: MAS2

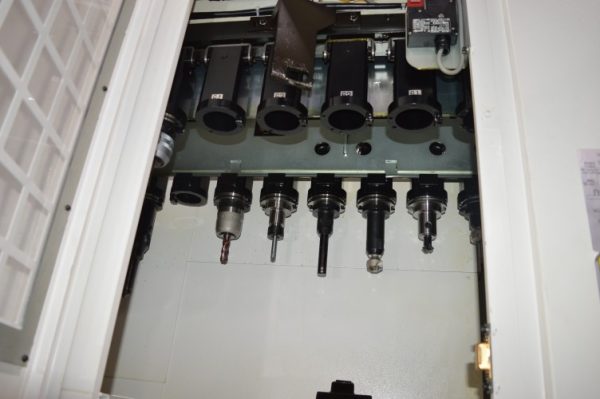

Tool Capacity: 64 ATC
Max Tool Diameter: 3.94″/5.98″
Max Tool Length: 15.75″
Max Tool Weight: 26.4 lbs
Tool Selection: Memory random (matrix magazine is fixed address system)
Running Hours: 3508
Operating Hours: 1055
Cutting Hours: 676
Spindle Hours: 604
Voltage: 220V/480V/3PH
Equipped With:
OSP-P300M-H Controller, RA11 HP COOLANT, 2 PALLET w/ APC, 64 ATC, PROBE & TL BK, CHIP CONVEYOR, TRANSFORMER & MIST COLLECTOR
Machine is under power and can be demoed upon request.
