Description

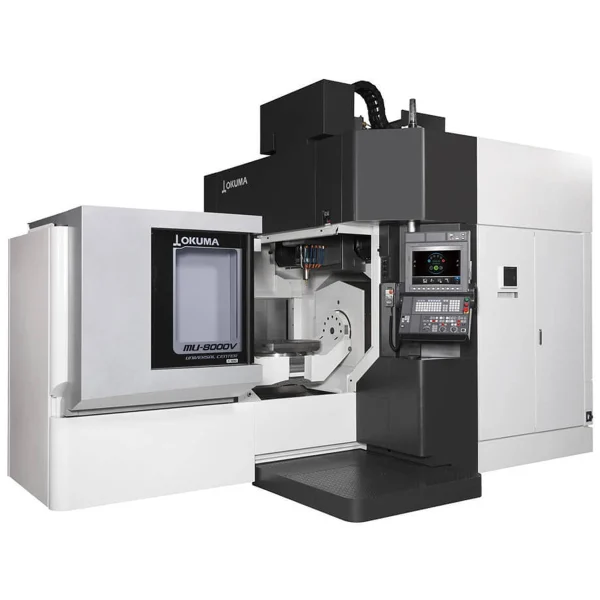

Okuma MU-8000V-L CNC MultiTasking Machine – Year 2017
Condition Used
Year 2017
Machine control Okuma OSP-P3005A-H
Table size31.5″x24.8″
Maximum table load1,540 lbs
Maximum workpiece diameter / height39.37″ / 24.8″
X-axis travel 36.42″
Y-axis travel 41.34″
Z-axis travel 23.62″

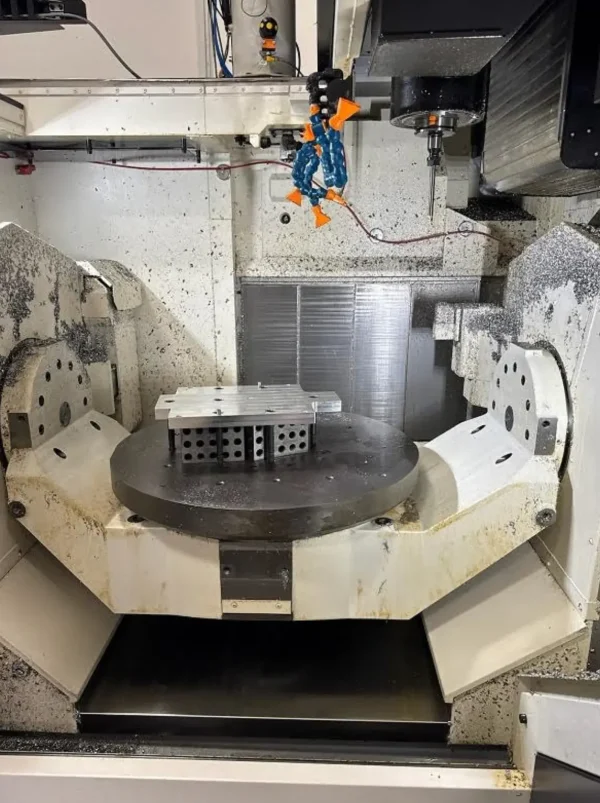

A-axis travel +/- 90 Degrees
C-axis rotation 360 Degrees
Spindle speed 12,000 RPM
Spindle taper HSK A100
Spindle motor 35 HP / 25 HP
Tool magazine capacity 48 ATC
Maximum tool diameter / length / weight3.94″ / 15.75″ / 26.4 lbs
Machine dimensions 208″x118″x143″
Machine weight 36,900 lbs
Rapid traverse rates 1,968 IPM
USED –2017 Okuma MU-8000V-L 5 axis Vertical Machining Center
Contact Rockfish Machinery for Financing and for inspection

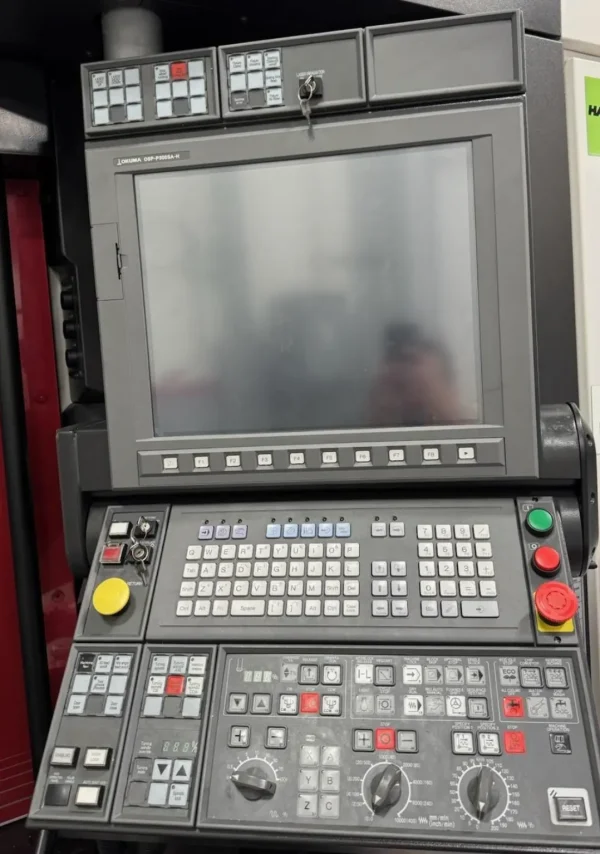

Okuma OSP-P3005A-H
Axis Travel 39.37” in X, 21.65” in Y, 21.65” in Z, 130” in A
15,000 RPM , HSK A100 Spindle & Side Mount 48 ATC
Blum Tool Break detection
Auto Gauging
Gear Cutting Pkg
Laser Oscillation Device 4KW – TruDisk 4002
Powder Nozzles, Powder Feed unit, Powder Conveyor
Chiller for Laser Oscillation Device
Dust Proof for Axis
Dynamic Fixture Offset
Riedel Chiller

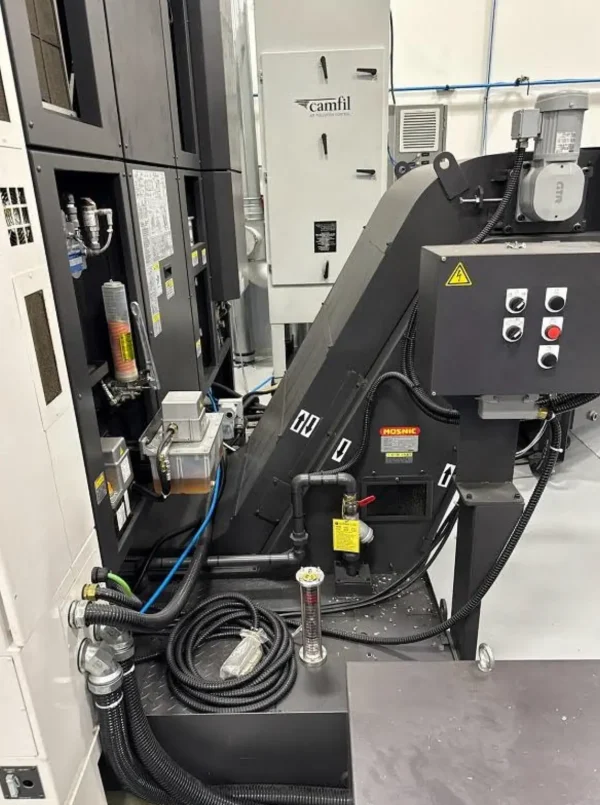

Chip Conveyor with Right Side Disposal
Dust Collection
The machine is loaded with options
Under 2000 Cut hours
