Description
OKUMA MX-45VAE – Year 1997
CNC Vertical Machining Center
Make: Okuma
Model No.: MX-45VAE
Year: 1997
Condition: Used – Good
Features:
Okuma OSP7000M Series CNC Control
Y Axis Travelling Column
20 Station Automatic tool changer
7,000 RPM Spindle
40 Taper Spindle
Touch Probe
RS-232 Port
MPG Handwheel Control
Rigid Tapping

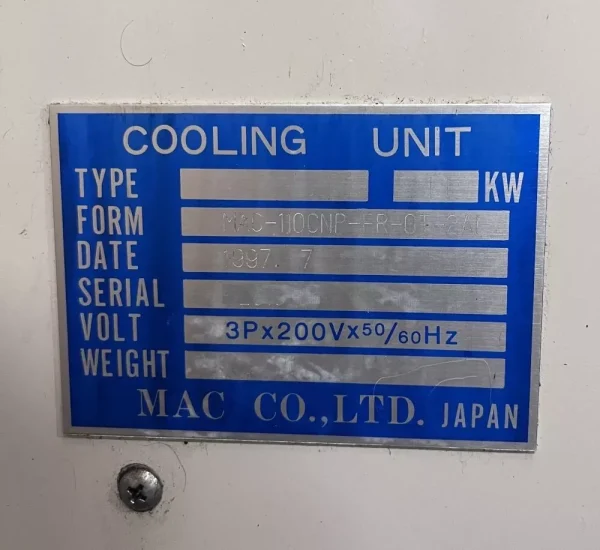

Spindle Chiller Unit
Coolant Tank
Levelling Pads
Lubrication System
(2) Tool Holders
Machine Comes with Original Paint
Specifications:
Travels:
X-Axis: 30.00″
Y-Axis: 18.11″
Z-Axis: 17.72″
Spindle Nose to Table (Min.- Max.): 6.29″ – 24.01″
Rapid Traverse Rates X, Y Axis: 1181″ Per Minute
Rapid Traverse Rates Z Axis: 787″ Per Minute
Cutting Feed Rates: 394″ Per Minute
Table:
Length: 39.37″
Width: 18.11″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1102 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 7,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 20 Station Side Mounted
Tool Weight: 17.6 lbs
Max Tool Dia: 3.95″
Max Tool Length: 9.84″
General:
Air Required: 80 psi, 4 scfm
Power: 220v / 3-Phase / 22 kva
Overall Dimensions: 90″ x 104″ x 106″ High
Weight: 12,125 lbs
Comes as shown in pictures..
