Description

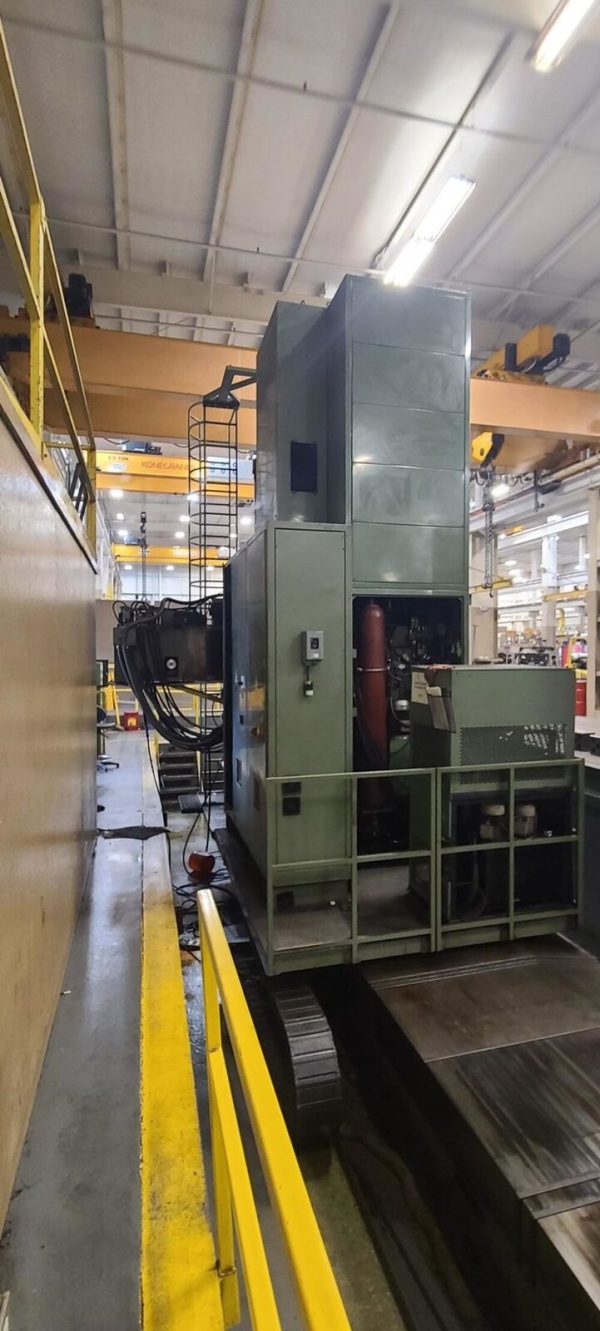

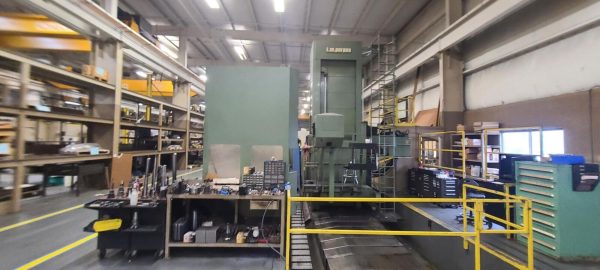

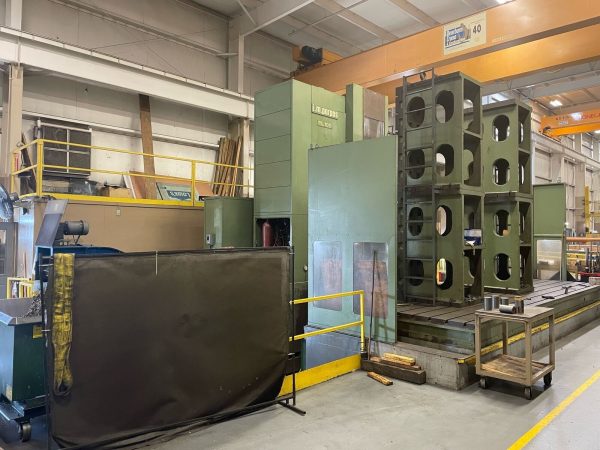

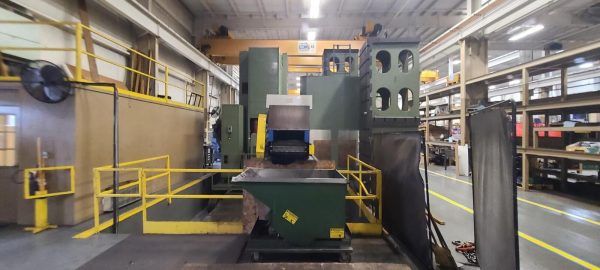

Parpas ML100 – Year 1999
CNC Floor type Boring Machine 6 Meters
Table: 7000 x 2500 mm (275.59″ x 98.42″)
Working Capacity:
Longitudinal Travel Stroke X: 6000mm (236.22″)
Transverse Travel Stroke Z: 1000mm (39.37″)
Transverse Travel Stroke W: 650mm (25.59″)
Vertical Travel Stroke Y: 3000mm (118.11″)
Working Feed:
At High Speed: 8000mm/1′

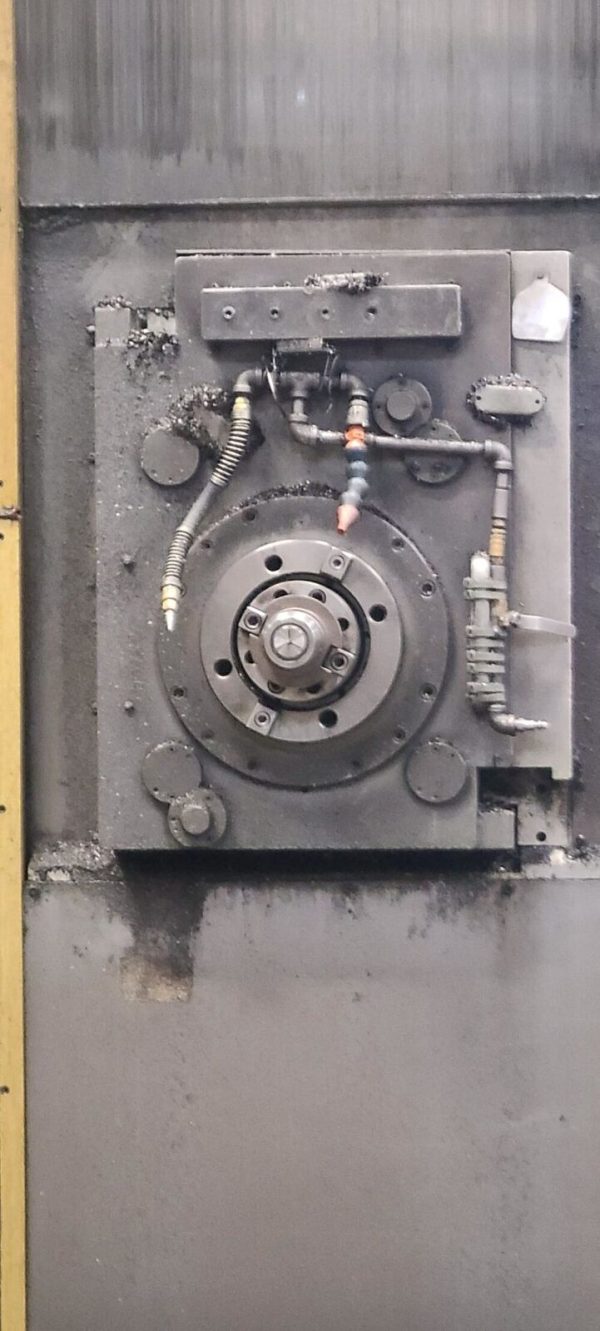

Spindle Boring Bar:
Spindle Nose: ISO 50
Spindle Diameter: 130mm (5.12″)
Standard Speed Range: 2500 r.p.m.
Power Of Spindle Drive Motor: 30kW / 40HP
Universal Head Two Position Horizontal/Vertical:
Automatic Type: TU01
Spindle Nose: ISO 50
Continuous Head Position Rotation “A” Axis: +/- 120°
Voltage: 460 3ph 115 Amps
Equipped With:

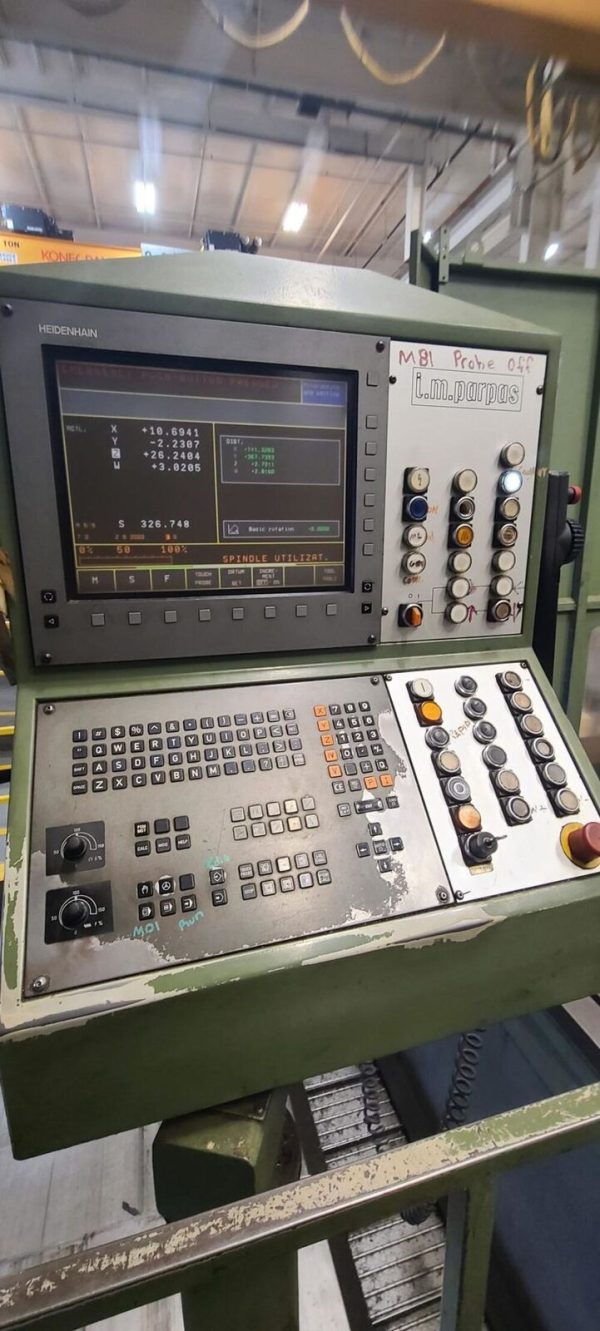

Heidenhain Control
