• Parveau 920 CE Tenoning Machine – Year 2001

    Contact us for price

    Categories: ,

    Description

    Parveau 920 CE Tenoning Machine – Year 2001

    Nbr of cutting units 1

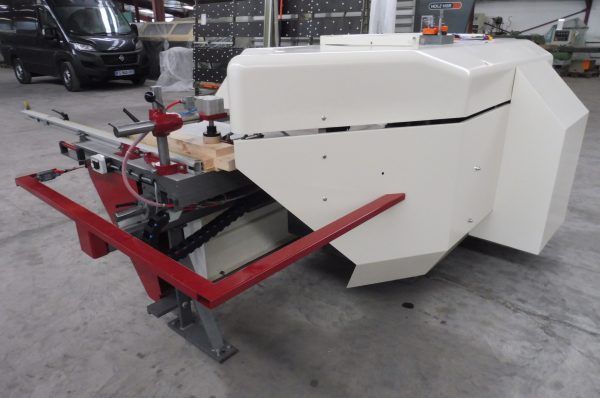

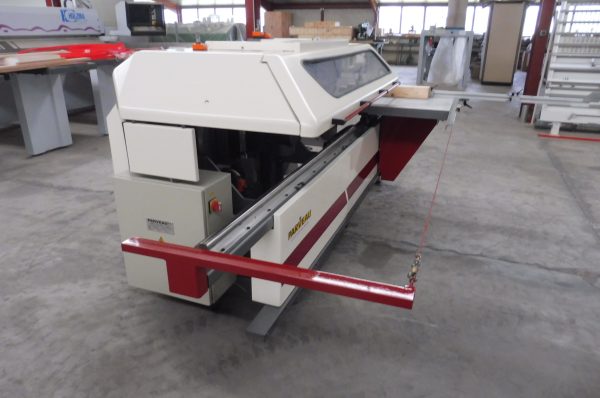

    Parveau 920 CE Tenoning Machine
    Length x width x height 3300.0 × 1700.0 × 1500.0
    Weight 1050 kg

    Tree tenoner Parveau series 920 CE
    Year 2001.
    Cast iron frame, cast iron table, polyester cover

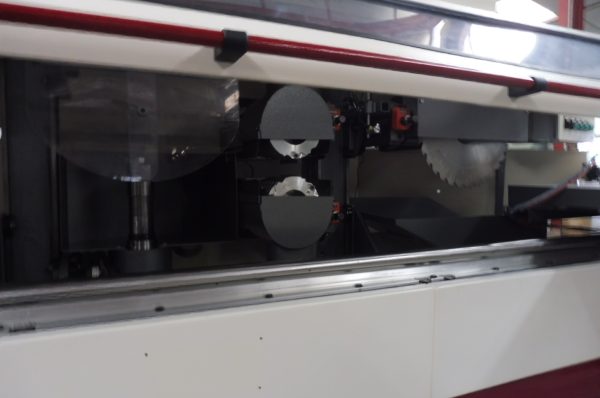

    Composition: 1 saw / 2 unwinders / 1 spindle moulder
    All movements are manual.

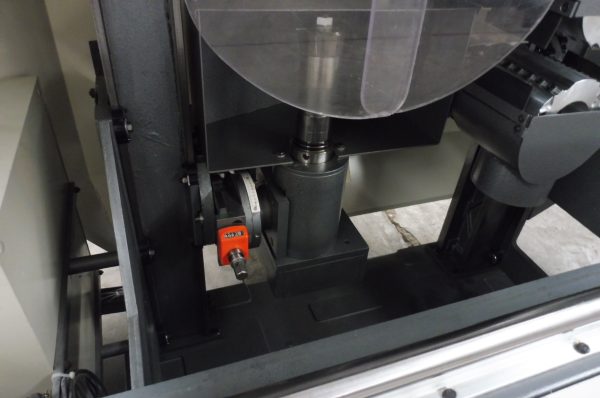

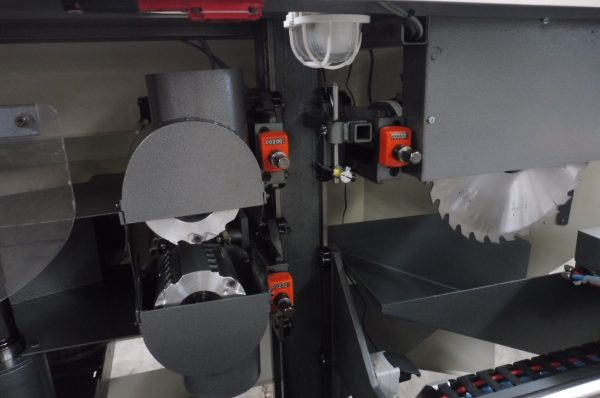

    Indications by SIKO counter to 1/10th,
    Movement of the saw, lateral movement of the bottom and top unwinder.
    Height movement of the lower and upper unwinder and simultaneous movement of the 2 unwinders.

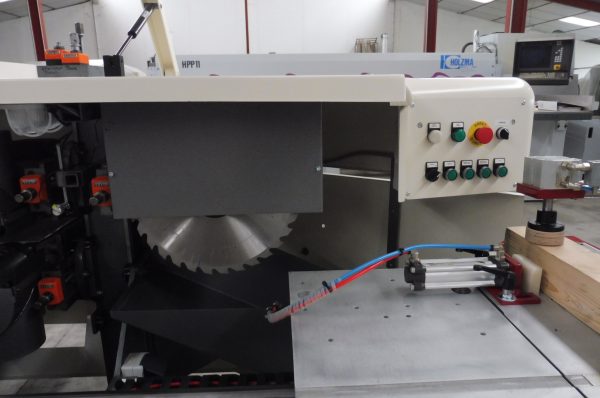

    *1 saw – 3kw/ 4Hp/600v motor + electric brake
    Rotation speed 3000 rpm
    Blade diameter 400 mm, bore 30
    Cutting height 150mm
    Suction outlet diameter 120 mm

    * Lower unwinder diameter 155mm L=150mm with disposable pads
    Plates of 14 x14x2
    Maximum advance of one unwinder compared to the other 60 mm
    3 Kw/4Hp/400 V motor + electric brake
    Rotation speed 3000 rpm
    Suction outlet diameter 150mm
    Line laser on unwinder

    * Upper unwinder diameter 155mm L=150mm with disposable pads
    Plates of 14 x14x2
    Maximum advance of one unwinder compared to the other 60 mm
    3 Kw/4Hp/400 V motor + electric brake
    Rotation speed 3000 rpm
    Suction outlet diameter 150mm

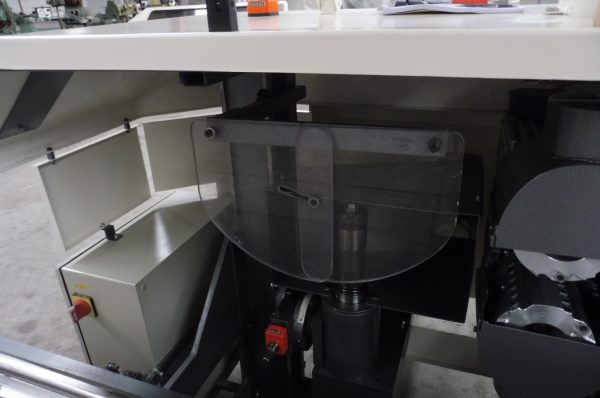

    * Spindle arbor diameter 50mm L=180mm
    Maximum diameter of the tools in the casing 350mm
    Suction outlet diameter 120
    2-speed motor, 3.3kw/4.5kw/400V
    2 rotation speeds 3000 rpm / 6000 rpm

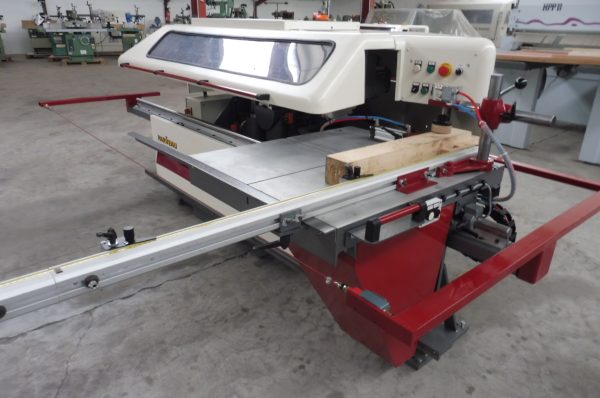

    Double cast iron table of 0m90 x 0m80
    Manual movement of the table
    Pneumatic presser on column +1 horizontal
    Alu ruler 1m75 extendable up to 2m60 with 2 retractable stops
    inclination of the ruler from 0 to 45° with marks

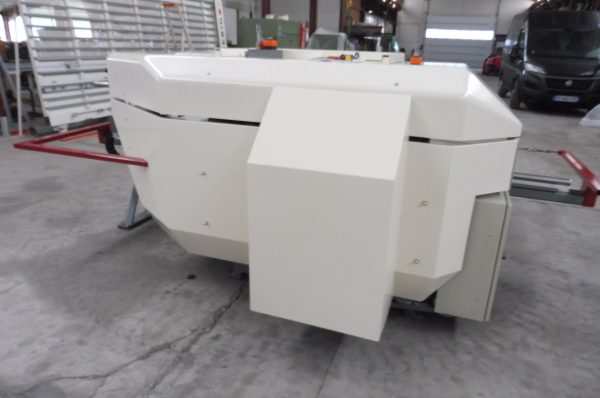

    Polyester cover with timed opening
    Service keys, instructions for use and commissioning
    Electrical plans
    3-phase power supply + Neutral + Earth
    Installed power: 15 Kw
    Pneumatic supply, 6 bar minimum (pressure switch)
    Dimensions with cabinet: 3m30 x 1m70 H=1m50
    Weight: 1050kg
    Machine from a high school
