Description

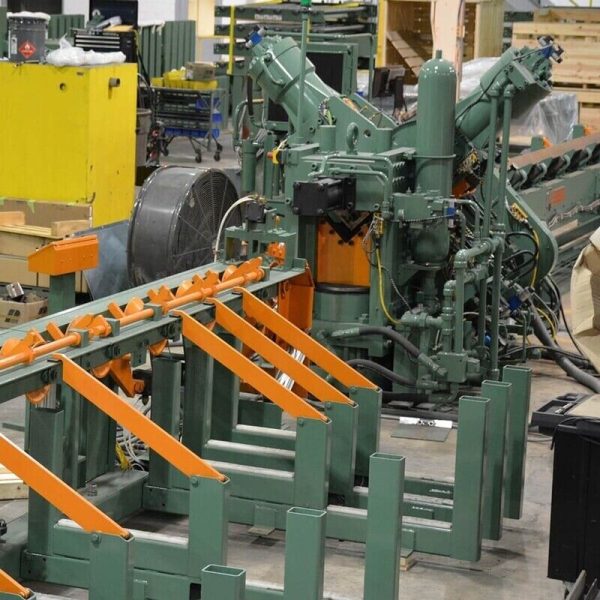

PEDDINGHAUS APS 2063 TOWERMASTER Angle Processing – Year 2022
CNC ANGLE SHEARING AND PUNCHING CNC LINE
This Towermaster was designed specifically for high-volume tower production.

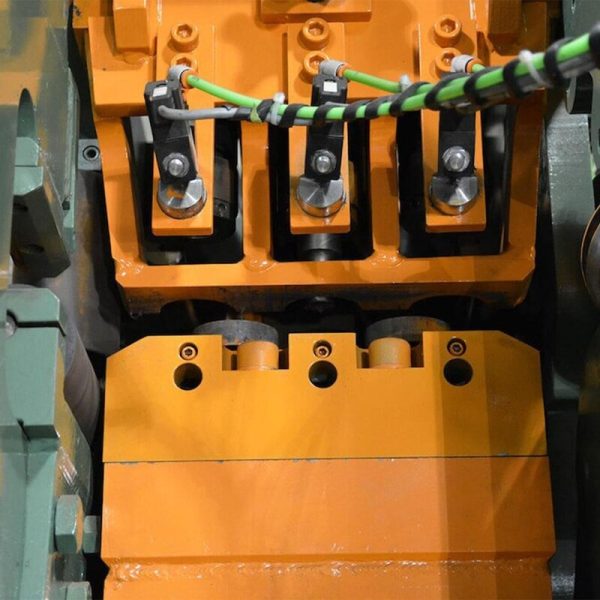

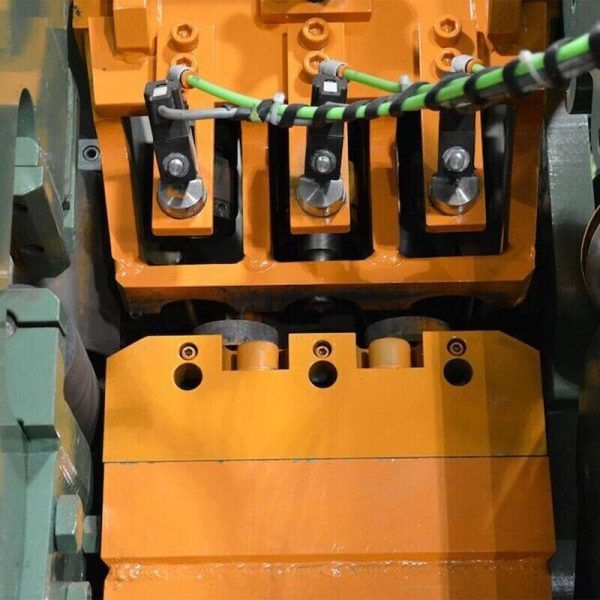

Two punch cylinders each maintain three individual punch sizes to minimize tool changes and expedite tower production.
140′ OF INFEED/OUTFEED AUTOLOADING
COME INSPECT UNDER POWER OR BY FACETIME
Punch capacity 112 tons (101 metric tons)
Punch stroke 2-1/8″ (53 mm)
Maximum material thickness 1″ (25 mm)
Maximum hole size 1-1/4″ (31.75 mm)
Shear capacity 8 x 8 x 1″ (200 x 200 x 25 mm)
Shear tonnage 506 tons (459 metric tons)
Motor 40 HP (29.8 kW)
Year 2022
Operating hours 251
