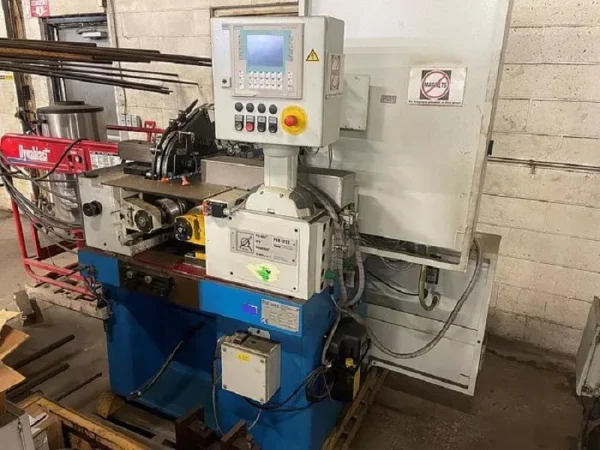

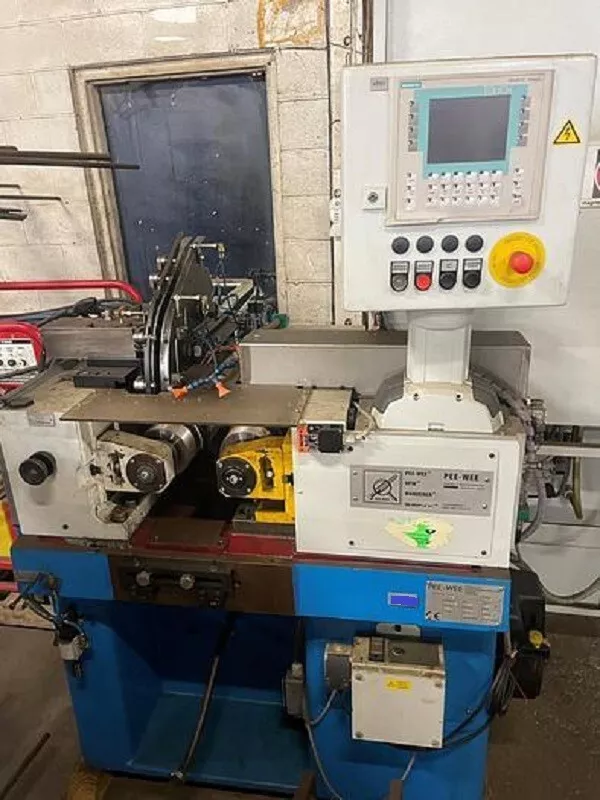

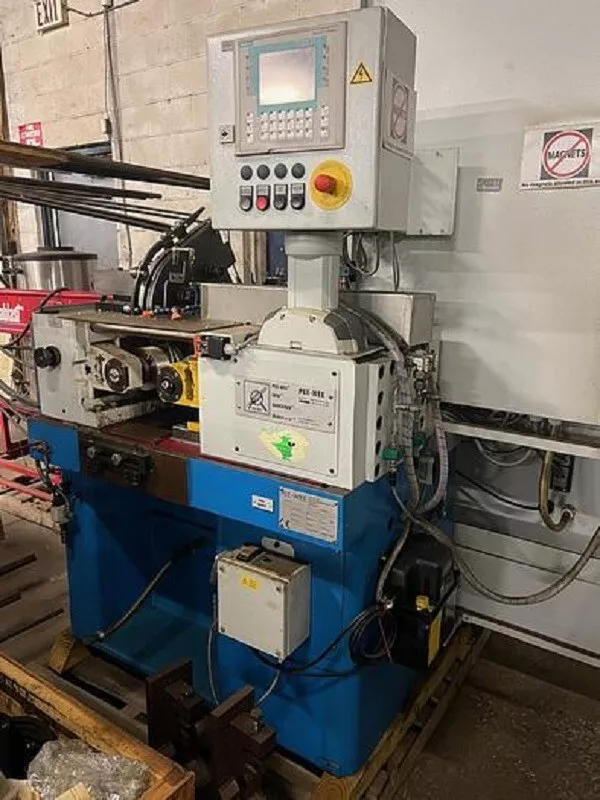

Pee-Wee P15 PLC Thread Roller – Year 2015

Contact us for price

Description

Pee-Wee P15 PLC Thread Roller – Year 2015
Forming force: 10-150 Kn

Feed of the slide: .01 – .23″/sec.
Pitch to be rolled: Max .31″
Shaft rotation: 20 – 80 rpm.
Support length: .03″
Cylinder stroke: 0 -.39″
Shaft diam: 2.12″
Roll width: 6.29″
Work piece diameter: .19 – 1.96″

-EQUIPPED WITH-

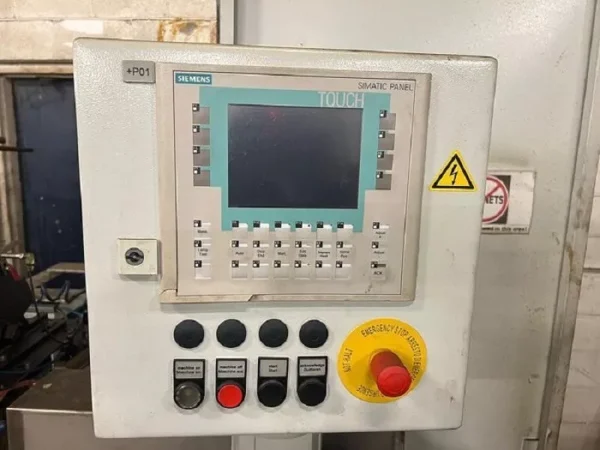

SIMATIC Siemens panel PLC Control

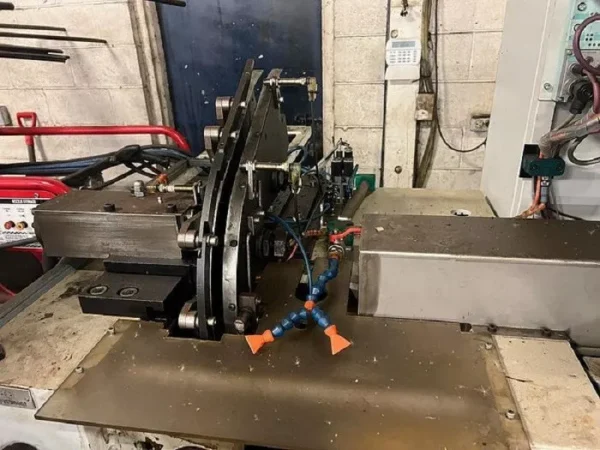

Part Separator
Segment Head (Four Nests)
Unloading OK/NOK/Sorting Gate
Straight Vibrating
Unloading Line, AC Servo Drive for E-Pitch
Measuring of Linear Movement of one tool
Work Piece Fixture
Guide Support Tapping Fixture
Burnishing Tolls in PW 3000
Automated Lubrication System
