Description

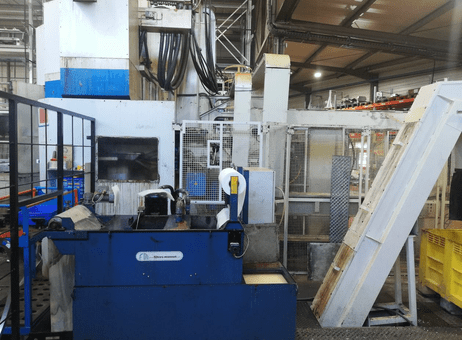

Pietro Carnaghi AC 12 – Year 1992
| Plate diameter | 1250 mm |
|---|---|
| Working height | 1250 mm |
| CNC type | SIEMENS 840D-NCU572.5-64Mb |
| Max piece weight | 6000 kg |
| Rotation speed | 333 rpm |
| Motor power | 60 kW |
| Overhauled | no |
Machine available now.
Brand: Carnaghi
Model: AC 12 CNC
Machine Specification:
Table ø 1.250 mm.
Max. Working ø 1.600 mm.
Max. Table distance under turning tool 1.500 mm.
Max. Turning height 1.250 mm.
Max. Weight on table 6 tons.
X axis -75 / + 1.750 mm
Z axis 1250 mm
C axis 360° table
turning motor power 60 kw.
Table speeds – n. 2 ranges; 3 – 333 rpm.
Spindle speed 0 – 1000 rpm
spindle motor power 22 kw
vertical travel 1.000 mm.
Ram size 250 x 250 mm
working feeds 0 – 2000 mm/min. Nc: siemens 840d-ncu572.5-64mb 60 tool atc total weight 23 tons.
Built in 1991 sell with an automatic pallet changer 8 pallets 10 pallets stations
