Description

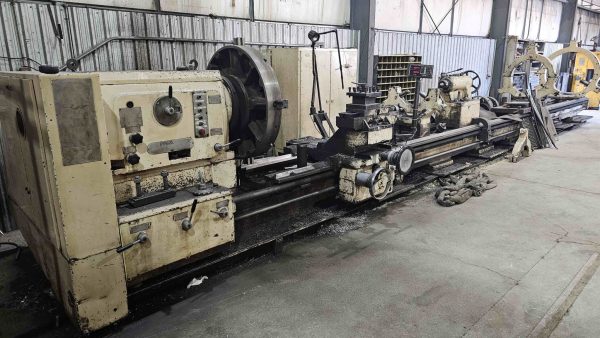

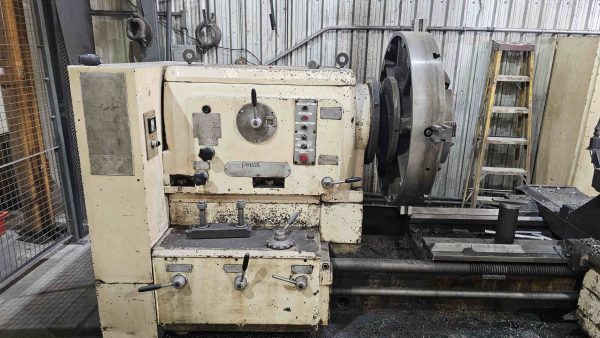

Poreba TR-135B1/10M Engine Lathe 10 Meters
Machine is in Excellent Condition & Ready For Inspection,
Specifications:
Model………TR-135B1/10M
Year……………………1978
Swing Over Bed……54” (1372mm)
Swing In Gap………65”
Swing Over Carriage……42”
Between Center………407”(10338mm)
Spindle Bore……………4.7”

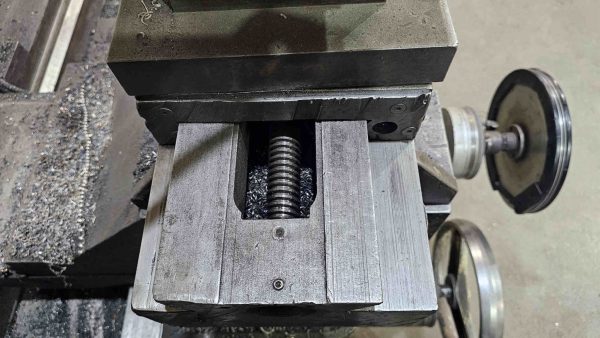

Cross Slide Travel…….20.7”

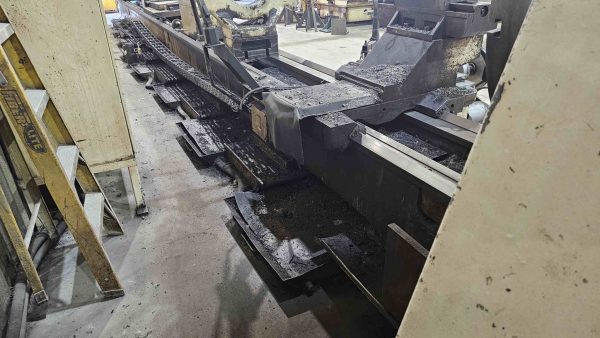

Width Of Bed…………26”
Spindle Speeds (24)……5 – 500 RPM
Weight Between Center Without Steady……20,000 LBS
Weight Between Center With 1 Steady……..22,100 LBS
Weight Between Center With 2 Steady……..26,500 LBS
Longitudinal Feed Rates…………0.0035” – 0.400” TPR
Cross Slide Feed Rates…………0.0017” – 0.200” TPR
Top Slide Feed Rates……………0.0008”- 0.100” TPR
Inch Threads (61)………1/2 – 60 TPI
Metric Threads (62)……1 – 120 MM/REV
Main Motor……………55 HP
Electrics……550V/3PH/60HZ
Made In Poland
Approximate Weight……………45,000 LBS
Approximate Electric Cabinet Dimension…50”L x 25”W x 75”H
Approximate Overall Dimensions…………..507”L x 83”W x 80”H
Equipped With:

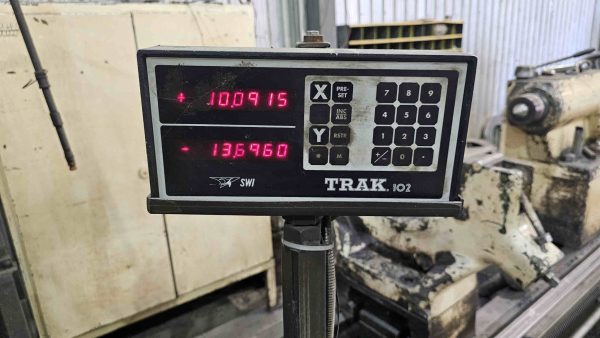

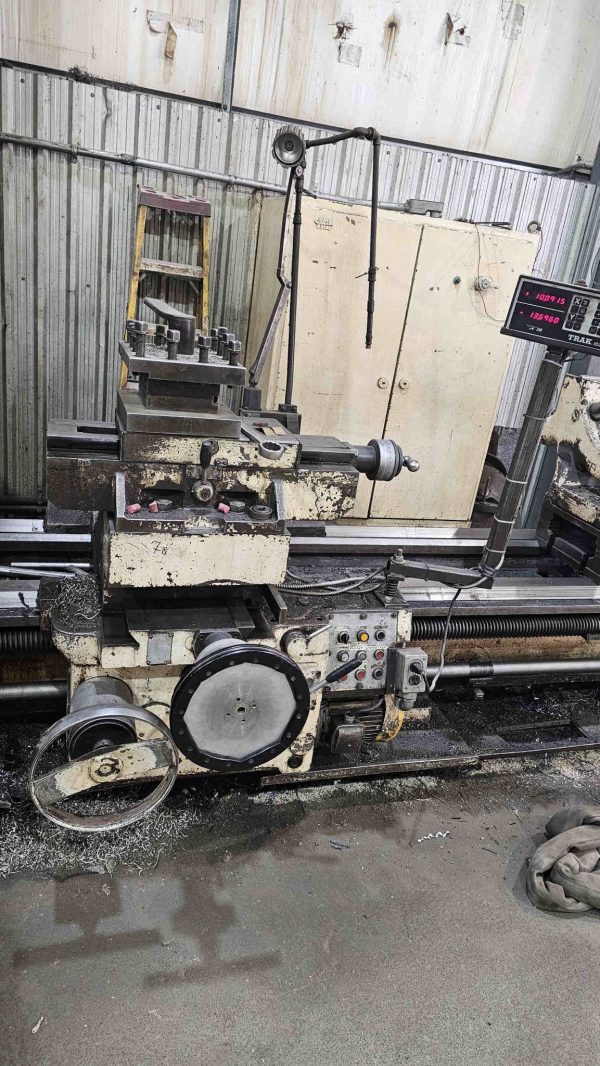

Trak 102 Two Axis Digital Readout,
Power Compound,
Rapid Feeds,

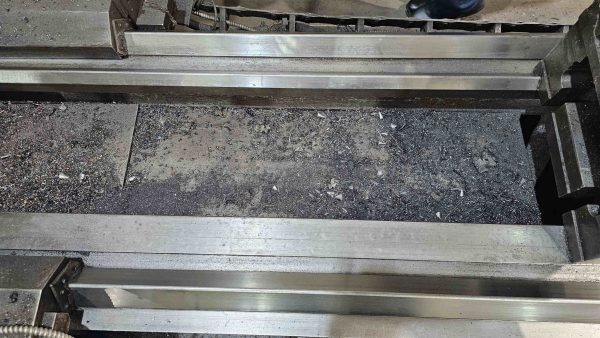

Harden Ways,

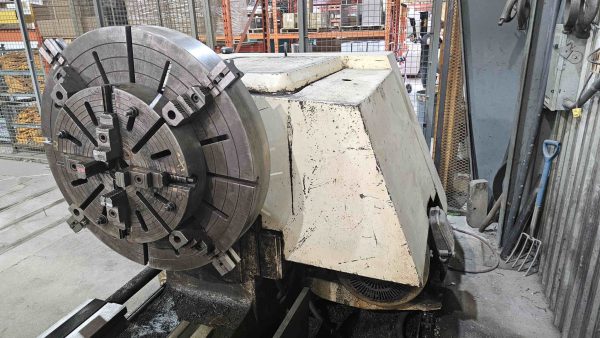

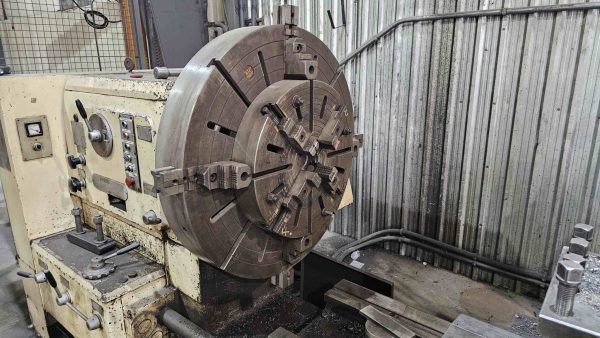

40” Four Jaw Chuck,

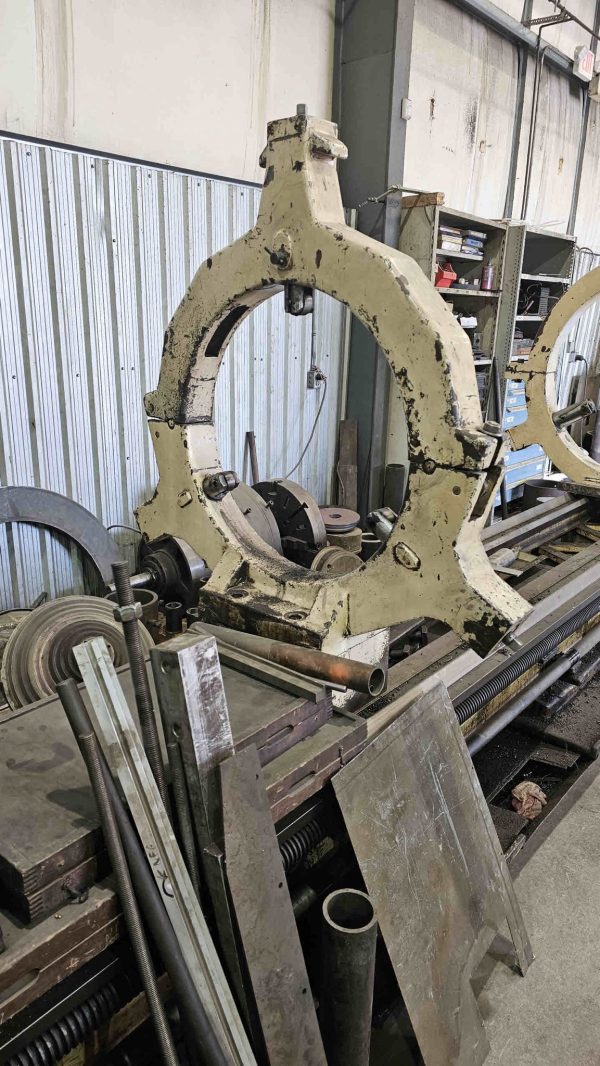

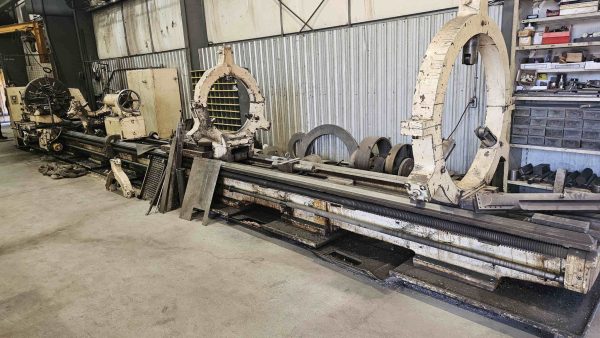

43”/27.5”/18” Steady Rests,

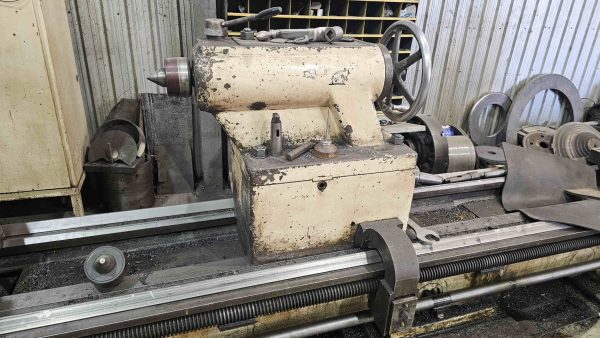

Manual Tailstock, Coolant System
