Description

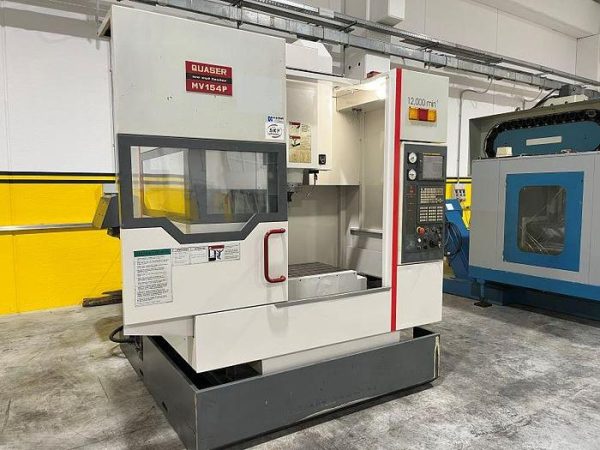

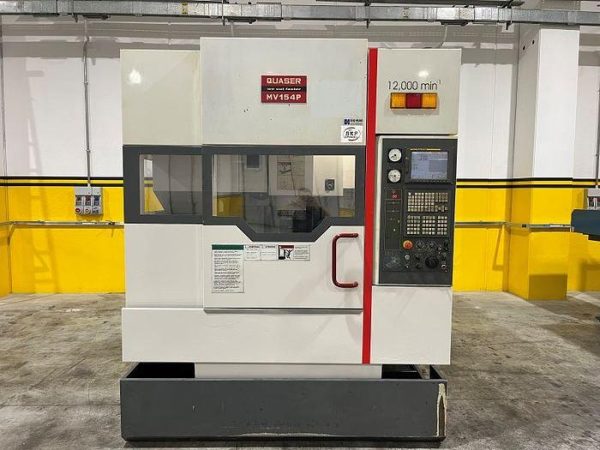

Quaser MV 154 P CNC Vertical Machining Center – Year 2005
CNC FANUC 18i – MB
TABLE DIMENSION: 900 x 500 mm
MAX. WEIGHT ON THE TABLE: 700 Kg
Travels:
X: 762 mm
Z: 560 mm
Y: 530 mm
TABLE SPINDLE NOSE DISTANCE: 150 – 710 mm
SPINDLE CONNECTION: ISO 40
SPINDLE RPM: 12,000 rpm
WATER THROUGH THE TOOL (HIGH PRESSURE)
RAPID: 40 m/min
WORK FEED: 25,000 mm/min
TOOL WAREHOUSE: 30
CHIPS CONVEYOR
WEIGHT KG. 7,000
YEAR OF FIRST INSTALLATION 2005
