Description

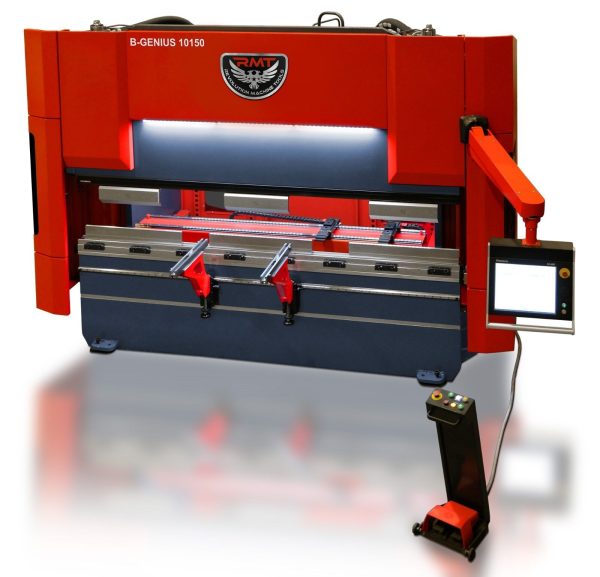

RMT B-GENIUS 10150 – CNC Press Brake 350 Ton
Condition : New
From Stock or Build
|
MACHINE DIMENSIONS |
||
| Overall Bending Length (A) |
Ft/Inch |
14’ 1” |
| Distance Between Sideframes (B) |
Ft/Inch |
12’ 5” |
| Stroke (C) |
Inch |
15” |
| Daylight (D) |
Inch |
24.8” |
| Throat Depth (E) |
Inch |
20.1” |
| Table Height (F) |
Inch |
35.6” |
| Table Width (G1) |
Inch |
6” |
| Overall Height (H) |
Inch |
127” |
| Overall Length (L) |
Inch |
203” |
| Overall Width (W) |
Inch |
81” |
| Approximate Weight |
Lbs |
50,089 |
| Oil Capacity |
Gallons |
79 |
| Main Motor |
HP |
50 |
| Full Load Amps (3 phase) |
230/460 V |
130/65 A |
|
SPECIFICATIONS |
||
| Capacity |
Length x Tons |
14’x350 Tons |
| Ram Repeatability |
Inch |
± 0.0004 |
| Programmable Ram Tilt |
|
Yes |
| Programmable Ram Approach Speed (Min-Max) |
IPM |
66-331 |
| Programmable Ram Working Speed (Min-Max) |
IPM |
.1-24 |
| Programmable Ram Returm Speed (Min-Max) |
IPM |
76-378 |
| X Axis Back Gauge Speed (Min-Max) |
IPM |
5-1890 |
| X Axis Back Gauge Travel (Front to Back) |
Inch |
32.3” |
| R Axis Back Gauge Speed (Min-Max) |
IPM |
5-378 |
| R Axis Back Gauge Travel (Height) |
Inch |
10.2” |
| Optional –Z1/Z2 Axis Back Gauge Speed (Min-Max) |
IPM |
5-3425 |
|
MACHINE PRICING |
|
| Standard Configuration (Y1, Y2/X/R/Motorized Crowning) |
|
| Y1,Y2 Closed Loop Ram Positioning |
Included |
| Delem DA66T Windows Based Graphical Control (includes 3D viewing) |
Included |

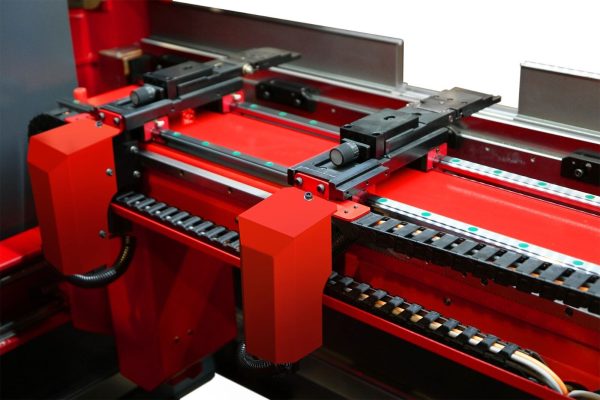

| CNC Controlled X/R Axis Back Gauge |
Included |
| Double guide rail backgauge system |
Included |
| CNC Controlled Crowning Table |
Included |
| Front & Rear Work Light |
Included |
| Front covers and rear guarding |
Included |
| 2 Sliding Front Sheet Supports with Linear Rail |
Included |
| Hoerbiger Hydaulic System (Made in Germany) |
Included |
| Dual Palm/Foot Station w/Selector Switch |
Included |
| Adjustable height suspension control unit arm |
Included |
| Backgauge Options |
|
| Z1,Z2 CNC Backguage Fingers |
Optional |
| X1,X2,R1,R2,Z1,Z2 CNC Tower Backguage ( 6 Axis CNC ) |
Optional |
| CNC x Prime Backguage |
Optional |
| Setup-Calibration-Training |
|
| Setup & Training |
Included |
| Tooling & Tool Clamping |
|
| RMT Common Precision Ground, 3.78” Tall Full Length Segmented
American Goose Neck Punch |
Included |
| Section Clamps with localized height adj. max load 30 Tons per foot |
Included |
| RMT 4 Way Die (2.36” Square) with 4V Die 85° with 5/8”, 7/8”, 1-3/8” ,2” Openings |
Included |
| Operational Safegaurding |
|
| AKAS Manual Safety Laser |
Included |
