Safan Holland SMK-40-2050 -TS1 – Year 1995

Contact us for price

Description

Safan Holland SMK-40-2050 -TS1 – Year 1995
CNC Press Brake 40 Ton

Strength 40 T
Folding length 2050 mm
Distance between uprights 2150 mm
CNC TS1
Vertical stroke 275 mm
Axis number 3
Motor power 9 kW
Safan Holland SMK-40-2050 -TS1
Length x width x height 3000.0 × 1800.0 × 2450.0
Weight 5100 kg

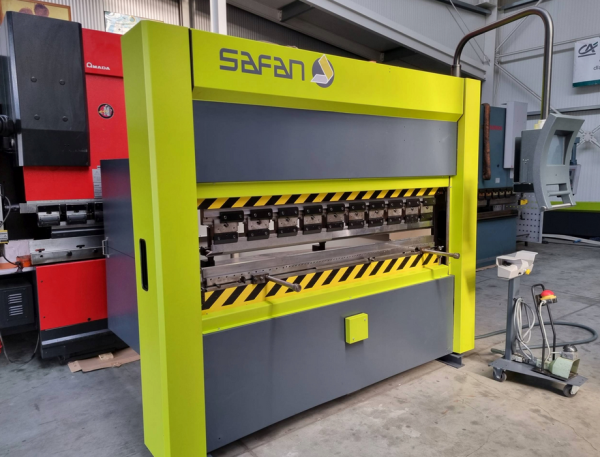

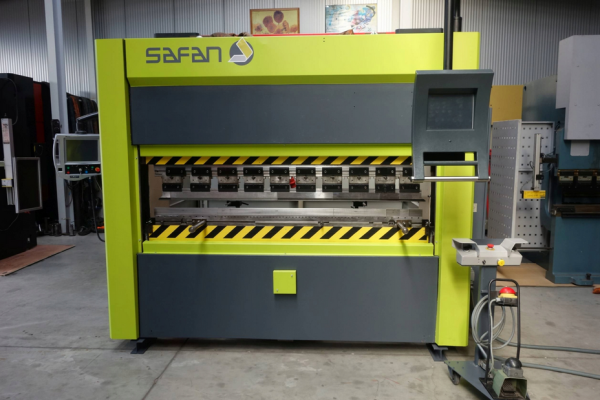

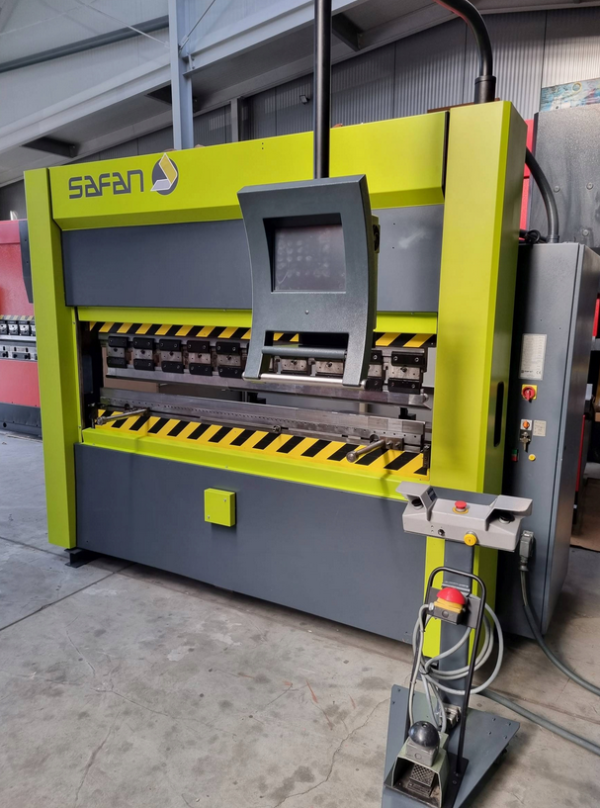

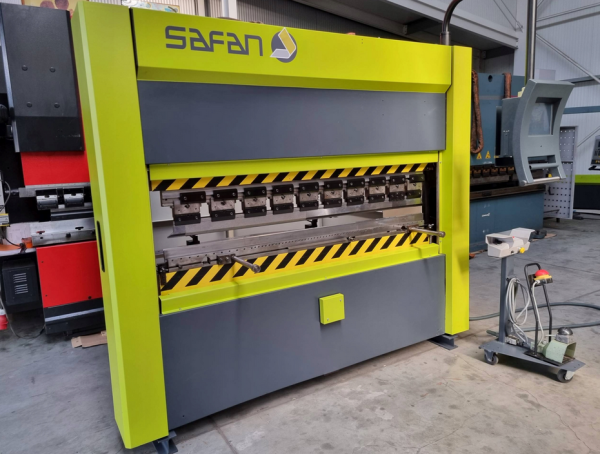

Servo-electric press brake Safan Holland type SMK-40-2050 -TS1, rb. 1995.

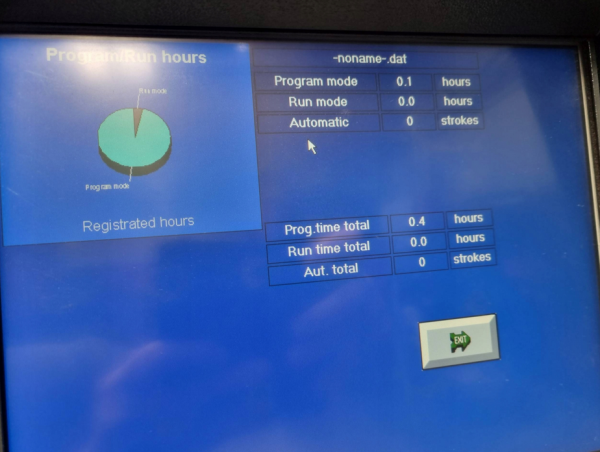

Touch screen -LCD Windows, color, graphics, menu in Polish.
Bending length: 2050 mm; Uniquely long stroke: 275 mm;
Between columns: 2150 mm; Pressure: 40 t
CNC control TS1 – 2 D simulation, English Polish – controlled axes Y1; Y2; Y3 – (CNC controlled lower table); x
-10 point table deflection arrow compensation.
Drive; 9kW; dimensions: 3000x1800x2450 mm, weight 5100 kg.
Full DTR documentation, also in Polish, O&S instructions in Polish.
We offer a comprehensive service for the machine.
