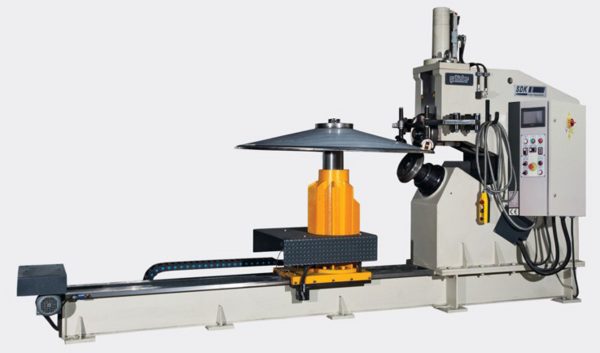

SAHINLER SDK 8 Circular Sheet Cutting & Flanging Machine

Contact us for price

Description

SAHINLER SDK 8
Circular Sheet Cutting & Flanging Machine

Model SDK 8
Brand SAHINLER
Condition new
Max. sheet thickness – mild steel 8 mm
Max. blank diameter 4500 mm
Origin Türkiye

General characteristics

Max. sheet thickness – mild steel 8 mm
Max. thickness – stainless steel 5 mm
Min. flanging radius 80 mm
Min. flanging radius 10
Max. blank diameter 4500 mm
Min. blank diameter 720 mm
Max. flanging height 150 (R 100) / 190 (R 25) mm
rotating speed 0,35 – 0,68 m/sek.
Motor 11 kW

Dimensions and weight

Length 4900 mm
Width 1700 mm
Height 2700 mm
Weight 4550 kg

Description

incl. flanging rolls for mild steel (R25)
incl. cutting blade
hydraulically adjustable carrier from top to bottom
cutting and flanging on the same head
lateral support rolls
Operator panel with touch screen

Optional devices as fix or variable angle japanese hat attachement, rolls for stainless steel or high speed, small diameter attachement…   on request
