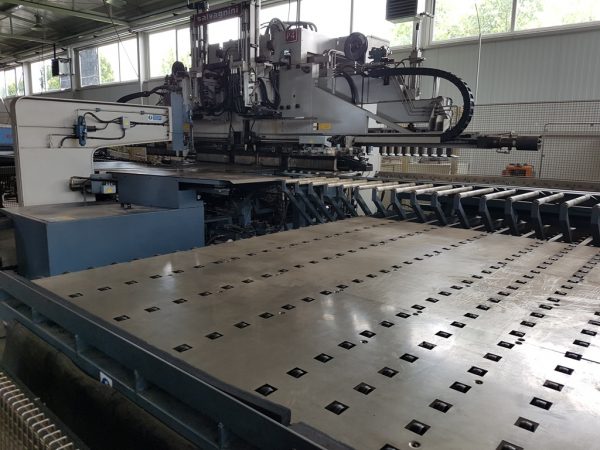

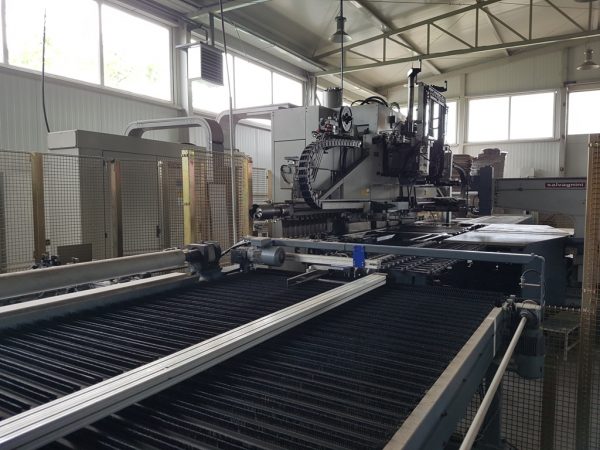

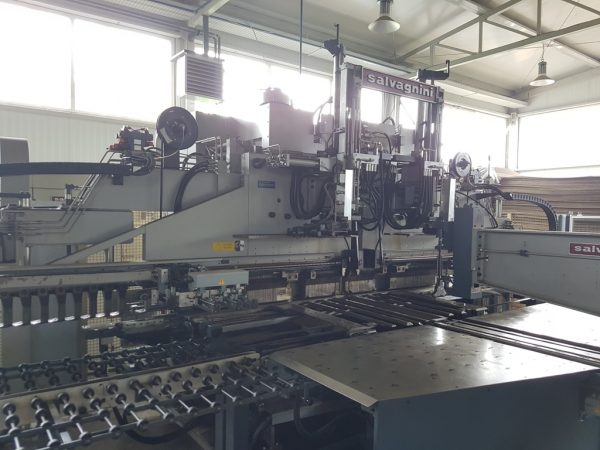

Salvagnini P4-2220 – Year 1997
CNC Panel Bending Machine
Salvagnini P4-2220 CNC Panel Bending Machine elements :
TL27155C: Scissor table
ADP2715: Feeder-destacker for operation in line
P4-2220: Panel Bender
SP22: Option for removing profiles
SAP2220.POS: Panel unloader/accumulator
TAE51: Water-air cooler
SPA: Work surfaces with brushes
T: Mover for auxiliary tools
CLA: Auxiliary bending tool command for positive bends
Max dimension of the sheets to be loaded 2700 x 1524 mm
Max height of the pack to be loaded, including pallet 375 mm
Carrying capacity 5000 kg
Vertical stroke 550 mm
Maximum length of incoming notched sheet: 2400 mm
Maximum width of incoming notched sheet: 1500 mm
Maximum diagonal of rotatable notched sheet: 2400 mm
Maximum bending length: 2250 mm
Maximum bending sheet dimension: 2250 mm x 1250 mm.
Maximum bending sheet diagonal: 2500 mm.
It bends up to 2 mm thickness and up to 125 degree angle.
Up to 180 degree angle is bends only 1,25 mm thick sheet.
Operating system for managing the production and the P4 system is WINDOWS
