Description

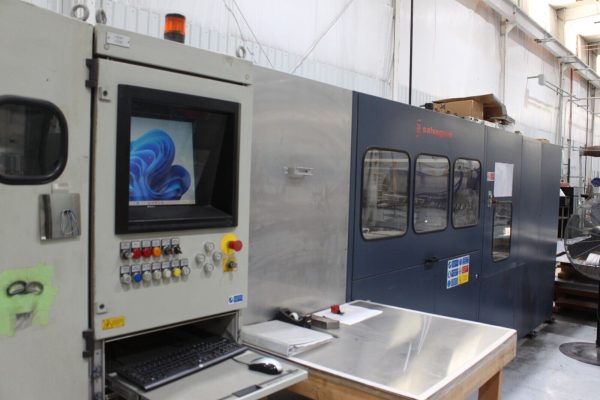

Salvagnini Performer P2 CNC Panel Bender – Year 1999
Brand: Salvagnini
Model: Performer P2
Year: 1999
Serial No : 1222/326
Specifications:
Max Sheet Dimensions – 78.7″ x 59″
Minimum Sheet Dimensions – 14″ x 7.8″
Max Sheet weight – Unlimited
Max Diagonal Rotation – 84.6″
Max Bend Length – 72.8″
Max Bend Height – 5″
Sheet Thickness 410 steel – 0.08″
Max Sheet Thickness Stainless Steel – 0.05″
Max Sheet Thickness Aluminum – 0.118″
Bending Tool Capacity – 58 Stations (Segmented) Manual
Power Requirements – 440v / 3ph / 60hz
Approximate machine weight – 31,000 lbs
Equipped With:

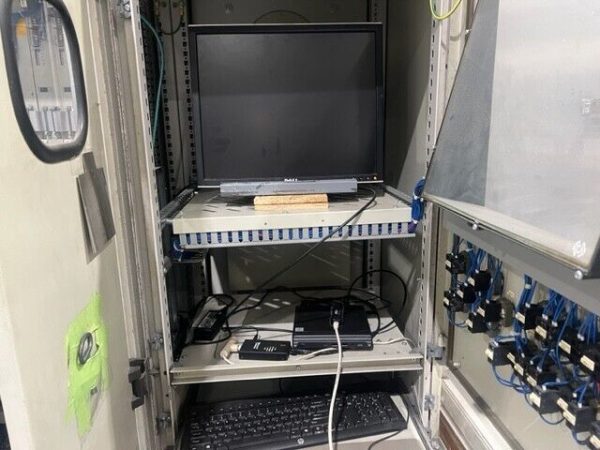

Salvagnini PC based control with sysconshell software.
Centering roll table with P2 work manipulator.
Blankholder tooling bar with 34 outer segments
20 Snap action segment
2 swiveling segments
2 intermediate segments
Hydraulic system
Load/unload station with automatic door
All available tooling and manuals!
We no longer need this machine because we switched our manufacturing methodology.
9 months ago we changed from large quantity batch production to small quantity fabrication – parts to order.
It was in good working condition when we last used it 9 months ago!
