Description

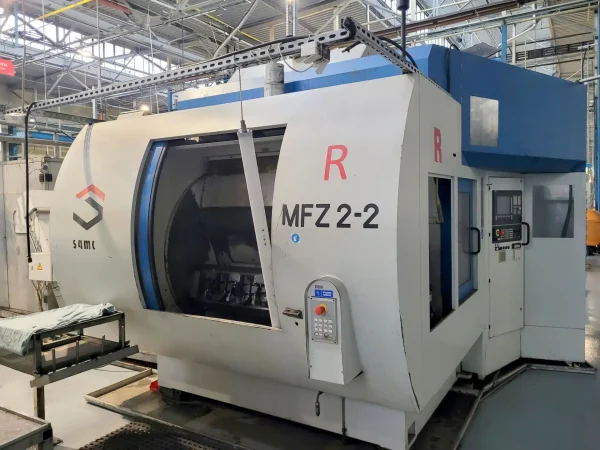

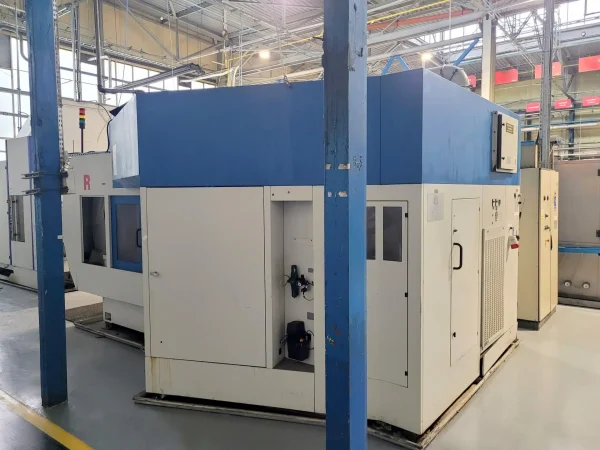

SAMAG MFZ 2-2 – Year 2005
CNC Horizontal Machining Center
Technical specifications of the SAMAG MFZ 2-2 milling machine
General data
number of axes: 3 + 1 rotary axis
feed travel in X axis: 450 mm
feed travel in Y axis (working stroke): 500 mm
feed travel in Y axis (total stroke including tool change): 775 mm
feed travel in Z axis: 450 mm
feed rates in the X,Y,Z axis: 1-10000 mm/min
rapid traverse in the X,Y,Z axis: 60000 mm/min
X,Y axis acceleration: 0.6 g
Z axis acceleration: 0.8 g
feed force in the X,Y,Z axis: 8000 N
repeat accuracy: 0,002 mm
operating hours: approx. 40000 h
hydraulic system pressure: 160 bar
capacity of hydraulic oil tank: 100 l
operating pressure of pneumatic system: 6 bar
power consumption: 72 kVA
power supply: 3×400±10% V; 50 Hz
ambient temperature: 15-35°C
dimensions of gravity belt filter (L x W x H): 2450 x 1505 x 1850 mm
dimensions of chip conveyor (L x W x H): 2885 x 1095 x 1829 mm
weight of empty chip conveyor: 620 kg
weight of empty clean water tank 930 kg
machine dimensions (L x W x H): 7000 x 4000 x 3700 mm
total weight of machine: approx. 22000 kg
Spindle
number of spindles: 2
spindle: GMN HCS 220-16000/28
maximum rotational speed: 16000 rpm
minimum rotational speed: 4200 rpm
power (60/100% ED): 28/28 kW
sleeve diameter: 220 mm
distance between spindles: 450 mm
tool holder: HSK A63
tool clamping system: OTT
weight of spindle: 110 kg
Tool magazine
capacity: 100 pcs.
maximum tool diameter: 80 mm
maximum tool length: 320 mm
maximum tool weight: 8 kg
Automatic table change (W axis)
swivel displacement: 0-180°
dividing angle: 3°
dividing accuracy: ± 3″
swivel time 180°: 4.5 s
face plate/thrust bearing diameter: 500/345 mm
maximum drive/thrust bearing rotational speed: 15/20 rpm
moment of inertia: 140 kgm2
permissible tilting moment: 8000 Nm
permissible drive/thrust bearing tangential moment: 10000/5000 Nm
Rotary table axes (A1/A2 axis)
dividing angle: 3°
dividing accuracy: ± 3″
swivel time 180°: 3.5 s
face plate/thrust bearing diameter: 345 mm
maximum rotational speed: 20 rpm
moment of inertia: 20 kgm2
permissible tilting moment: 3000 Nm
permissible drive/thrust bearing tangential moment: 5000 Nm
Workpiece holder (B axes)
indexing angle (serration): 5°
indexing accuracy (serration): ± 3″
NC indexing positioning accuracy: ± 15°
face plate diameter: 210 mm
maximum rotational speed: 20 rpm
maximum tilting moment (with hydraulic gripping device): 1000 Nm
maximum tangential moment (with hydraulic gripping device and serration clamped): 1400 Nm
axial load: 5 kN
Equipment of the SAMAG machining centre
CNC control: SIEMENS SINUMERIK 840D
rotary table (2 pcs)
disc tool magazine
central lubrication
chip conveyor
cooling unit: DK 160-V/SO
clamping hydraulics
pneumatic control / support check
ARTIS process control
rinsing pistol
SAMAG MFZ 2-2 CNC milling machine was built in 2005 in Germany. This specially designed machine for the automatic machining of workpieces made of metallic materials has been equipped with two high-performance spindles and two work tables with a rotary axis, allowing for simultaneous machining of a part and loading/unloading of another. This solution maximises production efficiency and shortens production times, making the machine significantly distinguishable from other milling machines on the market.
The machining, characterised by high quality and precision, is performed in automatic mode or in the setting up mode, using rotary tools taken from a capacious magazine. During its service life, the SAMAG twin-spindle milling machine has worked around 40000 hours and has been continuously serviced. The total weight of the machine is approximately 22 tonnes.
