SAMAG TBM 1 roto Shaft Drilling Machine – Year 2020
Condition : Ex-display machine
TBM roto – shaft drilling machine for production
For machining rotationally symmetrical workpieces such as gear shafts, camshafts, steering rods, common rails, standard parts…
Customer-specific solutions, automation, handling, workpiece clamping, workpiece cleaning…
Long-lasting machines for parts with the highest precision
Additional units, features or modules available
Optimized accessibility to all components for maintenance and service
Machine description
One-piece machine bed in stable, torsion-resistant welded steel construction with fixed drill
bush holder and integrated chip sluice
• Oil return and chip removal through chip lock
• Chip sluice with Makrolon disc
• Linear roller guides and ball screws for spindle and tailstock slides
• Ergonomic and safety-oriented machine casing
• Machine status light (green / yellow / red)
• Workpiece positioning by controlled tailstock Clamping of the workpieces in clamping
devices with collets (from Geiger & Haag)
• Siemens 840 D SL CNC control for drilling axis (Z), tailstock axis (W) and main spindle
• Electrical control cabinets with control cabinet temperature control without plug cabinet
• Individual drives for the drilling spindles
1 CNC-controlled headstock/drilling axis (Z-axis)
1 CNC-controlled tailstock axis (W-axis)
• All axes are driven by digital NC servomotors
• Deep drilling technology programs for the valve
• Pressure relief flap
• Flushing gun for manual cleaning of the workpiece and tool side
• Workpiece handling according to customer requirements
• Central lubrication for Z and W axis
• No coolant tank included
• No coolant cooling unit included
• With pulsator for breaking chips
Technical specifications
Drill diameter range 1.5 – 12.50 mm max.
drilling depth in one go max. 200 mm
Drill feed max. 5 m/min
rapid traverses
Headstock Z-axis 10 m/min
Tailstock W axis 10 m/min
Spindle distance 160 mm
Drive
AC main spindle drive per spindle (belt drive)
at 100% ED, S1 3.3 kW
at 40% ED, S6 5 kW
Spindle speeds directly programmable 1.600-16.000 rpm
Main spindle similar to VDI 3208, with hydraulic expansion chuck
• Tool holder Ø 10 x 60 mm
• HSK 50 spindle interface
• Internal coolant supply
• Manual tool change
Control Siemens 840 D SL
• Color flat display with plain text display (touch) 15.6″
• User interface in English
• Tool monitoring by querying the torque of the main spindle
• Digital drive control
• USB interface
• Deep drilling technology programs
• Hard disk
• Conversational Programming
• Graphic machine status display
Process monitoring (4-spindle)
Tool breakage monitoring for each spindle
Takes place by querying the torque of the main spindle and query the Z-axis load (drilling feed)
Coolant pressure control
Monitors the coolant pressure during the drilling process, in the event of a chip jam or if there is a lack of coolant, the drilling process will be in accordance with the specified limit values interrupted to avoid damage to the tool and/or workpiece. Torque and coolant pressure can be viewed on the process monitoring screen be presented and evaluated. If the specified limit values are exceeded, the drilling process is automatically interrupted.

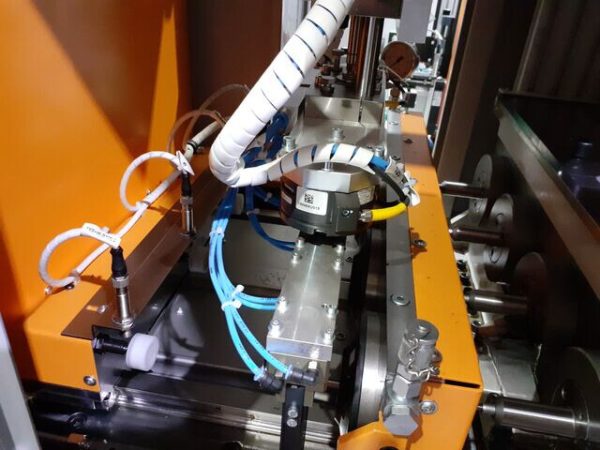

Workpiece clamping
• consisting of 4 chucks on a base plate
• the clamping device moves in the W axis for workpiece assembly, the clamping takes place
in the chuck, then back into the drill bush
• The clamping is initiated via a clamping unit by installed plate spring packages
• the clamping can be released hydraulically
Workpiece details
• Preparation for valves with bore from stem to disc
