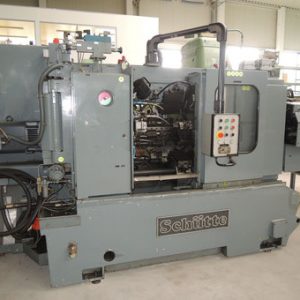

• Schütte SF 20 DNT – Year 1988

    Contact us for price

    Category:

    Description

    Schütte SF 20 DNT – Year 1988

    Max. Ø 20 mm
    Nbr of spindles 6
    Max. length 4000 mm
    Type Manual
    Spindle speed 5000 rpm

    Condition : Good / very good. Machine can be inspected under power.

    Schütte (Germany) 6-Spindle Bar Automatic
    Model SF 20 Dnt
    Year 1988

    Max. bar Ø, normal 20 mm
    Max. bar Ø, square, hexagonal, octagonal 14 / 17 / 18 mm
    Max. bar feed 80 mm

    Stroke of longitudinal slide 63 / 39.5 mm
    Boring depth, max. 39.6 mm
    Stroke of cross slide, max. 32 / 25 mm
    Stroke of lower cross slide 40 / 26 mm

    49 Spindle speeds 355 / 5,000 rpm
    No. of workpiece revolutions per work cycle 60 – 1.32
    35 cutting times per part 0.36 – 53 sec
    Spindle drive 20.5 kW
    Total electrical load 25 kW – 380 V – 50 Hz
    Weight, approx. 6,500 kg

    Accessories
    Built-on bar loading magazine for bar length up to 4,000 mm.
    Swing-in bar stop.
    Dnt = direct selection of spindle speed and cycle time. The machine has a separate infinitely variable feed drive for optimal adaptation (via potentiometer) of cutting speed and feed rate, which can be varied during the working process. Direct display of speeds and cycles, as well as WOERLE Display for working status and error display. Setting up the machine for a new workpiece is quick and easy.

    Pick-up device with hydraulic clamping for for back work, which allows burr-free cut-off, with electric supervision.
    Longitudinal slide is equipped with 5 tool holders. Side slide is not equipped with tool holders.
    Workpiece counter.
    Coolant equipment.
    Large separate hydraulic aggregate with hydraulic pressure on spindle drum, and the possibility for connection to a copying device. Pendant control.
    Workpiece chute for finished parts with very long conveyor belt for removal of finished parts
    Complete machine is noise damped.
