Description

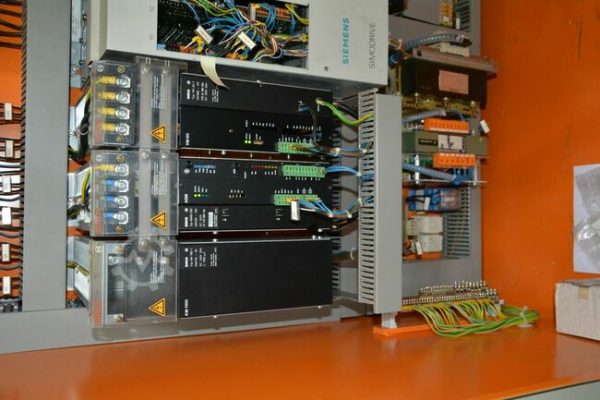

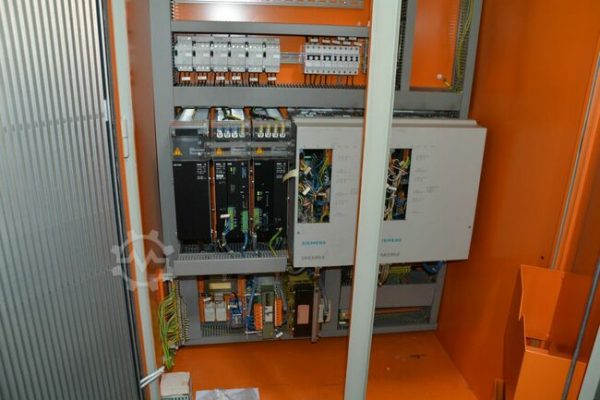

SCHÜTTE / NUM 760 CNC Continuous Path Control for 4 + 2 axes, with BOSCH and SIEMENS components, with monitor. Program input is directly on a keyboard, using clear text; or via a separate PC, freely programmable to ISO/DIN standards for any type of workpiece. Comprehensive archive of standard tool grinding programs is available, as well as combinations, etc..

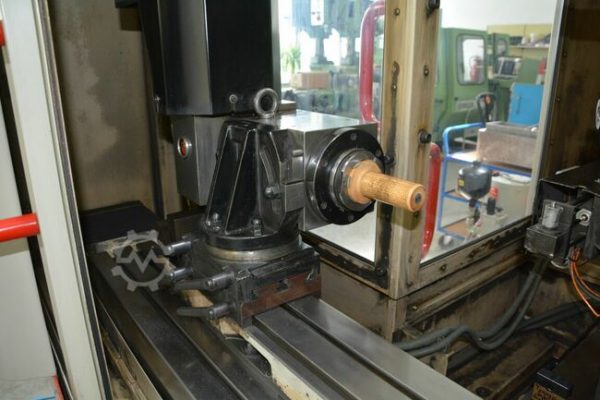

C Axis as a rotary table on the Z Axis column for turning the workpiece 10-180-10°, with hydraulic clamping.

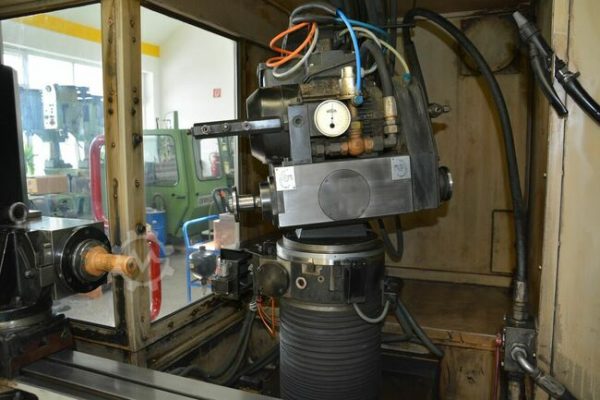

B Axis as motor-driven tilting grinding head, +/- 25°, with hydraulic clamping.
B and C Axes are ideal for various grinding operations in one automatic cycle, e.g. Flute grinding, hob grinding, circumference grinding and front-side grinding of workpieces.
R Axis for indexing and rotary grinding, with manual rotation and tilting, and hydraulic workpiece clamping.
4 + 2 axis interpolation for finish grinding of complicated straight-fluted and spiral-fluted cutting tools, solid carbide tools, deep hole drilling, etc.
Grinding spindle with infinitely various speeds (6 kW), and holder for grinding wheels, left and right.

RENISHAW Measuring Probe, LP 2, on the grinding head, for set-up and specification of workpiece data.
Large coolant device with high pressure valve and POLO Band Filter, and oil mist exhaust system.

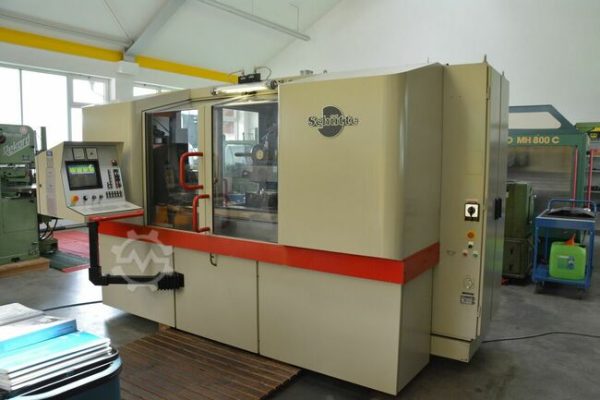

Completely covered working area with 3 doors (for locking the CNC).
3 grinding wheel holders. * Workpiece holders, SK 50. * Reducers, etc.
Measuring sensor, ISO 50, in conjunction with aligning mandrel, and grinding spindle measuring norms.
