• SCM TECH Z25 OH R4 – Year 2006

    Contact us for price

    Category:

    Description

    SCM TECH Z25 OH R4 – Year 2006
    Wood CNC machining centre

    X stroke 2780 mm
    Y stroke 2780 mm
    Z stroke 2780 mm
    Axis nbr 3
    Tool changer positions 4
    Vacuum pump 250 m³/h

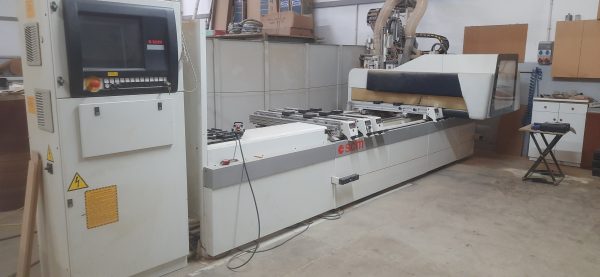

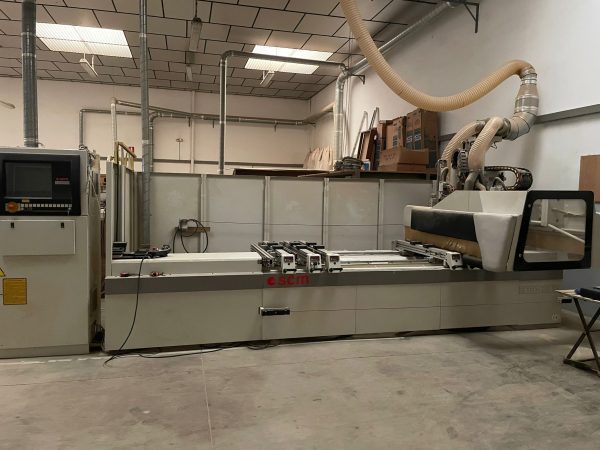

    SCM machining center model TECH Z25 OH R4

    General characteristics:
    – useful area of work in milling 2500x1140mm
    – useful area of work in drilling 2500x918mm
    – Z axis travel = 200 mm, panel pitch 180 mm
    – maximum workable panel thickness 100 mm
    – centralized automatic lubrication
    – Conveyor assembly for central vacuum
    – control with PC OFFICE and Windows interface
    – XILOG software + ASPAN-TASK cad/cam program
    – pineapple for remote control of machine commands

    Workplan:
    – worktop with 6 TV bars L = 1300 mm and frontal digital screens
    – supplied with 12 suction cups 120x120xh30mm for TV bar
    – 4 elevators to help load
    – 6 rear and lateral reference stops
    – 250 mc/h vacuum pump

    Operating groups:
    – 3-axis electrospindle, HSK63F connection:
    * Power of 6.6 kW, with inverter from 1,500 to 24,000 rpm
    * R4L 4 position rear tool changer
    – horizontal milling unit with 2 outlets, KW 3 motor
    – unit with group of blades of automatic rotation for positioning in the X or Y axis
    with 2.2 kW motor, maximum mountable blade diameter up to 200 mm
    – F10 drilling unit, with 10 vertical axes + 4 horizontal axes
    According to CE regulations
