Shandong Yuequn Machinery Chiny YQLD-1300 Plant Plywood Production Line

Contact us for price

Description

Shandong Yuequn Machinery Chiny YQLD-1300 Plant Plywood Production Line – Year 2018

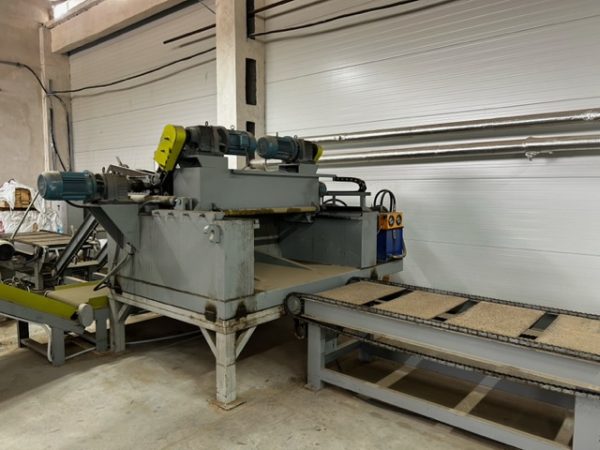

Plywood production line

The line consists of:
1. YQLD – 1300 log debarkers
– log diameter fi 500mm
– cutting thickness setting 1-5mm
– length of cutting knives 1500mm
– power 29.5 kW
– dimension 3700x2050x2000mm
– weight 3.5T
2. YQLD-1300 veneer cutters
– veneer thickness setting 1-5mm
– dimension 4400x2000x1600mm
– power 43.95kW
– weight 5.6T
3. DC 127-B veneer stacker
– veneer width 500-900mm
– stacking speed 0-90m/min.
– stacking height 0-1200mm
– dimension 7600x2800x2100mm
– power 27kW
– weight 3.2T
4. LMD-1300 knife sharpener
Area needed to set the line 30×10 m.
There are dedicated presses for the line, listed separately.
