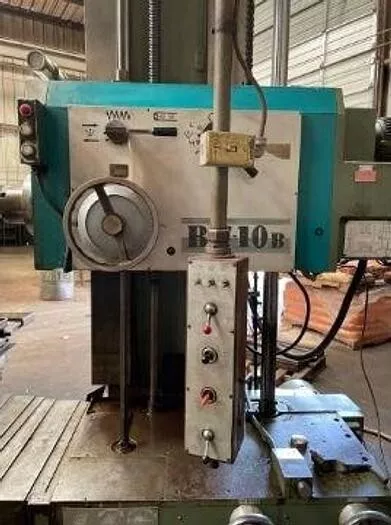

SHIBAURA BT-10B-R1 Table Type Boring Milling with Rotary Table – Year 1981

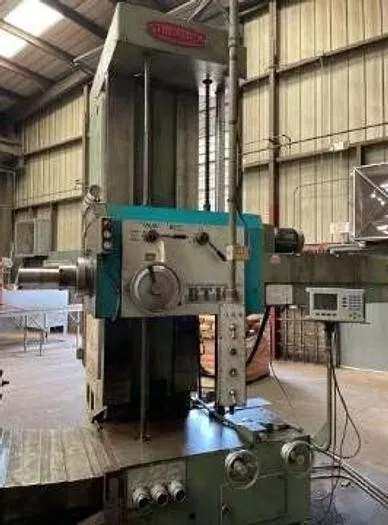

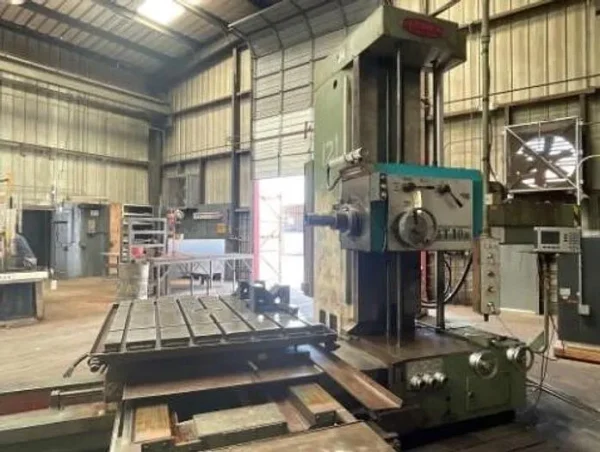

4″ SHIBAURA TABLE-TYPE HORIZONTAL BORING MILL
New 1981,
Serial No 161073,
Model BT-10B-R1
EQUIPPED WITH:

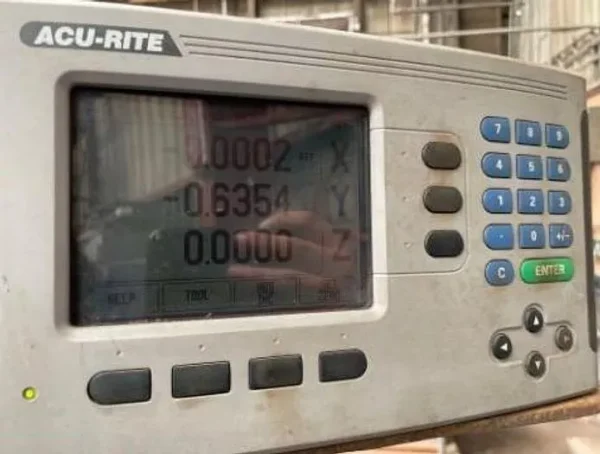

Acu-Rite Digital Readout

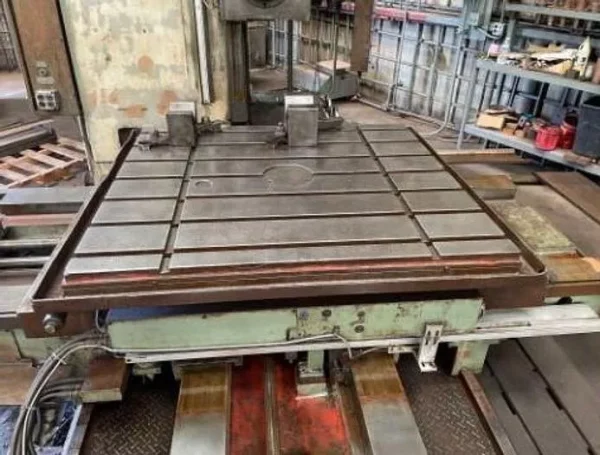

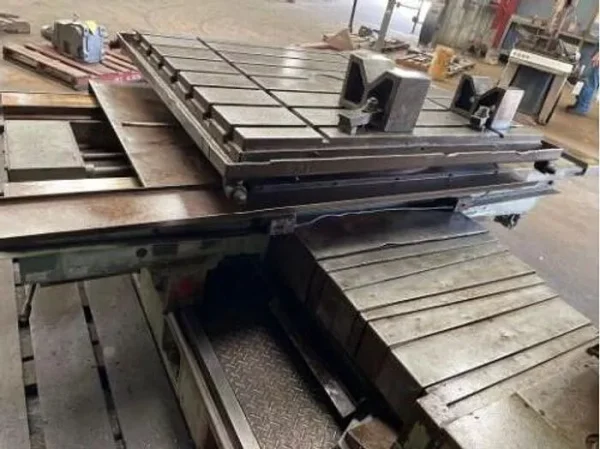

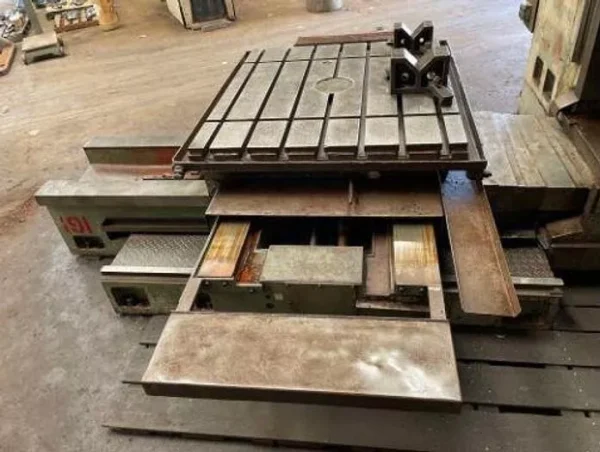

44″ x 49″ Built-In Rotary Table

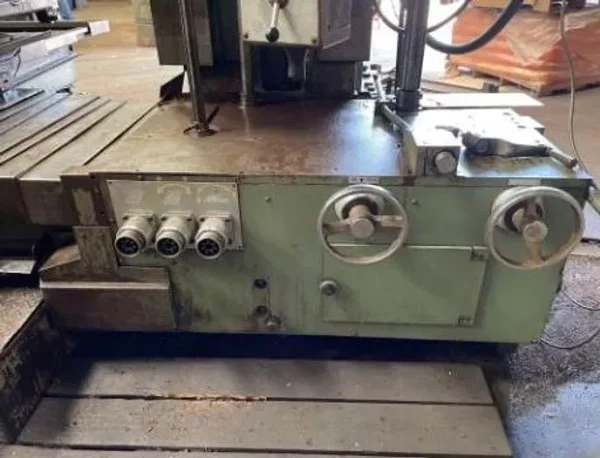

Full Pendant Controls
Power Draw Bar
CATALOG SPECIFICATIONS:
Spindle Diameter 3.94″
Milling Spindle Diameter 8.86″
Spindle Taper #50
Vertical Headstock Travel 49″
Cross Table Travel 55″
Saddle Travel (In & Out) 44.5″
Spindle Travel (In & Out) 28″
Table Size (Built-In Rotary Table) 44″ x 49″
(16) Spindle Speeds 14-1000 RPM
Spindle Feeds .0009-.67 IPR
Rapid Traverse 126 IPM
Motor, Horsepower 15 HP
Floor Space Required, L x W 189″ x 158″
Overall Height 120″
Weight Approximately 34000 LBS
