Shibaura VB 80/100 – 1987 Model

Contact us for price

Category:

Description

Plate diameter 8000 mm
Working height 4350 mm
CNC type FANUC 18i-TB
Max piece weight 300000 kg
Rotation speed 20 rpm
Motor power 180 kW
Overhauled no
Year of overhauling 2001

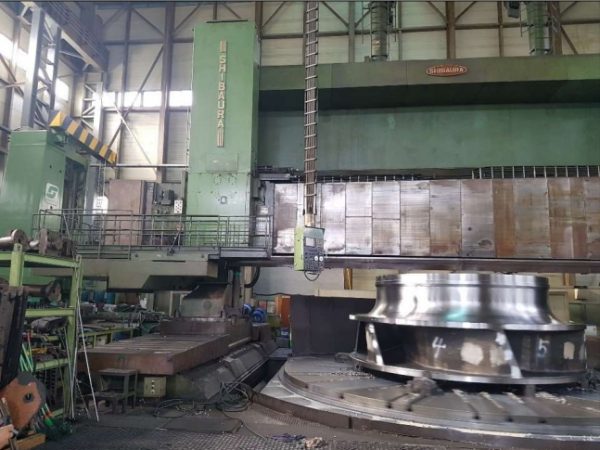

Shibaura VB 80/100 vertical turret lathe with cnc Gantry type

Shibaura VTL with Live milling
NC Control : FANUC 18i-TB
Table dia : 8000
Max. swing : 10750
Table turning speed : 1~20 rpm
Turning height : 4350
Workpiece load weight : 300 tons
Ram section : 350 X 350 mm
Y-axis travel : 5000
Z-axis travel : 2600
Main motor : 180 kwMilling
Table index : 0.001 degree
Y-axis gantry : 5000 mm
Ram size : 450 x 500
Spindle speed : 600 rpm
Spindle motor : DC 60Kw
Attachment : Angle, Universal, Extension
NC Control : FANUC 18i-MB
