Description
SIRtec Mattec 80-30-60 – CNC Bridge Milling
Mattec portal milling machine is available
Technical data portal milling machine type Mattec 80-30-60
Travels
X = 8,000 mm
Y = 4,000 mm (portal passage 3,500 mm)
Z = 1,600 mm (portal passage 1,750 mm)
Main spindle

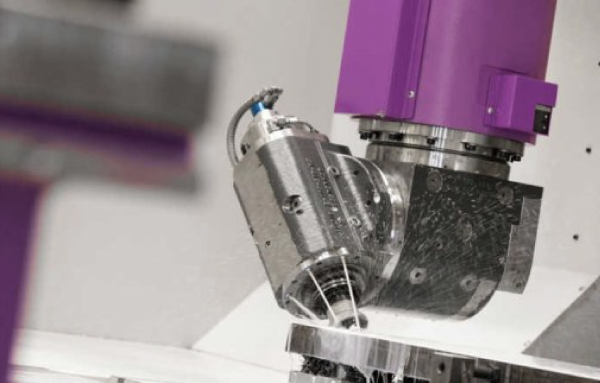

automatic orthogonal head 90/90°, Hirth toothed 2.5° pitch
24 kW with 2-stage gear
Speed 0-3.500 rpm.
automatic tool changer
travelling on the portal, tool storage capacity 61 tools
