Description
Brand: SMEC

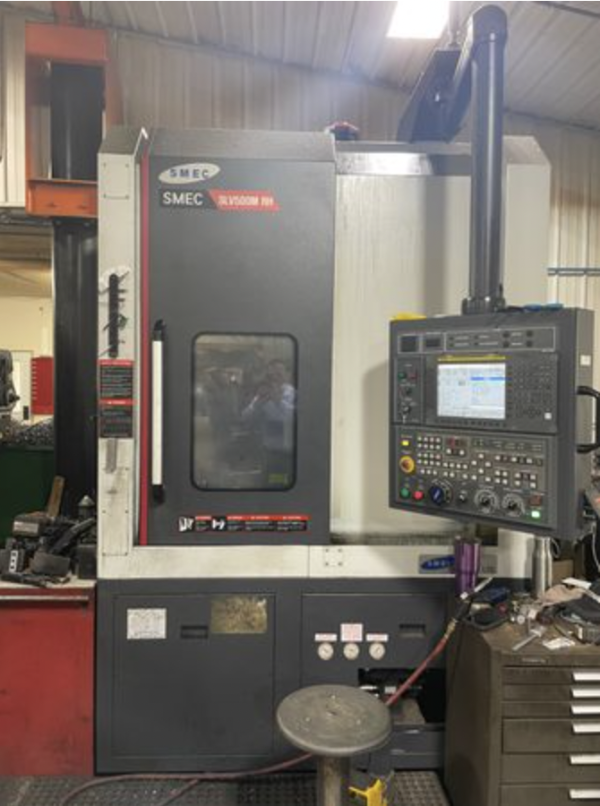

Model: SLV500M VERTICAL TURRET LATHE
Year: 2019
Specs:
Swing Over Bed: 27.56″
Rapid Traverse: 787.4″ (X/Y/Z/ZB)
Max. Turning Diameter: 19.68″
X-Axis Travels: 12.48″
Z-Axis Travels: 9.49″
Max. Turning Length: 18.31″
Number of Tool Positions: 12 (BMT65)
Shank Size for Square Tool: 1″ x 1″
Chuck Size (Main/Sub): 15”
Shank Size For Boring Bar: 2″
Spindle Speed (Main/Sub): 3,000 RPM
Spindle Nose Main / Sub: A2-8
Main Spindle Motor (cont./30 min): 24.8 H.P. / 29.5 H.P.
Equipped with:
Fanuc 0i CNC Control
Live Milling Capability
Chip Conveyor
Machine Dimension (L×W×H) : 65.7″ × 79.7″ × 117.56″
Machine Weight: 15,873 lbs.
Options:
Fanuc Oi
Chip Conveyor
Live Tooling
