Description

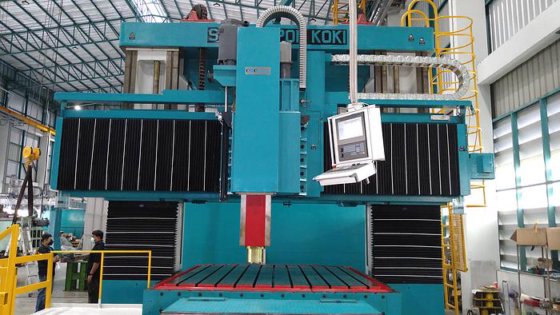

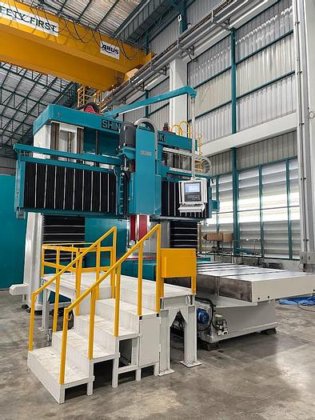

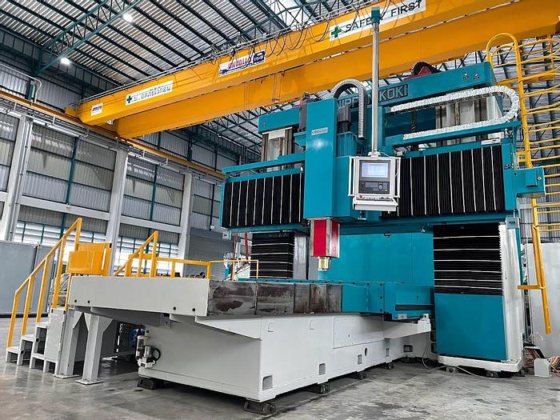

SNK Shin Nippon Koki HF-4 PK – refurbished 2022
CNC Double column Planomiller
Completely revamped and rebuilt double column milling machine.
Machine supplied with guarantees and accuracies as is new. Machine alignment as per OEM test chart

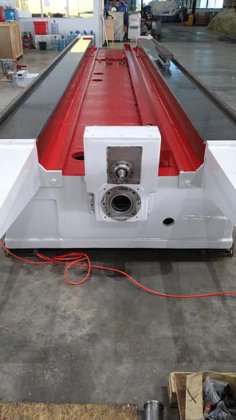

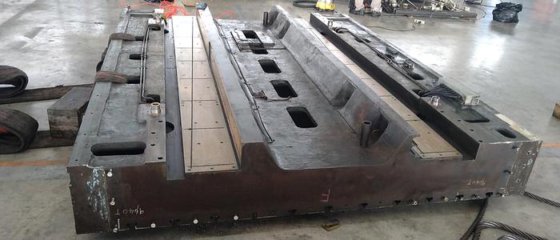

Machine has scraped/ground guideways, new ballscrews, bearings, hydraulic and lubrication systems

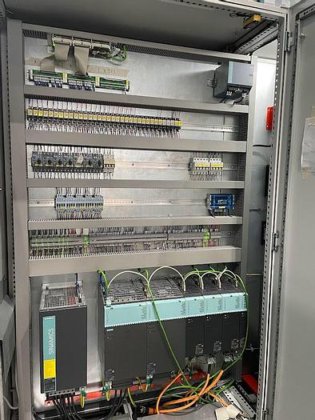

Machine comes with completely new electrical system including Siemens CNC, motors and drives.
We provide machine re-installation and commissioning at the site.
Width Between Column mm 2,800
Table size mm 2500×3200
Payload of main table kg 15,000
Distance spindle to table mm 1,500
Travel of X Axis(Table) mm 2,800
Travel of Y Axis(Head) mm 2,980
Travel of Cross Rail mm 1,100
Travel of quill mm 800
DIA of Spindle mm 200
RAM size mm 300×300
Taper of spindle nose BT50
Spindle speed (max) rpm 5,000
Spindle power kw 31/37(30 min)
Spindle torque Nm 257/302(30 min)
One year warranty on Siemens parts.
Delivery Immediate.
Suitable for heavy cutting or finish die cutting.
