Description

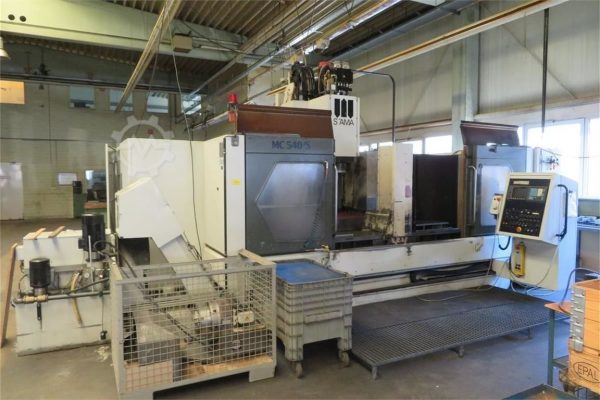

Stama MC 540/S – Year 1990
Machining centre
travels:
X/Y/Z: 2000mm/550mm/550mm,
distance between clamping surface and spindle nose: 250-800mm,
rigid table:
clamping surface: 2500mm x 520mm,
max. workpiece weight: 2500kg,
tool holder: SK 40,
tool magazine: 60 tools,
rated output: 18KW;/1500 rpm, max. workpiece weight: 2500kg, tool load: SK 40, tool magazine: 60 tools, rated output: 18KW;/1500 rpm, max. workpiece weight: 2500kg power: 22KW, nominal torque: 118Nm, max. torque: 145Nm, max. speed: 6000U/min, rapid traverse: 22m/min, feed: 1-10.000mm/min, 4th axis Fanuc rotary table, control: Fanuc 15-M, chip conveyor, coolant system 6 bar with band filter system, work table, workbench, tool accessories
