Description
Operating hours: 40240 ( as of 26.05.2020)
Main spindle HSK A63
spindle speed: 12.000 1/min
Main spindle drive 37kw
spindle distance 266 mm
Travel ranges
X-axis 1000 mm
Y-axis 400 mm
Z-axis 400 mm
Feed forces
X-Y-axis 4000 N
Z-axis 8000 N
Speeds
rapid traverse X-Y-Z axis 60m / min
feed X-Y-Z axis 1-10000 mm / min
axis dynamics X=6.0, Y=9.0, Z=11.0 m/sec²
Tool magazine
2×60 tool places
max. tool length 300mm
Max. tool diameter tool diameter 880mm
Measuring system
X-Y-Z axis Digit. Pulse encoder Resolution 0.001
” Machine colour according to special specification
RAL 7035 ”
Machine control Siemens 840D
NCU 572
Hard disk ( 10 Gigabyte for user data)
USB 2,0 interface
Analysis tool for service Ethernet card is incl.
Display 10,4″ TF color
Expansion slots 2x PCI, 1x CF Card

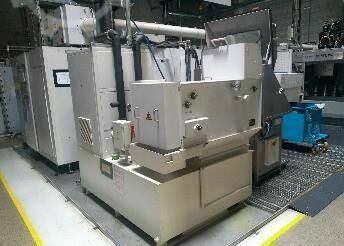

” Coolant cleaning paper 500 l / min
Internal bed filter built on
900 l coolant tank
Filter paper width 490mm
Filter capacity oil 350 l / min
Average filtration 50 micron
Field device for paper shortage
suitable for all common materials
This filtration does not prevent
silting of the coolant device”.
” Immersion recooling unit
Compressor recooling system for medium emulsion
or oil
Air cooled Refrigerant CFC free
Cooling capacity 34 MJ
Installed in 900 l coolant tank incl.
all necessary control and regulating
control devices”.
” Coolant supply IK 70 bar instead of 20 bar
IKZ through work spindles for tool holders DIN
