Description
| Axis X | 3000 mm |
|---|---|
| Axis Y | 550 mm |
| Axis Z | 550 mm |
| Rotary table (4th axis) | no |
| Type of CNC | Fanuc 15M |
| Table length | 3500 mm |
| Table width | 520 mm |
| Number of tool pockets | 40 |
| Spindle taper | SK40 |
| Max. spindle speed | 6000 rpm |
| Spindle motor power | 22 kW |
| Weight | 14000 kg |

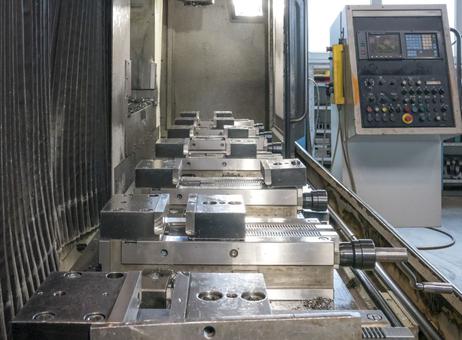

Stama MC540/S – 1991 Model
Vertical CNC traveling column machining center with fixed table.
Year of construction: 1991
Travels: X = 3000, Y = 550, Z = 550mm
Rapid traverse 22m / min
Control Fanuc 15M
Spindle SK40, automatic 2-stage gearbox (1: 1, 1: 4) 36-6000 rpm.
Traveling tool magazine with 40 places
Chip-to-chip time approx. 7 seconds
Chip conveyor, coolant device, protective housing
Inner coolant supply 6 bar, paper band filter.
Clamping table 3500x520mm, 4 T-slots 18H12
Preparation for 4th CNC axis. Main spindle motor power display.
3D helical interpolation. Thread without compensating chuck.
Extended sub-program technology. Serial data transfer.
Equipped for pendulum machining including a partition.
Complete machine documentation.
Machine mass: 12000kg
Electrical cabinets: 1200kg
Chip conveyor: 300kg
Machine connected load 50kW
