Description

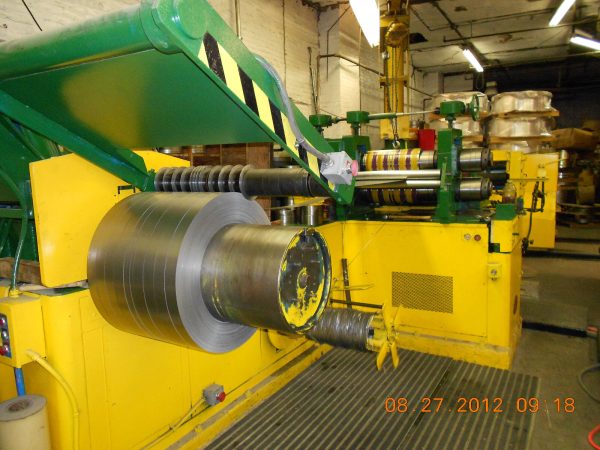

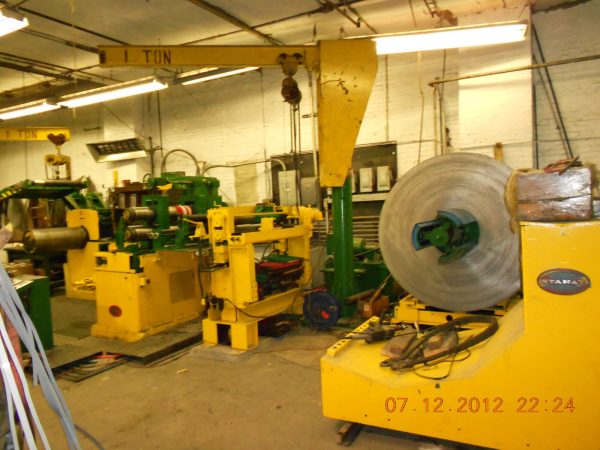

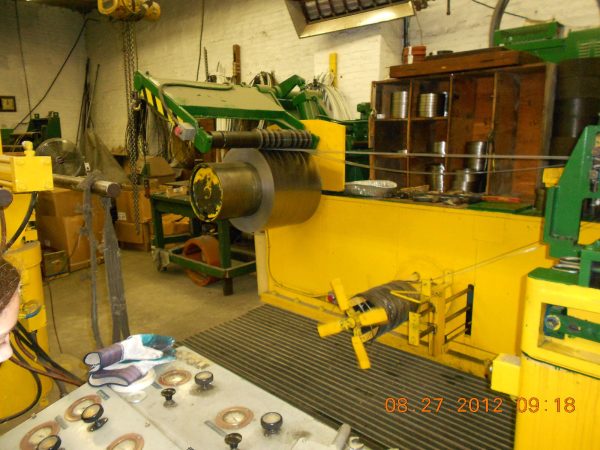

STANAT Slitting Line 30 X 10000 LB
Stanat slitting line for sale
30″ x 5”, stanat slitter, 25 HP, payoff, coil car scrap winder, recoiler
1 arm turnstyle slitter head closes to 12 wide for heavier gauges
Manufacturer Stanat 10000 lb capacity
Line consists of the following;
(1) stanat slitter head and base
Arbor
-face width 32″
-diameter 5″
Knife diameter 10 1/2″ – 11″
Drive motor 25 hp
Unit is complete with 1 pair of guide rolls, exit pinch rolls
(1) stanat payoff with coil cart
Mandrel size
-diameter 16″
-face width 30″
Max coil O.D. 72″
Unit is complete with hydraulically adjustable base and mandrel expansion with a 5 HP 1755 RPM hydraulic power pack and air brake.
(1) scrap winder

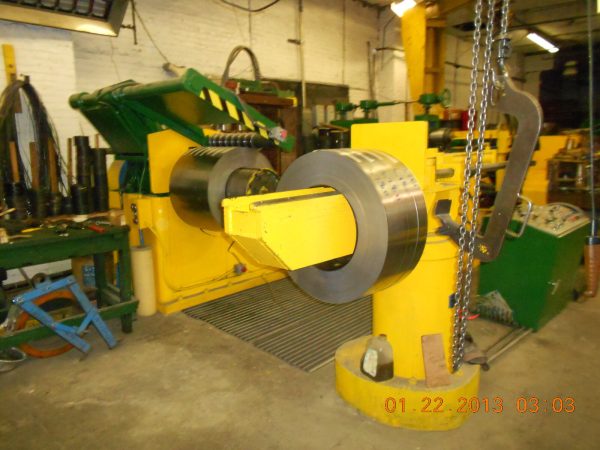

Recoiler
16 ID hyd expansion push off overarm separator
1 arm turnstyle
Complete line under power
