Description

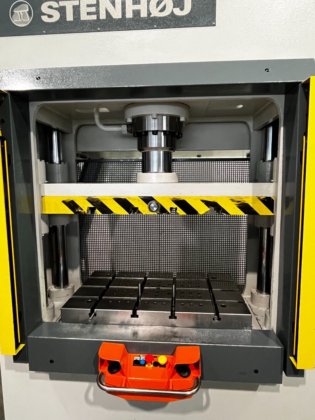

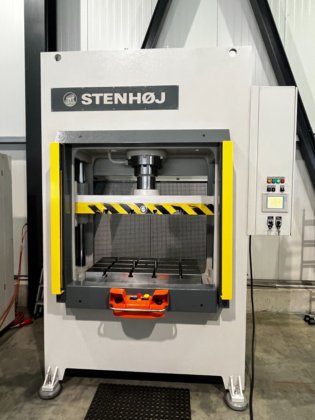

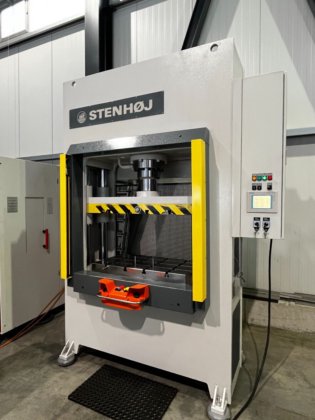

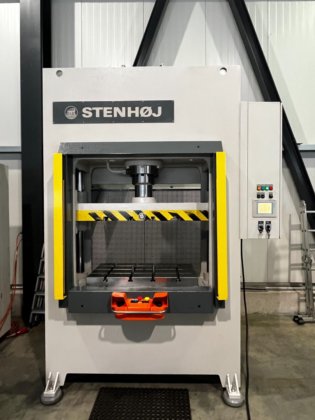

STENHOJ LPSB 100/40-B – Year 2007
Hydraulic – double column press 100 ton with drawing cushion/ejector
Machine type Hydraulic – two-column press
Make STENHOJ
Type LPSB 100/40-B
Year of construction 2007
Control type NC Control SIemens S7
Country of origin Denmark
Delivery time immediately Freight basis free loaded, ex stock
Technical details
Pressure 100 t
Passage width 1200 mm
Passage between. the uprights – sideways 190 mm
Retracting force 19 t
Lowering speed 387 mm/sec
Retracting speed 326 mm/secPiston stroke 400 mm
Installation height 600 mm
Table size 1000 x 570 mm
Pusher area 1000 x 450 mm
Table height 1000 mm
Pulling cushion hydr.
Pressure/stroke 400 KN/180mmEjector pressure 40 KN
Control SIemens S7
Total power requirement 18.5 kW
Machine weight approx. 7.0 t
Space requirement approx. WTH 2.2 x 1.3 x 3.2 m
Additional information
Hydrl. Double-column production press in high-speed versionincl.
