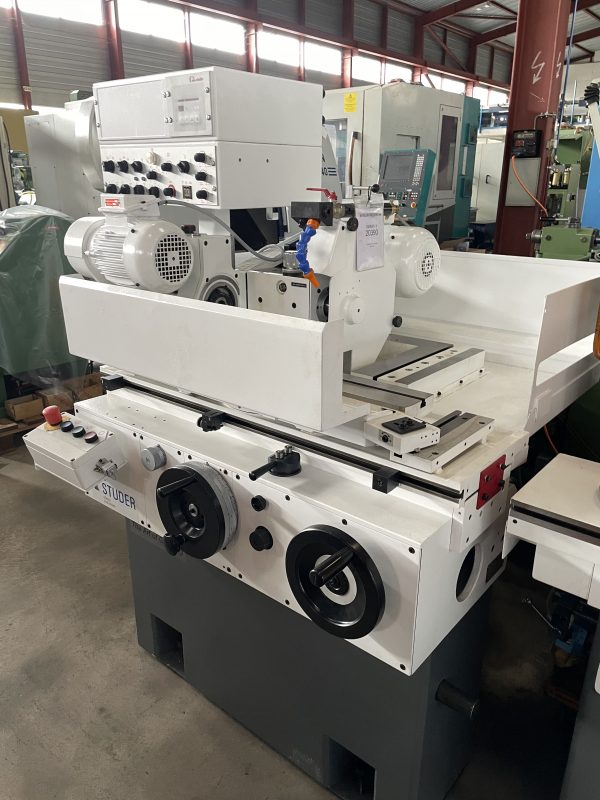

STUDER S 20 Favorit Cylindrical External / Internal Grinding

Contact us for price

Description



Max. grinding length 400 mm
Grinding diameter 350 mm
Exter Yes
Inter Yes
CNC No
STUDER S 20 Favorit
Max. swing diameter 50 mm
Max. wheel speed 3500 rpm
Spindle motor power 3 kW
Cylindrical external / internal grinding machine
Length x width x height 1500.0 × 1400.0 × 1400.0
Weight 1600 kg



Technical data
Centre height 100 mm
Distance between centres 400 mm
Max. Longitudinal travel 420 mm

Grinding wheel:
Diameter 350 mm
Width 50 mm
grinding wheel width 50 mm

Table load max. 20 kg
Workpiece weight on centres max. 20 kg

Grinding wheel speeds:
Peripheral speed 30 m/s
Angular displacement 15 / 30 °
Work piece spindle head:

speeds:
stepless from 30 rpm up to 1200 rpm
Spindle taper: 4 MT
Taper in tailstock: 2 MT
Table angular displacement 30 °

Table speed:
stepless from 100 mm/min up to 3500 mm/min
Voltage 50 Hz 3x 380 Volt
External Grinding wheel motor 3 kW
Total power required 10 kVA
Machine’s weight about 1600 kg

Overall dimensions machine:
Length 1500 mm
Width 1400 mm
Height 1400 mm
Various accessories:
Set of flanges
