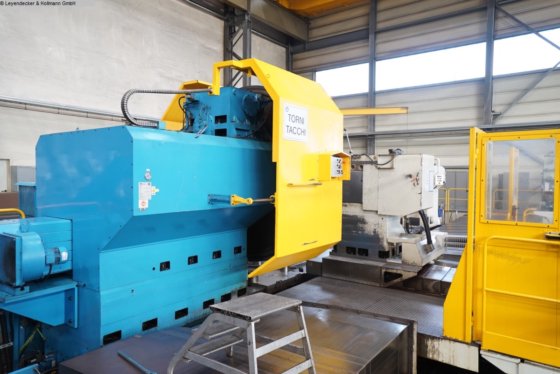

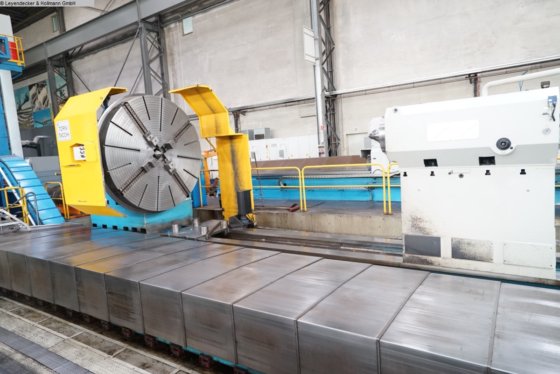

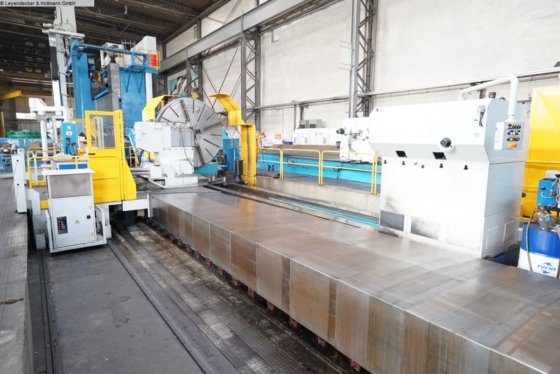

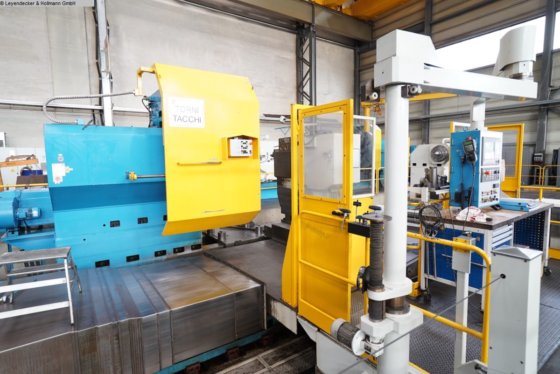

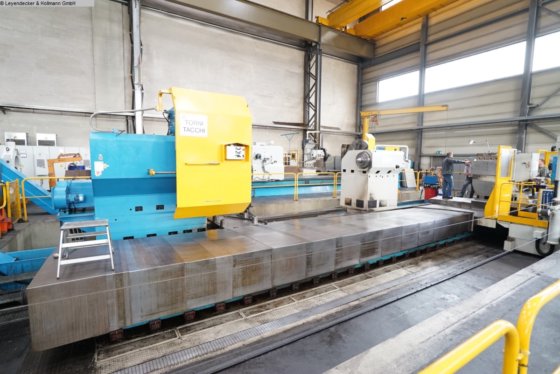

• TACCHI DB 132 HS 1700×8000 Heavy Duty Lathe – Year 2008

    Contact us for price

    Categories: ,

    Description

    TACCHI DB 132 HS 1700×8000 Heavy Duty Lathe – Year 2008
    CNC Heavy Duty Lathe 8 Meters

    Condition:used
    Year:2008
    Type of control:CNC
    Control name:Sinumerik 840 D PL
    Freight basis:ex works
    Greates pass round over bed:2800 mm
    Swing diameter max. over cross slide:2600 mm
    Turning length:8000 mm
    Control:Sinumerik 840 D PL
    Centre height:1700 mm
    Reus:0,6 – 180 U/min
    Transmission ratio:3
    Workpiece weight between the centres max.:60000 kg
    Max. torque:145000 Nm
    Spindle bore:160 mm
    Output:150 kW
    Feed range – face slide / stepless:0 – 6000 mm/min
    Feed range – longitudinal slide /stepless:0 – 6000 mm/min
    Rapid travel speed – transverse feed:6000 mm/min
    Rapid travel speed – longitudinal feed:6000 mm/min
    Diameter center sleeve:540 mm
    Stroke center sleeve:200 mm
    Total power requirement:210 kW
    Weight of the machine ca.:55 t

    Equipment/Accessories:
    – boring support (max. boring rod Ø 150)
    – open steady rest C-type Ø 300 ÷ 900 mm
    – open steady rest C-type Ø 900 ÷ 1500 mm
    – closed steady rest Ø range up to 1000 mm
    – milling, drilling and thread cutting device
    drive power motor in S1 (100%) 15 kW
    standard speed range 1-2000 rpm
    constant power in speed range 500 – 2000 rpm
    tool holder ISO 50
    milling diameter 120 mm
    torque on the milling spindle 430 Nm
    – movement Y-axis for milling head
    – chip conveyors
    – documentation
