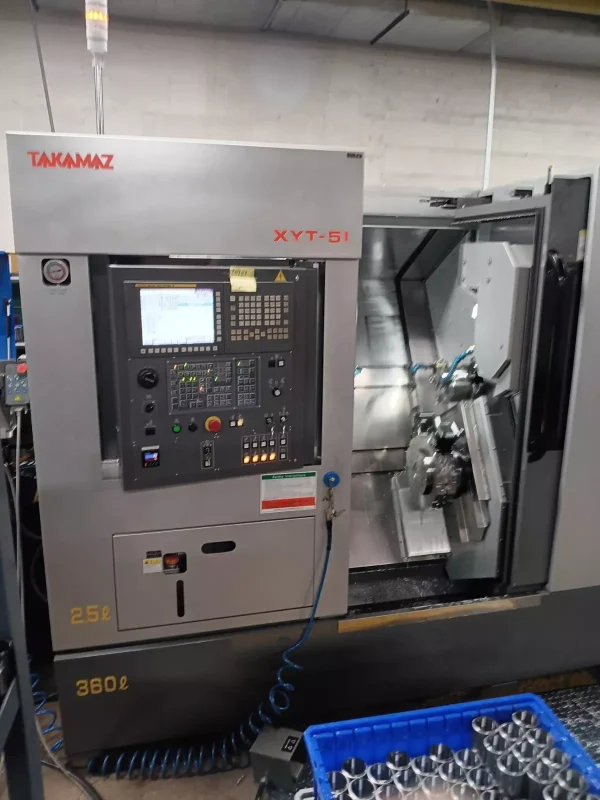

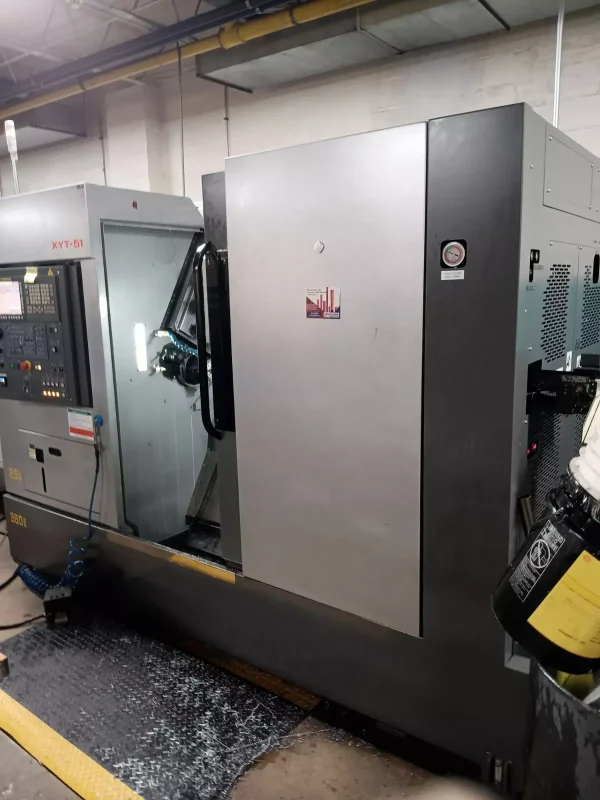

Takamaz XYT-51 CNC Turning Center – Year 2018

Contact us for price

Categories: ,

Description

Takamaz XYT-51 CNC Turning Center – Year 2018
BAR CAPACITY 2″
LIVE TOOLING Yes
Y-AXIS MILLING Yes
# OF TURRETS 2
MAX RPM 5,000 RPM
TAILSTOCK No

5,000 RPM;
18.5kw/30min;
A2-6 Spindle Nose;
51mm Bar

Capacity (Main – Fixed)

5,000 RPM;
9kw/30min;
A2-5 Spindle Nose;
(Sub Spindle, 42MM Hollow)

EQUIPPED WITH:

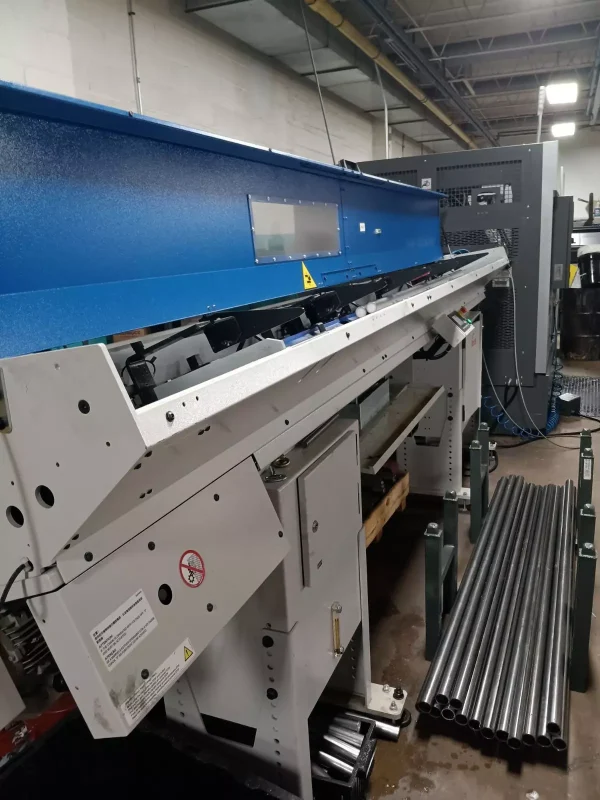

Iemca Barfeeder
FANUC 32-iB Controller

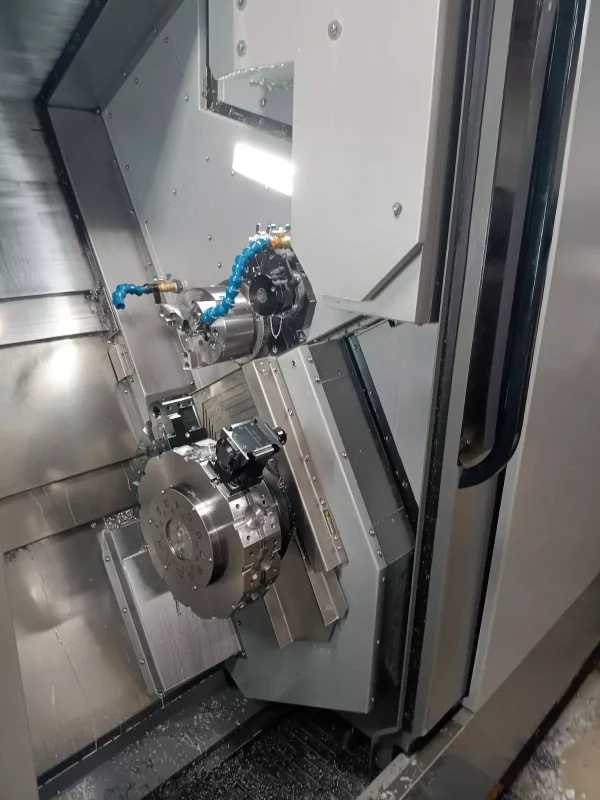

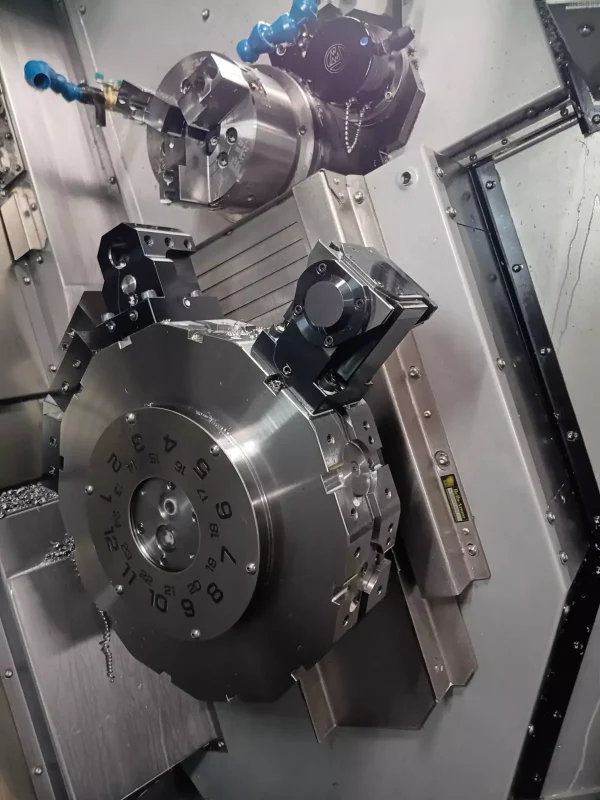

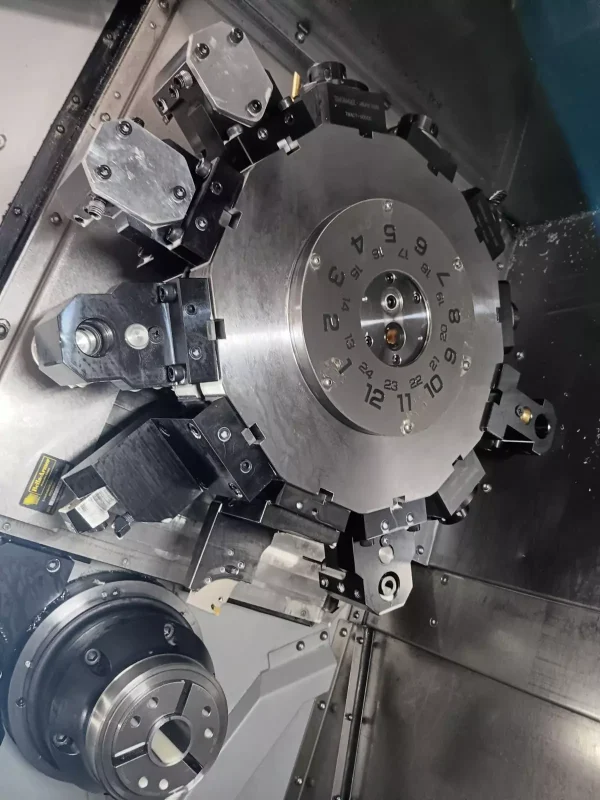

12 Station Independent Live Tool Turret (Main- X/Y/Z Axis)
(1/2 INDEX Turret) (BMT 45) Upper
12 Station Independent Live Tool Turret (Main- X/Z Axis) (1/2
INDEX Turret) (BMT 45) Lower
Hydraulic Chucking Cylinder
Chuck Clamp/Unclamp Sensor Confirmation
C-Axis Indexing
Air Blow Device, Front (Main and Sub Spindle)
Splashguard door with safety interlock
Signal tower light 3 colors (red, yellow, & green)
BASE MACHINE SPECIFICATION
Machine light (Internal)
Coolant system (405 lit.)
Preset Counter
Bar Feeder Interface
Pneumatic Part Ejector Unit (Sub-Spindle)
Unloader Unit
Out Parts Conveyor
Chip Conveyor (Right Side – Belt Type)
4) FACE Milling ER-20 Live Tool Unit
4) Cross Milling ER-20 Live Tool Unit
Spindle AIR PURGE
Tool Pre-Setter (Removable) MARPOSS (MIDA-ARM)
Spindle Orientation
OFFSET FACE Milling Live Tool Unit
OD Tool Holders 3/4″
Boring Tool Holders 3/4″
Cut Off Tool Holder
Tool Pre-Setter (Removable) MARPOSS (MIDA-ARM)
10) Round Hole Bushings
KITAGAWA B-206 3 Jaw Chuck
Spindle Orientation
Fanuc Options:
Direct Draw Dimension Programming
Inch/Metric Conversion
Run Hour and Parts Count
M Code Group Function
Simple Tool Life Management
Helical Interpolation
Made in Japan
2018 Takamaz XYT-51 CNC Turning Center W/ “Y” Live Tooling, Twin Spindle, Dual Turrets and an Iemca Barfeed. Machine is in excellent condition with very low run time. Customer bought machine for a job…ran prototype parts….then didn’t get the job. Head 1 has 2397 hours and head 2 has 1100 hours.
